Start 360°

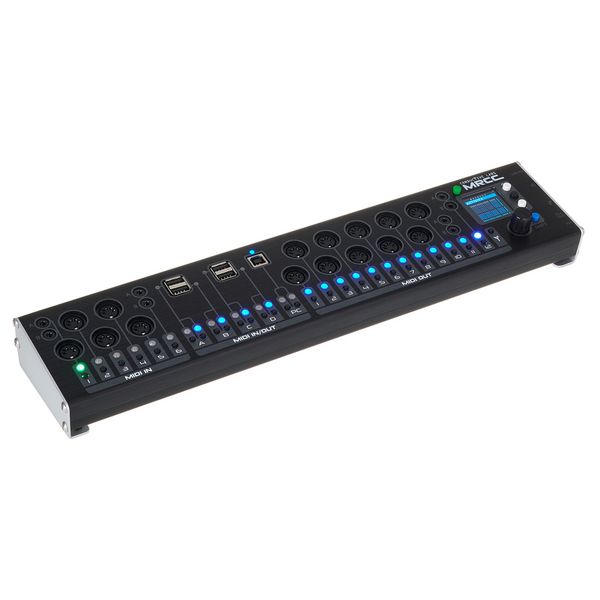

MIDI Router Control Center
- An extensive stand-alone MIDI router, USB host and USB MIDI interface
- Comfortable programming of all settings on the unit possible via buttons, 1.5" OLED display and encoder (no PC required)
- Any connections between all MIDI inputs and outputs possible as well as transpose, create splits and layers, merge, split, map and filter (clock, note, CC, prog change, stop/start/continue)
- MPE support
- 6 Independent arpeggiators
- Internal clock generator
- MIDI message monitor and matrix routing monitor
- 127 Presets can be stored
- Functions as a class-compliant USB MIDI interface
- SysEx support available for MIDI outputs 1-6, USB host ports and PC port
- 6 MIDI inputs (5-pin DIN and 3.5 mm TRS A/B)
- 12 MIDI outputs (5-pin DIN and 3.5 mm TRS A/B)
- 4 USB host ports (type A) for keyboards, sequencers, controllers and other devices
- 1 PC port (type B) with 12 virtual MIDI in/out ports
- Analogue clock output (3.5 mm jack)
- MRCC remote connection

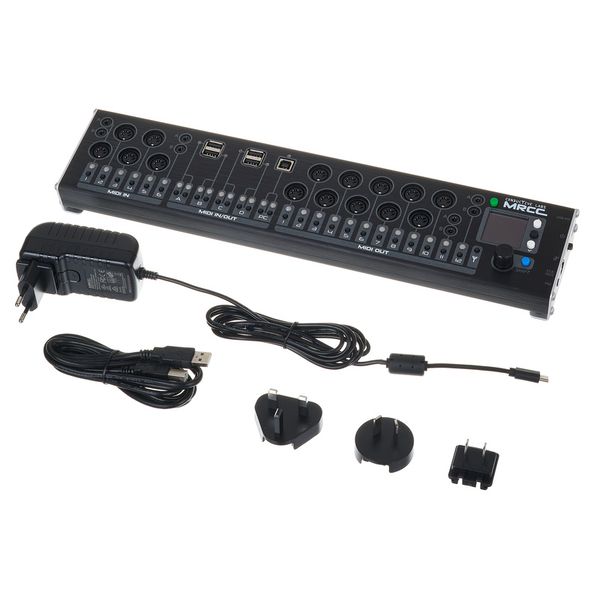

- Power supply possible via USB-C port (external power supply included)
- Dimensions (W x D x H): 387 x 88.9 x 38.1 mm
- Suitable accessories (not included in the delivery): MRCC 2U Rack Ears (art. 535429), MRCC Remote 7 (art. 535430)
available since
February 2022
Item number
535428
sales unit
1 piece(s)
Amount Of Inputs
6
Amount Of Outputs
12
SMPTE Timecode
No
Serial Port
No
Midi Thru
1
MIDI Merge
1
MIDI Controller
1
MIDI Converter / Interface
1
