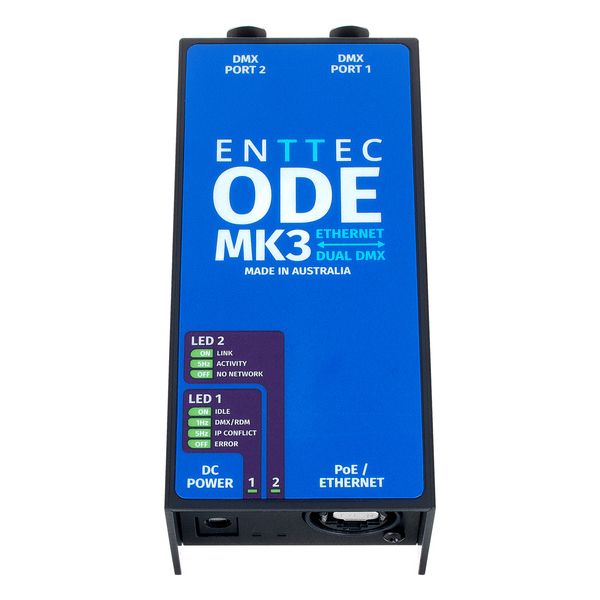

Enttec ODE Mk3

Power Over Ethernet DMX Interface

  • Two universal bi-directional DMX / E1.20 RDM sockets XLR5
  • PoE (Power over Ethernet) RJ45 port supports IEEE 802.3af (10/100 Mbps) and an optional DC 12-24v power input
  • Secure 'EtherCon' connections
  • Supports RDM over Art-Net & RDM (E1, 20)
  • Support for DMX -> Art-Net (broadcast or unicast) / DMX -> ESP (broadcast or unicast) / DMX -> sACN (multicast or unicast)
  • HTP/LTP merging support for up to 2 DMX sources
  • Configurable DMX output refresh rate
  • Intuitive device configuration and updates via a built-in web interface
  • 'Current Port Buffer' allows the display of live DMX values
  • Contents of delivery: ODE Mk3, ethernet cable, power supply unit with AU/EU/UK/US adapters

Technical Data:

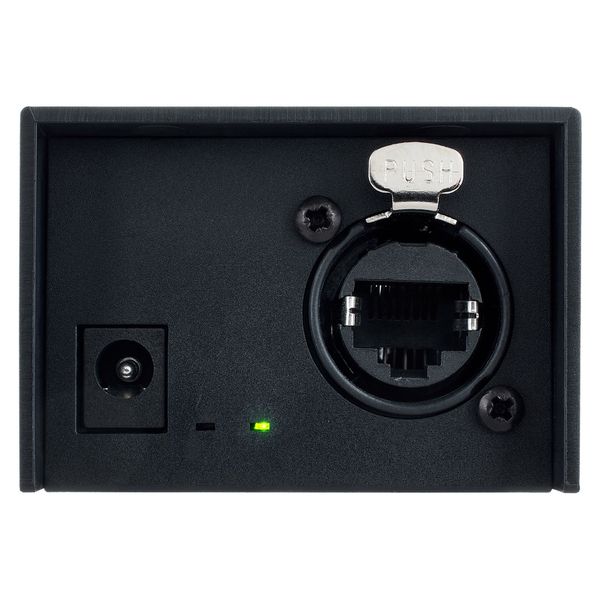

  • Connections: 1x EtherCon port (RJ45)

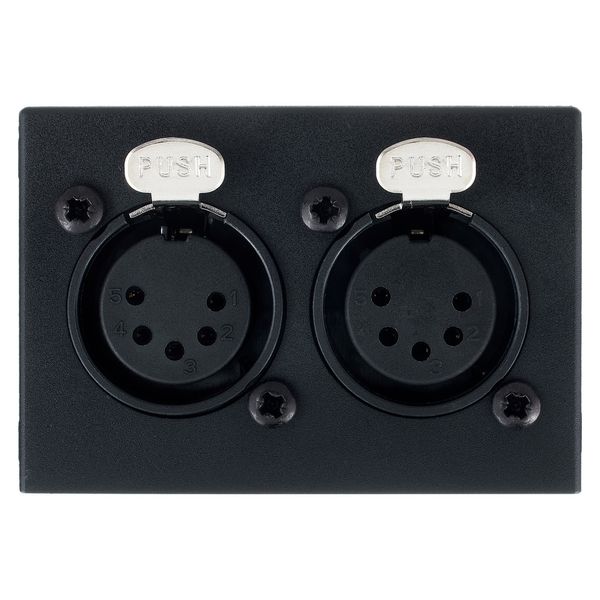

  • 2 x Bidirectional DMX (Female XLR5)
  • 1 x Power input (DC Jack)
  • eDMX Protocols: Art-Net, Art-RDM, sACN, ESP
  • DMX protocols: USITT DMX512-A, ANSI E1.20 RDM
  • DMX and RDM timing: Break time 300 ms
  • Mark after break (MAB): 15 ms
  • Max. channels: 2 Channels (1024ch)
  • Max. refresh rate: 44 FPS
  • Art-Net merging: 2 Sources
  • Configuration software: Web browser
  • Firmware updates: Web browser
  • Input voltage: 12V to 24V DC
  • Max. current consumption: 580 mA
  • Max. power consumption: 7 W
  • Power over ethernet (PoE): IEEE 802.3af
  • Housing material: ABS plastic
  • IP protection rating: IP20
  • Dimensions: 129 x 58 x 40 mm
  • Weight: 0.1 kg
available since September 2022
Item number 551522
sales unit 1 piece(s)
Type Ethernet-Interface
Type of construction Desktop
Connection for PC/Ethernet RJ45
Universes (Outputs) 2
DMX-Output 5-pole XLR female
DMX-Input through Output
RDM-capable Yes
Internal memory No
