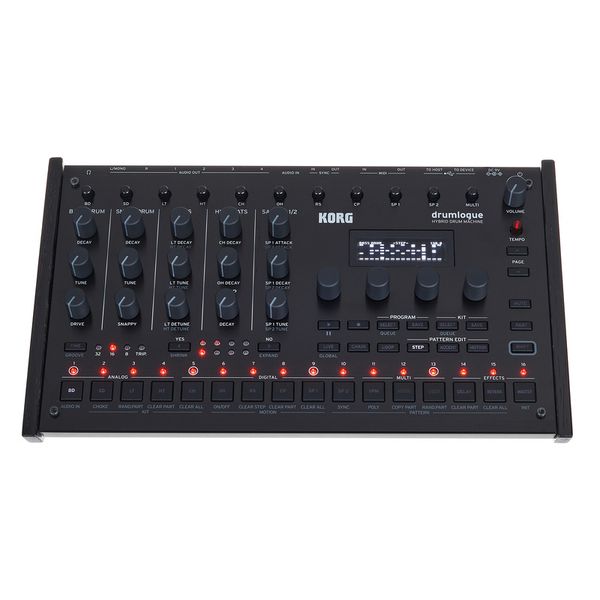

Hybrid Drum Machine
- Combines analogue, digital and sample-based sound generation
- 4 Analogue parts (kick, snare, hi tom, lo tom)
- 6 Sample-based parts (max. 256 samples can be loaded, 128 installed ex works)
- Multi-engine part with VPM synthesis
- Noise generator and 24 slots for custom synthesizer ("Nano" by Sinevibes pre-installed)
- 15 Knobs for direct access to parameters
- Volume control for all 11 parts
- Sequencer with max. 64 steps
- Pattern chaining
- Motion, accent and random functions
- Memory for 128 programmes, patterns and drum kits
- 3 Effect blocks: Reverb, Delay and Master
- OLED display and 4 encoders
- Stereo output and 4 assignable individual outputs (6.3 mm jack)
- Stereo headphone output (6.3 mm jack)
- Audio input for external signals (3.5 mm jack)
- MIDI in/out
- Sync input and output (3.5 mm jack)
- USB-A port for external MIDI controllers
- USB-B port for computer connection

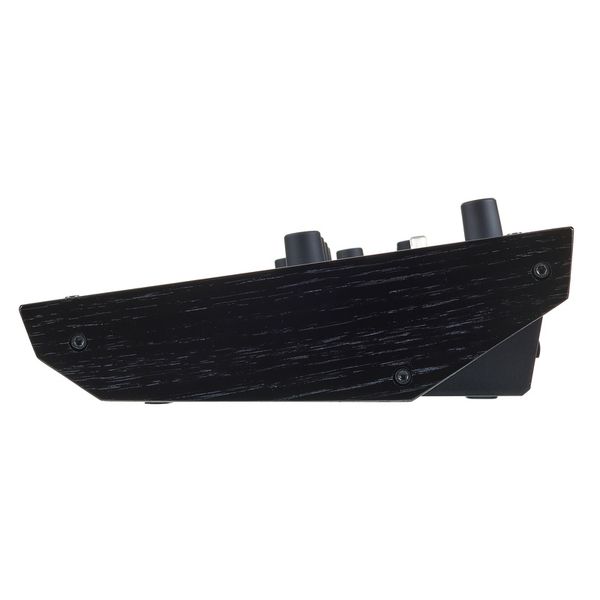

- Aluminium control panel and wooden side panels
- Dimensions (W x D x H): 317 x 189 x 73 mm
- Weight: 1.4 kg
- Includes external power supply (Korg KA-350) and Quick Start Guide
available since
January 2023
Item number
551673
sales unit
1 piece(s)
Sound Synthesis
Analog, Samplebased, Synthese
Pads
16
Effects
Yes
Bass
No
Display
Yes
MIDI interface
1x In, 1x Out
Number of analog outputs
6
Headphone Connector
Yes
Mains Operation
Yes
Battery Operation
No
Footswitch connection
0
Extras
24 Slots for Custom Synthesizer
Shape
Desktop
