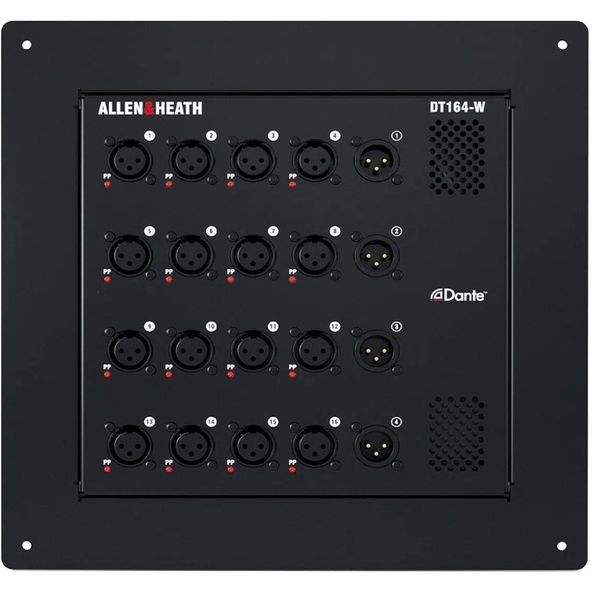

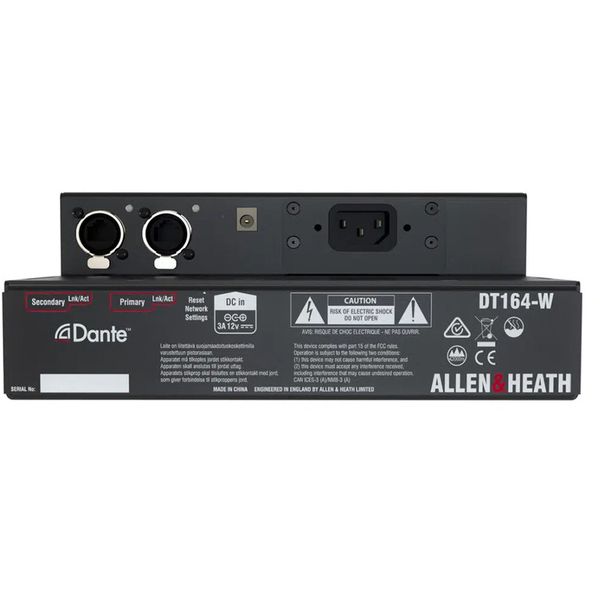

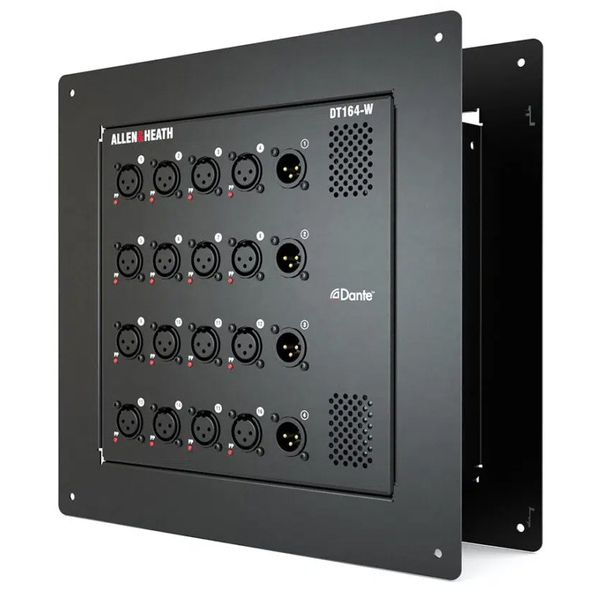

Allen & Heath DT164 W Dante

Allen & Heath DT164 W Dante - fixed installation Dante I/O expander with superior audio quality and flexible connection options; Dante audio expander (96 kHz / 48 kHz); for fixed installation for wall or floor mounting; compatible with dLive, Avantis, SQ, and AHM-64; AES67 compatible; Dante Domain Manager ready; plug-and-play; redundancy and switched mode; control and firmware updates via mixing console or DT Preamp Control software; robust steel housing; power supply 100–230 V AC or 12 V DC for redundancy; Inputs: 16x Mic/Line XLR inputs with +48 V phantom power, status LEDs, gain and pad control; Outputs: 4x XLR line outputs, balanced; 2x EtherCon Dante ports for audio and control data, daisy chaining and redundancy; Dimensions: (WxHxD): 210 x 300 x 80 mm; Weight 3.6 kg

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since July 2023
Item number 570787
Sales Unit 1 piece(s)
Extension Card for Allen & Heath
Type Dante

$2,745

The shipping costs are calculated on the checkout page.

Sales Rank

in Digital Mixer Expansion Cards
