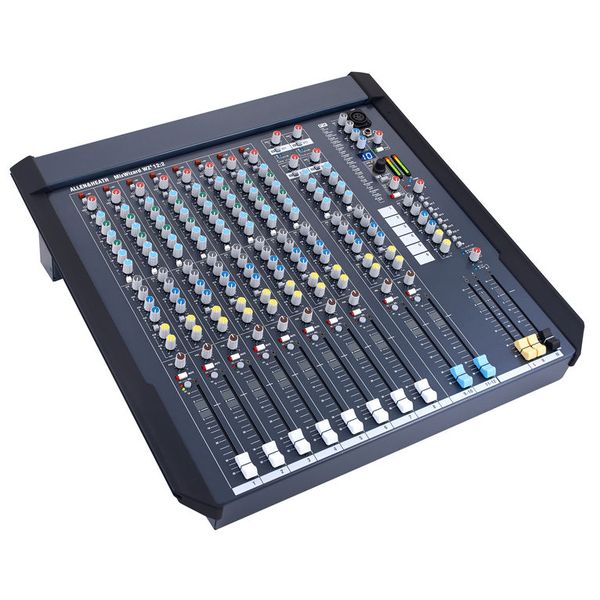

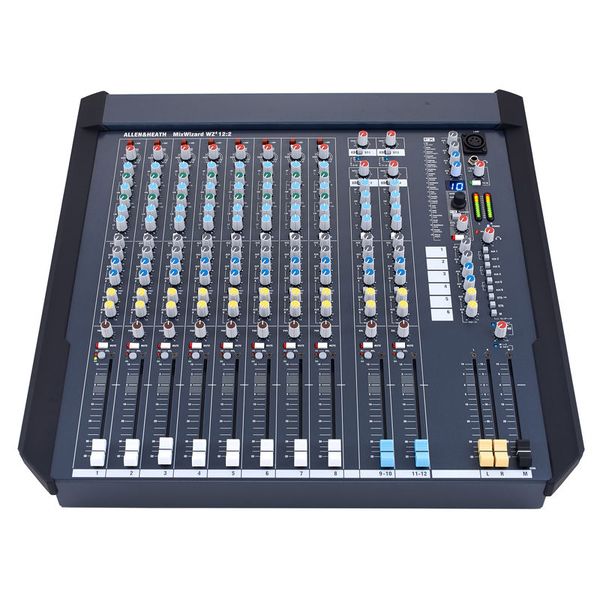

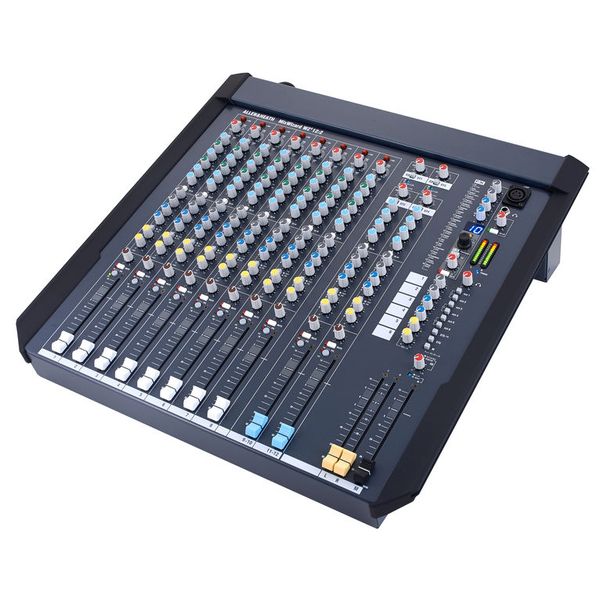

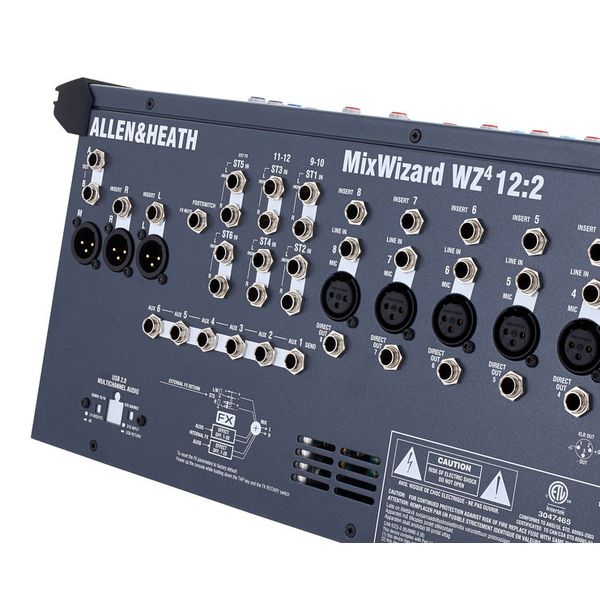

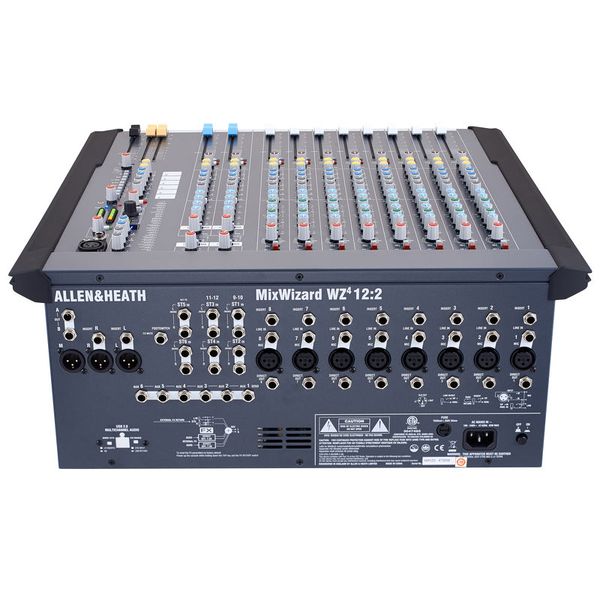

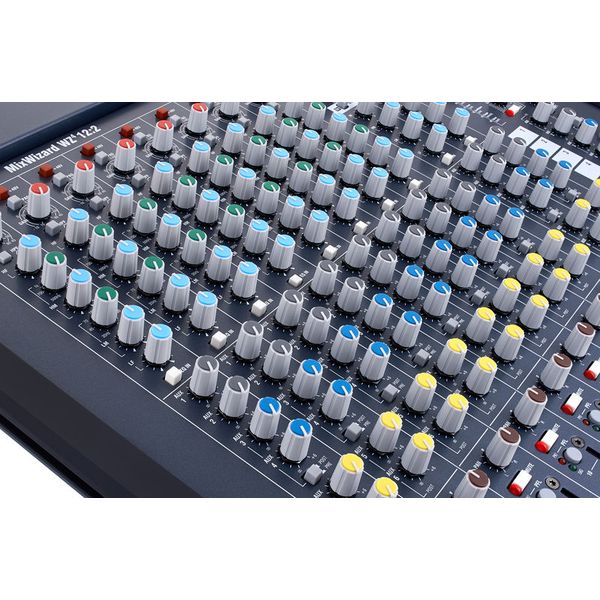

Allen & Heath WZ4 12:2
19: Mixer
- 8 mono inputs with insert, direct out, pad, 80 Hz high pass, 4-band EQ with parametric mids, 48 V phantom power, PFL, mute and 6 aux sends (1 - 4 switchable pre/post, 5 and 6 post)
- Aux 5 and 6 assignable as internal effects send
- 2 Stereo Aux returns
- Headphone output
- Master insert
- Master Out via XLR
- A/B Out via jack
- 2 digital effects processors (2x16 programmes)
- FX bypass switchable via footswitch
- MIDI In

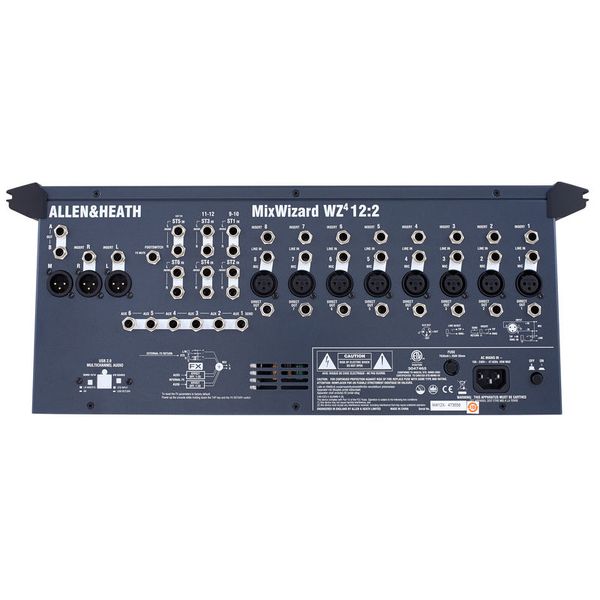

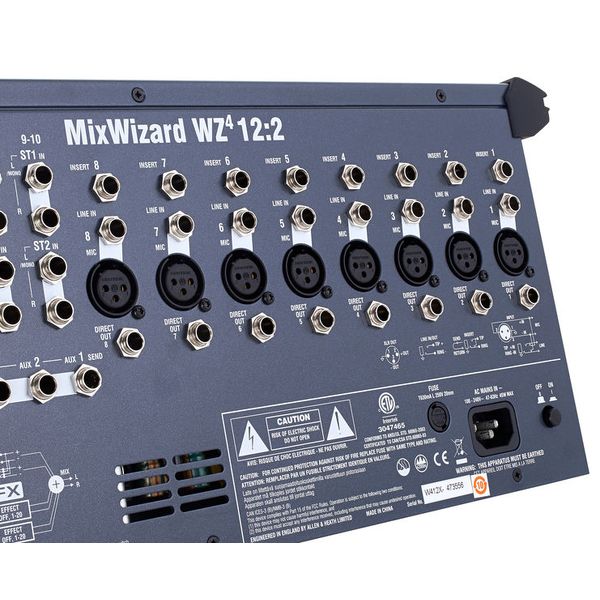

- Rotatable connector panel
- Internal power supply unit
- XLR 4-pin lamp connection
- Installation depth: 45 cm
- Weight. 10.0 kg
- Compatible USB recording card: Art.319407 (not included)
-
Available since July 2013
-
Item number 319405
-
Sales Unit 1 piece(s)
-
Parallel usable Channels 12
-
Mic Ins 8
-
Stereo Ins 6
-
Master Out XLR
-
Number of Pre Aux max. 4
-
PC Interface No
-
Multitrack Recording No
-
USB/SD Direct Record No
-
PFL Yes
-
Effect Processor 2
-
USB Play No
-
Bluetooth Play No
-
Foot Switch Switch
-
Matrix Mixer No
-
Zones 0
-
19" Rackmount Yes
-
Height 194 mm
-
Width 607 mm
-
Depth 530 mm
-
Weight 11 kg
-
simultaneously used channels 12
-
Mic-In 8
-
Mono Line Ins 8
-
Mono Line-in 8
-
Stereo-In 6
-
Hi-Z Input 0
-
Phantom Power 48 V
-
Aux Ways 6
-
Pre Aux max. 4
-
PC-Interface No
-
Audio Interface Input 0
-
Audio Interface Output 0
-
Low Cut Yes
-
Insert Yes
-
Direct Out Yes
-
Parametric Yes
-
Panorama Yes
-
Racklight Connector XLR 4-pol
-
Lamp Connector XLR4
-
Foot switch Switch
-
Rackmount Yes
-
Case Thomann No
-
Case Thon 161855
-
Bag No
-
HE Units 11,2 U
-
