Analogue Synthesizer
- 2022 Edition
- 44-Key keyboard
- Pitch and modulation wheel
- Sound sources: 3 oscillators, noise generator (pink / white) and external audio input
- Oscillators: triangle, triangle sawtooth (oscillator-1, oscillator-2), inverted sawtooth (oscillator-3), sawtooth, square, wide pulse and narrow pulse
- LFO waveform: triangle, square
- Ladder filter

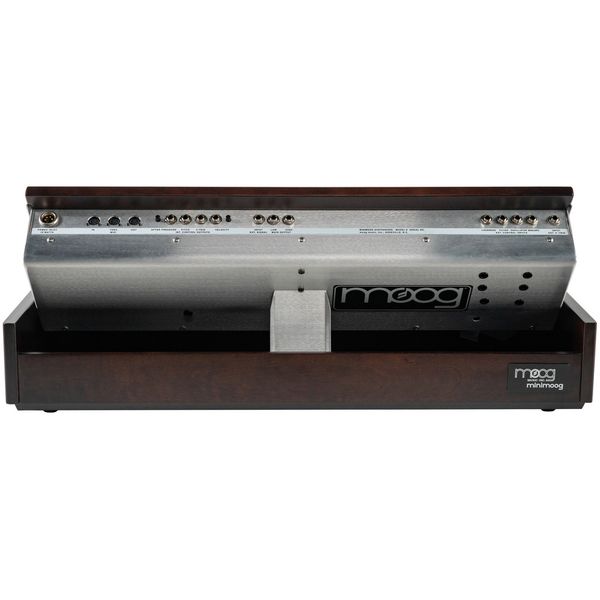

- 2 Line outputs: 6.3 mm jack
- 1 Line input: 6.3 mm jack
- 5V trigger input: 6.3 mm jack
- After Pressure CV output: 6.3 mm jack
- Pitch CV output: 6.3 mm jack
- Gate output: 6.3 mm jack
- Velocity output: 6.3 mm jack
- Loudness input: 6.3 mm jack
- Filter cutoff input: 6.3 mm jack
- Oscillator pitch input: 6.3 mm jack
- Modulation source input: 6.3 mm jack
- MIDI In/Out/Thru
- Dimensions (W x H x D): approx. 727 x 143 x 44 mm
- Weight: 14.5 kg
available since
November 2022
Item number
553838
sales unit
1 piece(s)
Number Of Keys
44
Touch-Sensitive
Yes
Aftertouch
Yes
Split Zones
No
Modulation Wheel
Yes
Number of simultaneous Voices
1
Sound Engine
Analogue
MIDI interface
1x In, 1x Out, 1x Thru
Storage Medium
None
USB-port
No
Effects
None
Arpeggiator
No
Number of Analog Outputs
2
Digital Output
No
Display
No
Pedal Connections
None
Dimensions
727 x 143 x 44 mm
Weight
14,5 kg
