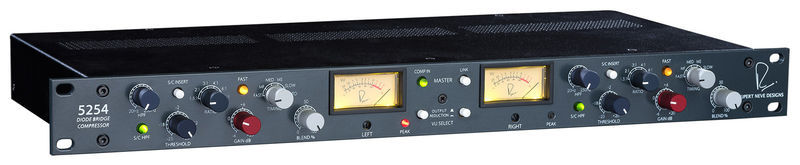

Rupert Neve Designs 5254
2-Channel Diode Bridge Compressor
- Custom transformers and Class A line amplifiers
- Stereo link or 2x mono
- Integrated parallel compression
- Input impedance: 10 kOhm
- Output impedance: 40 ohms
- Maximum input level (+ 4dBu selected): +26.7 dBu
- Maximum output level: +26.7 dBu
- Noise (22 Hz - 22 kHz BW): -104 dBu
- Frequency response (10 Hz to 120 kHz): +/- 0.25 dB
- THD + N @ 1 kHz @ maximum level (22 Hz - 22 kHz BW): 0.0008%
- Compressor Noise Specifications: Noise at 0dB Make-Up Gain (22 Hz - 22 kHz BW): -84.5 dBu, Noise at + 20dB Make-Up Gain (22 Hz - 22 kHz BW): -64.5 dBu
- Gridded control elements with 31 levels
- Input / output connectors: XLR
- Sidechain send / return connection: 6.3 mm jack
- Ground lift switch
- Dimensions: 19" 1U
- Weight: approx. 4 kg
