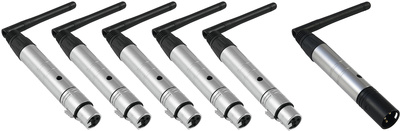

Eurolite QuickDMX Wireless Multi Bundle

Bundle offer comprising

Eurolite QuickDMX Wireless transmitter

  • Compact QuickDMX Wireless Transmitter, 2.4 GHz
  • DMX wireless transmitter in miniature format for the wireless transmission of up to 512 DMX channels
  • User friendly 3-pin XLR (male) connector with swivel antenna
  • Wireless DMX eliminates the need for complex cabling between DMX controllers and DMX-controlled devices in lighting setups
  • Due to GFSK modulation with 78 channels, interference-free operation is also possible alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. WLAN and Bluetooth)
  • Operating range of up to 400 m
  • From one up to 512 QuickDMX receivers can be operated per transmitter
  • A maximum of 6 transmitters can be operated simultaneously, giving a total of 3072 DMX channels that can be controlled
  • Plug & Play: Quick and easy setup with one operating button for connecting / disconnecting QuickDMX receivers
  • LED function display
  • Powered via included power supply

Technical specifications:

  • 2.4 GHz ISM Band - No license is required and no charges are incurred when used anywhere in the world
  • Power supply: 100 - 240 V AC, 50 / 60 Hz via included power supply
  • Wireless transmission in the 2.4 GHz band (ISM)
  • 78 Channels
  • Modulation: GFSK
  • Operating range: 400 m (with line-of-sight)
  • DMX connector: 3-Pin XLR
  • DMX channels: 1 Universe (512 channels)
  • Dimensions with antenna (L x W x H): 212 x 18 x 18 mm
  • Weight: 80 g

5x Eurolite QuickDMX Wireless receiver

  • Compact 2.4 GHz QuickDMX Wireless Receiver
  • DMX radio receiver in miniature format for wireless transmission of up to 512 DMX channels
  • User friendly 3-pin XLR connector (female) with swivel antenna
  • Wireless DMX eliminates the need for complex cabling between DMX controllers and DMX-controlled devices in lighting setups
  • Due to GFSK modulation with 78 channels, interference-free operation is also possible alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. WLAN and Bluetooth)
  • Operating range of up to 400 m
  • From one up to 512 QuickDMX receivers can be operated per transmitter
  • Plug & Play: Quick and easy setup with one operating button for connecting / disconnecting QuickDMX receivers
  • LED function display
  • Powered via included power supply

Technical specifications:

  • 2.4 GHz ISM Band - No license is required and no charges are incurred when used anywhere in the world
  • Power supply: 100 - 240 V AC, 50 / 60 Hz via included power supply
  • Wireless transmission in the 2.4 GHz band (ISM)
  • 78 Channels
  • Modulation: GFSK
  • Operating range: 400 m (with line-of-sight)
  • DMX connector: 3-Pin XLR (female)
  • DMX channels: 1 Universe (512 channels)
  • Dimensions with antenna (L x W x H): 212 x 18 x 18 mm
  • Weight: 80 g
$300 €252.59
The shipping costs are calculated on the checkout page.

The price in USD is a guideline price only!

Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
