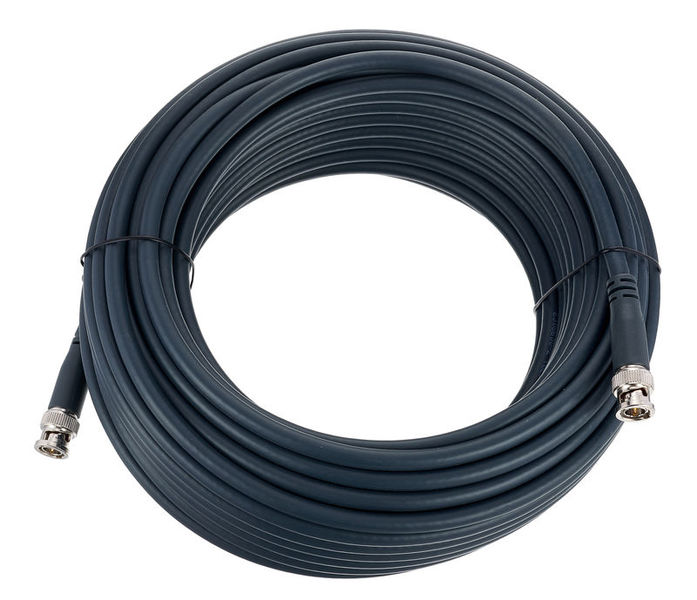

Kramer C-BM/BM-75 Cable 22.9m
3G HD-SDI BNC Coaxial Cable
- Length: 22.9 m
- Made from a high-performance RG-6 coaxial cable with 75 Ohm BNC plugs at both ends
- Inner conductor: 18 AWG solid copper wire
- Dielectric: Foam skin
- Shielding: (A) 61% aluminium wire braid 34 AWG, (B) double foil / Mylar with 25% overlap
- Outer sheath: PVC
- Colour: Dark grey
- Inner conductor diameter: 1.0 mm
- Diameter of dielectric: 4.6 mm
- Outer diameter: 7.0 mm
- Impedance: 75 Ohm
- Ohmic resistance: 21.8 Ohms / km
- Capacitance: 53.1 pF / m
- Tested up to 3G
