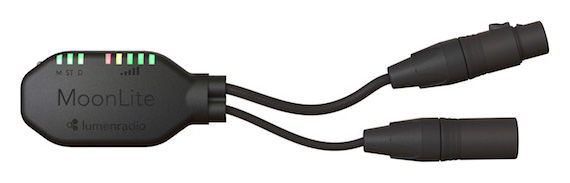

Lumenradio Moonlite


Wireless DMX/RDM transmitter / receiver for 512 channels

  • Based on reliable CRMX technology
  • Integrated, powerful rechargeable battery
  • Bluetooth connectivity
  • Includes features such as Bluetooth, wireless firmware updates, improved frequency spectrum analysis for even more stable data transmission through smart error monitoring, as well as greatly reduced RF power and dynamic transmit power adjustment
  • Can communicate via Bluetooth connectivity directly with lighting control apps installed on tablets or mobile phones without the need for additional hardware - ideally with the CRMX Toolbox app developed in-house

Technical data:

  • Frequency band: 2.4 GHz & Bluetooth
  • Adaptive frequency hopping
  • Transmit / receive power: 10 / 50 / 100 / 300 mW (selectable)
  • Max. radio range: approx. 500 m
  • W-DMX compatible: in receiver mode
  • Protocol: DMX 512 A (RDM)
  • DMX 512 channels: 512 (1 universe)
  • DMX connection: 5-pin XLR in/output
  • Power supply: 5 V DC
  • Power consumption: 500 mA
  • USB charging socket
  • Dimensions (W x D x H): 110 x 44 x 125 mm
  • Weight: 0.7 kg
available since February 2021
Item number 512811
sales unit 1 piece(s)
The shipping costs are calculated on the checkout page.
In stock
In stock

This item is in stock and can be dispatched immediately.

Standard Delivery Times
great and compact
st james 06.09.2022
Easy to setup and the battery is a great feature - saved a show when someone plugged out my FOH power.
