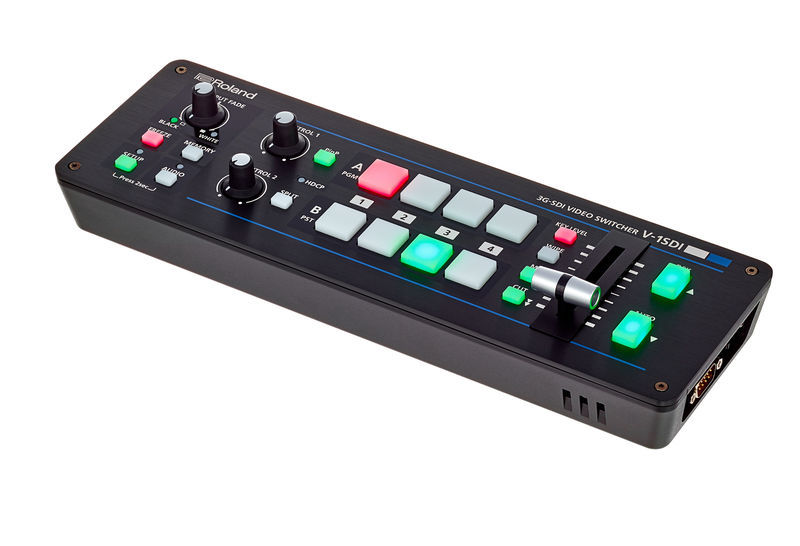

Roland V-1 SDI

Video Switcher
- Support for SDI and HDMI cameras, smartphones, tablets and PCs etc.
- Easy to use
- Supports up to Full HD 1080p
- 3x 3G-SDI and 2x HDMI inputs
- 2x 3G-SDI and 1x HDMI output
- Quad multi-viewer with source marking and audio leveling
- Composition effects including Downstream Keyer, picture-in-picture etc.
- 14-Channel audio mixer
- Software control with V-1SDI RCS application for Mac and PC and remote control via RS-232 port
- Video editing: 4: 2: 2 (Y / Pb / Pr), 8-bit
- Input connections: SDI Input 1-3: BNC x 3
- HDMI input 3-4: Type (19-pin) x 2
- Outputs: SDI Out PGM: BNC x 1
- SDI Out PVW: BNC x 1, HDMI, Multi-View: Type (19 pin) x 1
- Power supply: AC adapter
- Power consumption: 25 W
- Dimensions (W x D x H): 313 x 108 x 59 mm
- Weight: 1.2 kg
- Optional transport bag: Art.456480 (not included)
Further Information
Streaming via USB | No |
---|
test results:
