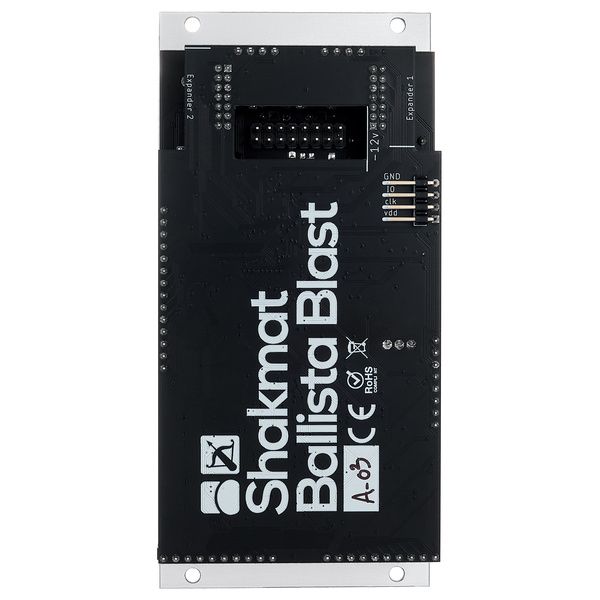

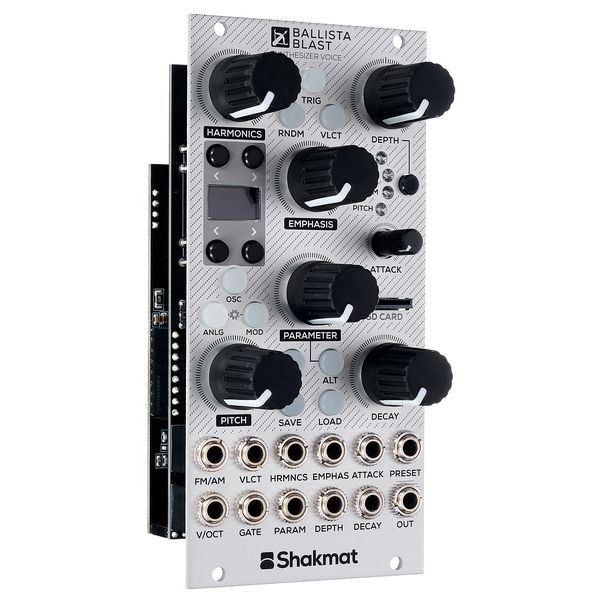

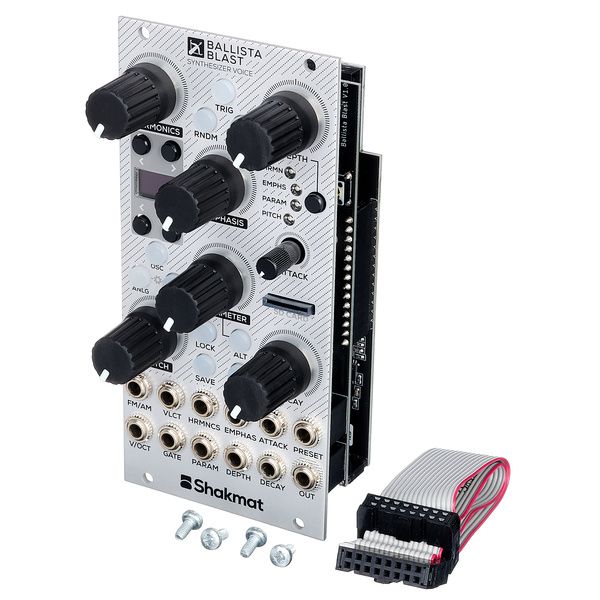

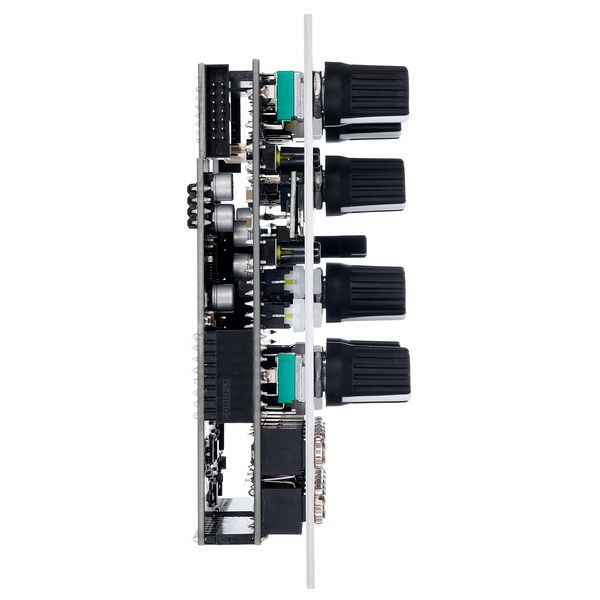

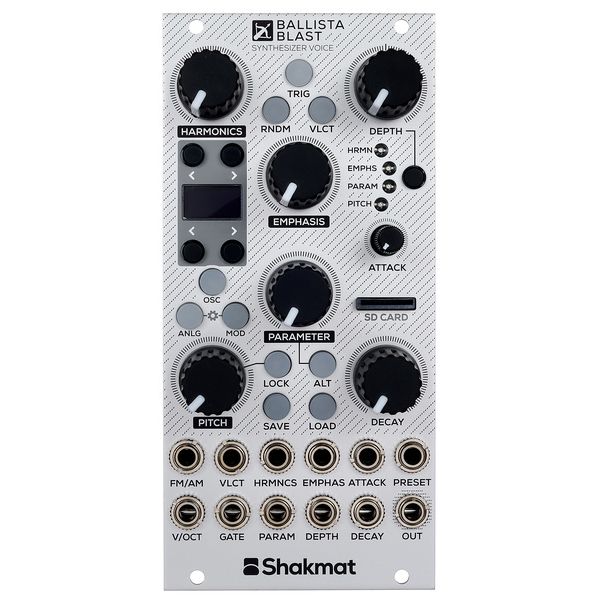

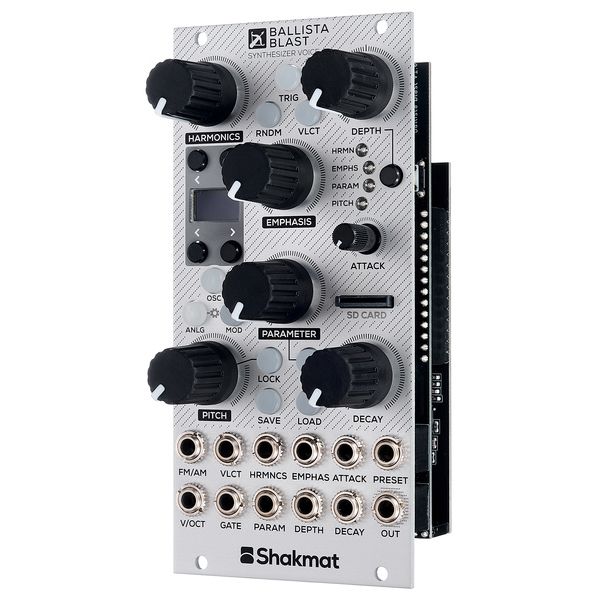

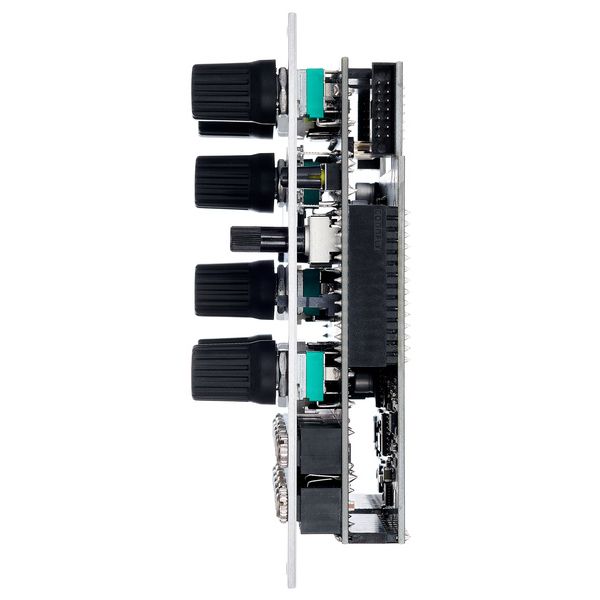

Shakmat Modular Ballista Blast
Shakmat Modular Ballista Blast; eurorack module; hybrid synthesizer voice with digital oscillator core (16bit / 48kHz) and analog signal path; three synthesis engines: Classic, Wavetable and FM; wavetable engine with 32 wavetables of 8 waves each, including user import via microSD; FM engine with 7 algorithms; four main controls: Harmonics, Emphasis, Parameter and Pitch; built-in assignable envelope with Attack/Decay and AR, AD, ASR and Loop modes; assignable modulation sources: Envelope, Gate-triggered Randomizer and Velocity; analog filter types: 2-pole low-pass, band-pass and high-pass plus 4-pole low-pass; VCA/LPG modes: Envelope, Gate and Drone; two distortion types; display for menu navigation and preset management; memory for 256 presets; microSD slot for firmware updates, presets and user wavetables; expandable with up to two optional Ballista Blast Expander; CV inputs for V/oct, Harmonics, Emphasis, Parameter, Pitch, Attack, Decay, preset selection and one freely assignable CV input; gate and velocity input (0 – 5V); mono audio output; power consumption: 135mA (+12V) / 45mA (-12V); width: 12HP; depth: 29mm
-
Available since April 2026
-
Item number 642734
-
Sales Unit 1 piece(s)
-
Width 12 TE / HP
