the t.bone freeU Twin PT 863 B-Stock

B-Stock with Full Warranty

Slight traces of use

2-Channel UHF Wireless System

  • With bodypack transmitter and guitar cable for instrument applications
  • Frequency band: 863 - 865 MHz
  • Frequency range: 60 - 17,000 Hz
  • 4 Preprogrammed frequency groups, each with 4 channels
  • Auto squelch
  • Frequency scanning at the receiver
  • Adjustable AF out
  • 10 mW transmitter power
  • Infrared transmission setting from the receiver to the to ransmitter
  • Pilot tone
  • 25 KHz Frequency steps
  • Modulation type F3E
  • LC-Display
  • 2x BNC Connection for antennas
  • 2x XLR Output and 1x jack output
  • Operation with 12V 0.5A DC power supply (+ inside)
  • Bodypack transmitter in plastic housing
  • LC-Display
  • Powered by 2x AA batteries
  • 9.5"/ 1U housing
  • Includes guitar cable, antennas, EU power supply and rack kit for 1U receiver installation

Note: When operating this set, we advise against the use of other wireless systems in the same frequency range.

Further Information

Guitar Channels 2
Transmission Format Analog
Frequency 863 MHz – 865 MHz
Transmitter Type Pocket Transmitter
Receiver Type Stationary
Mountable Antenna BNC
Charging System No
Internal Battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
$158 €133.62
The shipping costs are calculated on the checkout page.

The price in USD is a guideline price only!

Only a small number of pieces available
Only a small number of pieces available

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Share This Product
Your Contacts
Phone: +49-9546-9223-35
FAX: +49-9546-9223-24
Phone: +49-9546-9223-20
FAX: +49-9546-9223-24
Online Guides

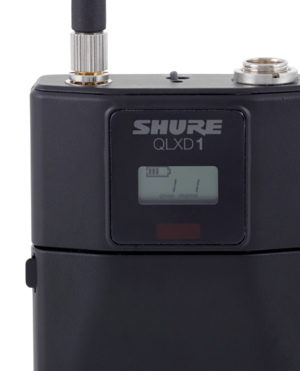

Guitar Wireless Systems
