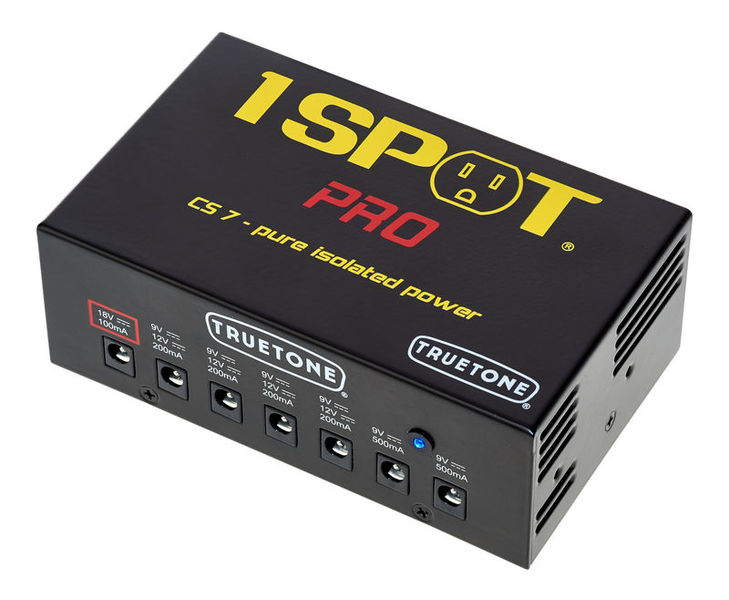

Truetone 1 Spot Pro CS7

Multi Power Supply for Effects Pedals

  • Switching power supply technology
  • Dimensions: (W x D x H) 140 x 86 x 50 mm
  • Weight: 592 g

Connections:

  • Output 1: 18 V DC @ 100 mA (individually insulated)
  • Outputs 2-5: 9/12V DC @ 200 mA (individually insulated)
  • Outputs 6-7: 9V DC @ 500 mA (individually insulated)

Cables included:

  • 4 Pieces 5.5 x 2.1 mm coaxial connector to 5.5 x 2.1 mm coaxial connector, length: 45.7 cm
  • 3 Pieces 5.5 x 2.1 mm coaxial connector to 5.5 x 2.1 mm coaxial connector, length: 30.5 cm
  • 1 Piece reverse polarity adapter from 5.5 x 2.1 mm coaxial connector to 5.5 x 2.1 mm coaxial connector, length: 45.7 cm
  • 1 Piece reverse polarity adapter from 5.5 x 2.1 mm coaxial connector to 5.5 x 2.1 mm coaxial connector, length: 30.5 cm
  • 1 Piece adapter 5.5 x 2.1 mm coaxial connector to 2x 5.5 x 2.1 mm coaxial connector, length: 66 cm
  • 1 Piece adapter 5.5 x 2.1 mm coaxial connector to 5.5 x 2.5 mm coaxial connector

Further Information

DC/AC current DC
Output current in mA 1900 mA
9 V Yes
12 V Yes
18 V Yes
Secondary voltage No
Multi-output power supply Yes

These are other customers' choices:

Customers who looked at this item have bought these:

Truetone 1 Spot Pro CS7
32% bought this exact product
Truetone 1 Spot Pro CS7
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$125 Add to Basket
Harley Benton PowerPlant ISO-2 Pro
11% bought Harley Benton PowerPlant ISO-2 Pro $69
Truetone 1 Spot Pro CS12
10% bought Truetone 1 Spot Pro CS12 $199
Truetone 1 Spot Pro CS6
8% bought Truetone 1 Spot Pro CS6 $149
Cioks DC7
6% bought Cioks DC7 $244
Our most popular Guitar Effect Power Supplies
195 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • quality
Total
quality
Great connection options but has a few issues
darkog, 07.03.2020
I was looking for a PSU for my palmer pedalbay 40 pedalboard. The pedalboard has space underneath where the supply can be mounted.

Pros
- no noise issues
- a lot of connection options for different pedals with different requirements
- Looks really robust and well made

Cons
- power outlet and DC connector layout is bad (see issues mounting it below)
- It is too wide and takes too much space when using the straight DC cables

My pedalboard has reinforcement metal bars below which are around 1cm high. When mounting it the power outlet is not blocked, but the DC connectors are, since they are laid out on the upper side of the PSU in this orientation. flipping the PSU causes the power outlet to be blocked by the reinforcement bars instead...
Another issue is that the DC connectors come with a straight and an angled connector. when using the straight connector in the PSU it takes too much space and again cannot be mounted under my pedalboard.

I think this is a great supply if you use it on top of your board or if your pedalboard has a flat bottom,
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
The best Power Supply unit I’ve ever used
Sound of the Suburbs, 07.09.2020
All of the cheaper pedal power supplies I’ve tried so far have noise issues. This one is pro level, totally quiet. Well worth buying this. Don’t go cheap on your power supplies. I’ve had 2 cheaper units which both gave me ground loop noise. It’s got enough outputs for my pedalboard. I’m very impressed with it. The only thing I would have liked were longer cables. The cables are very short so you may want to think about buying longer cables if you have a bigger pedalboard or want to tie your cables in a tidy way. I use a pedal train Jr which I also bought from Thomann and in order for some of the cables to reach properly you would need to mount the supply right in the centre of the pedalboard and the cables will just about reach, if taking a direct straight line. I want to have my cables tidy so will need to purchase a set of longer cables in order to do this. This is not a problem and not any fault of the manufacturer. Truetone were good enough to supply mounting brackets for the unit which I feel every power supply manufacturer should do this. I advise anyone who wants to have a noise free trouble free pedalboard to get this. Don’t go cheap on your power supply get the best out there right now, get the Truetone CS7 and get it from Thomann. They will look after you as they have always done for me.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Brilliant
SimonS23, 12.02.2021
I have had this power supply for about 2 years and its the champ of all my pedalboard iterations.

I use it to power about 7-9 pedals, depending on my needs. It can power pretty much anything in the standard pedal format, even some high-current draw digital pedals and multi-effects.

Anyone considering investing into good power supply for their pedal rig, just do it! It really brings up all the good stuff, keeps everything you throw at it quiet and keeps working without issues.

My only problem with it is that it is kind of big/tall, so it does not fit to every pedalboard - but on any standard Pedaltrain/Rockboard it will fit beautifully. Also comes with mounting brackets.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
first unit did not work but second is going strong
playingear, 26.02.2019
one star off for the first unit not working well, being sent back and then returning still to have the same issue (1x 500mA socket was not working correctly and the unit would stop powering all pedals when those were connected).
finally got a second unit, which has worked without a problem ever since.
found this to be tricky to get it right but the months of the second unit running fine are making me trust it a bit more. reliability is everything when playing live so i think i can recommend this and beware if it doesnt work it might just be your unit, so get it checked/replaced and you should be alright

they are heavy but i do not think one can scape the weight.
