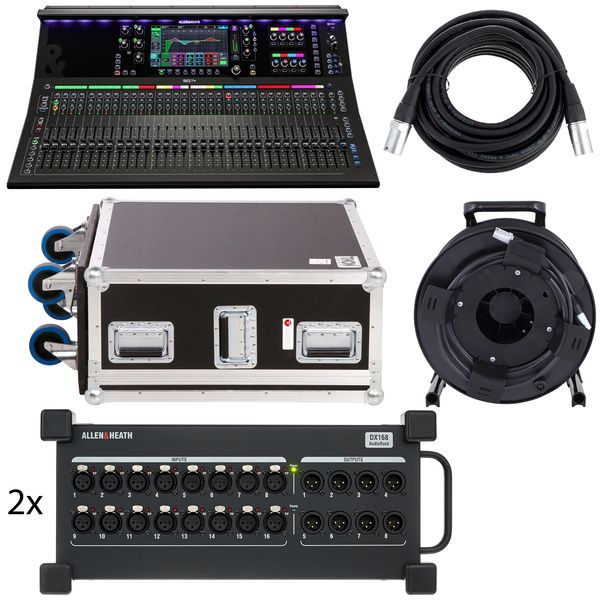

Allen & Heath SQ7+ Stagebox II Bundle

Bundle offer comprising

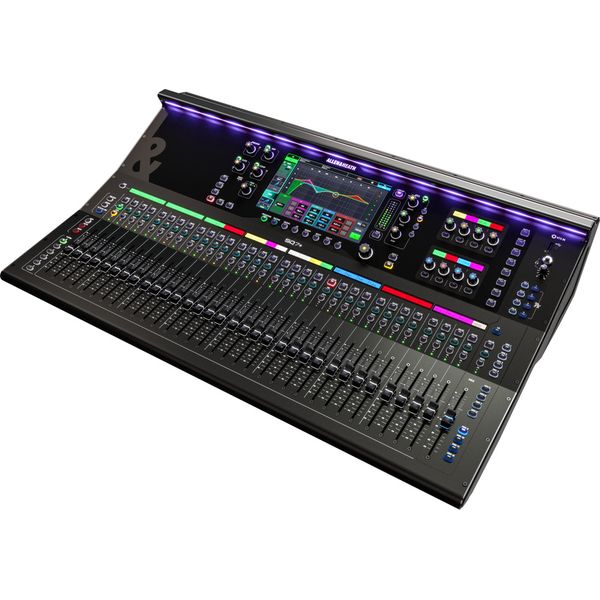

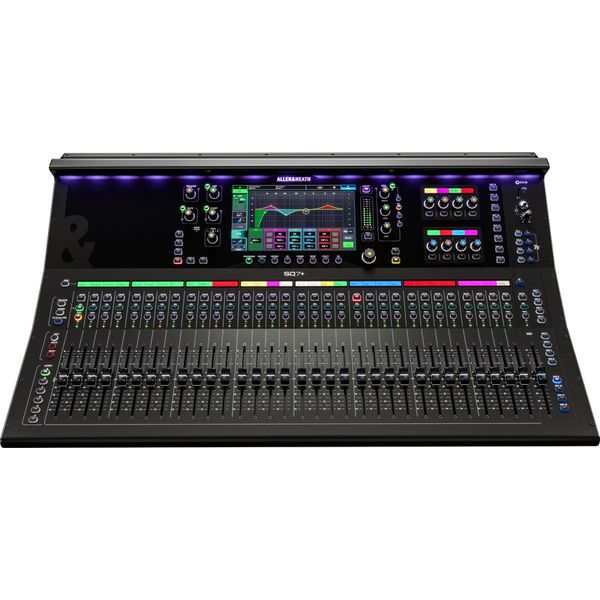

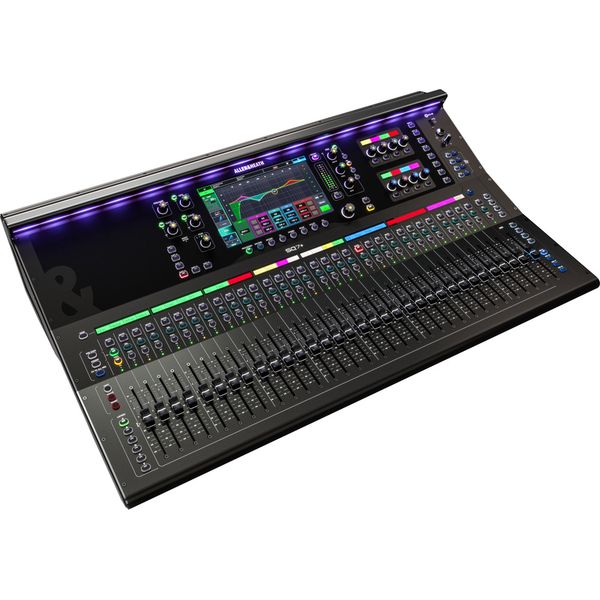

Allen & Heath SQ7+

48-Channel Digital Mixer

• Sample rate: 96 kHz
• XCVI FPGA Core with very low latency (0.7 ms)
• Input channels: 48
• Local inputs:
• Mix buses: 44 (12x mono / stereo group / aux + master, 8x multi-FX, 4x rack Ultra FX, 6x matrix, 1x stereo PAFL)
• 8 DCA- / Mute groups
• 9" touchscreen
• 33 motorised 100 mm fader / 6 layers
• Chromoatic 12-segment LED level meter
• Backlit buttons and encoders
• Channel LCD displays
• 16 Assignable SoftKeys
• 8 assignable soft rotaries
• Optional DEEP Processing allows direct integration into a channel strip without increasing latency
• SLink connector for 128 x 128 Everything I/O
• 64 x 64 I/O port for expansion cards (128 x 128 with SLink card)
• 32 x 32 USB-B-Audio-Interface mit 48/96 kHz, 16/24 Bit
• SQ-Drive USB-A für Stereo / Multichannel Audiorecording / -playback (Stereo @48/96 kHz, 24 Bit / 16 Kanäle @96 kHz, 24 bit / 32 Kanäle @48 kHz, 24 bit)
• Dimensions (W x D x H): 804 x 514.9 x 198.5 mm
• Weight: 18.42 kg
• Suitable dust cover: Art.450923 (not included)
• Suitable case: Art. 499718 (not included)

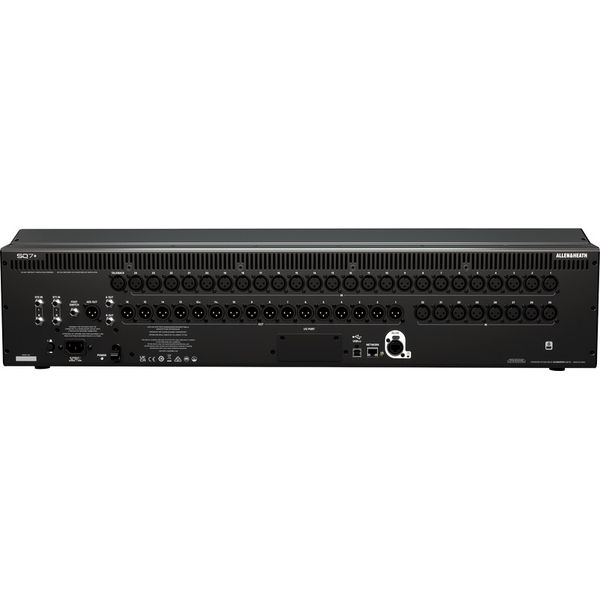

Inputs:

• 32x XLR Mic / Line
• 2x 6.3 TRS jack stereo line
• 1x 3.5 TRS stereo line
• 1x XLR talkback

Output:

• 16x XLR line
• 2x TRS line
• 1x XLR AES3 Stereo Digital
• 1x 6.5 TRS headphone output

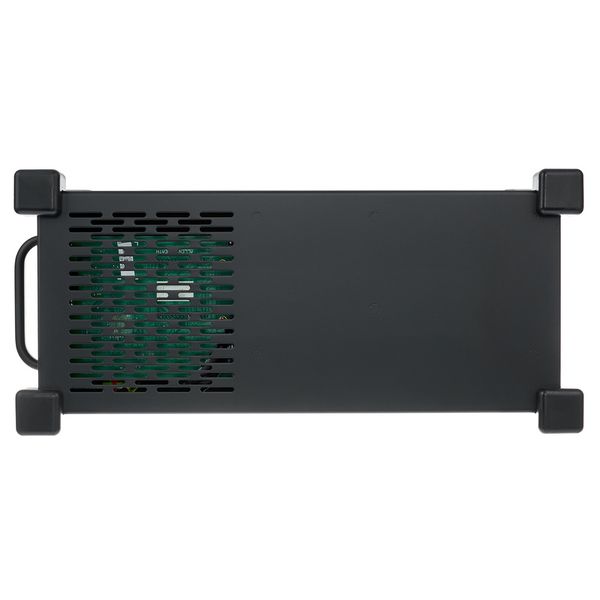

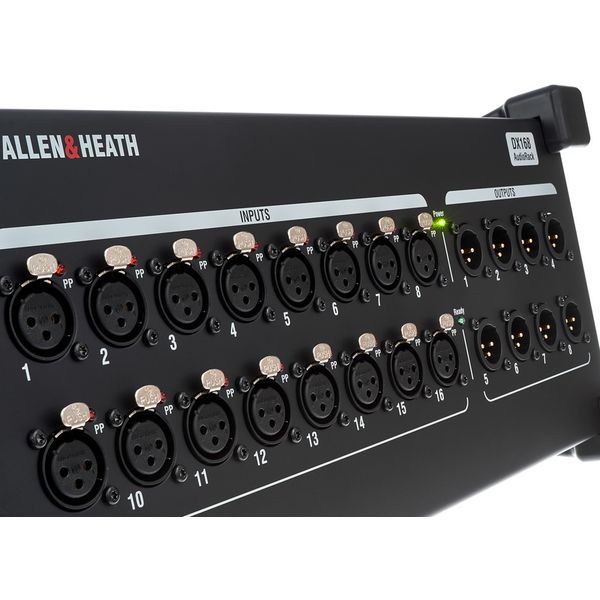

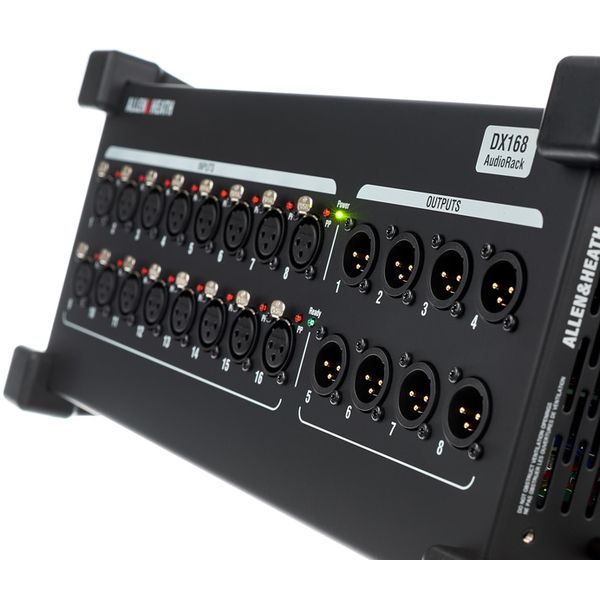

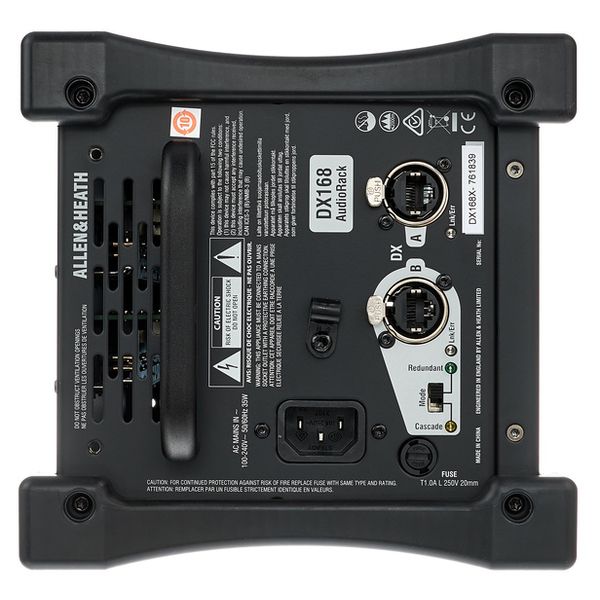

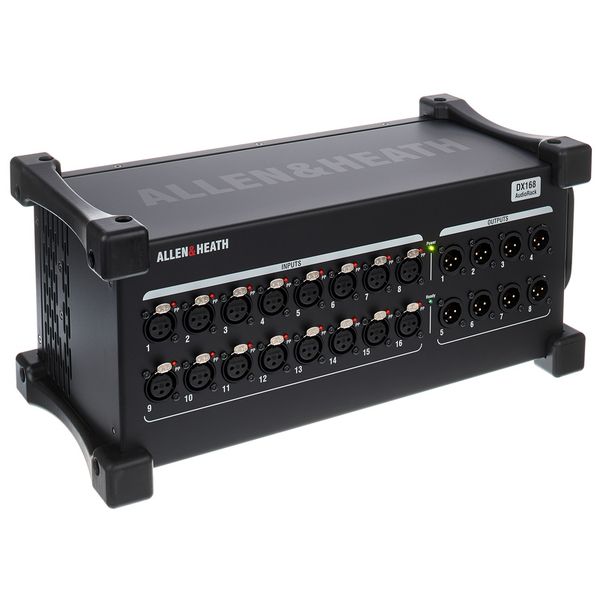

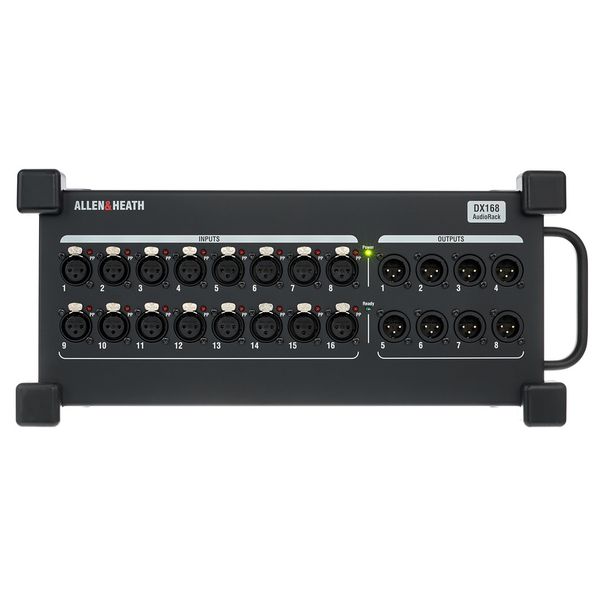

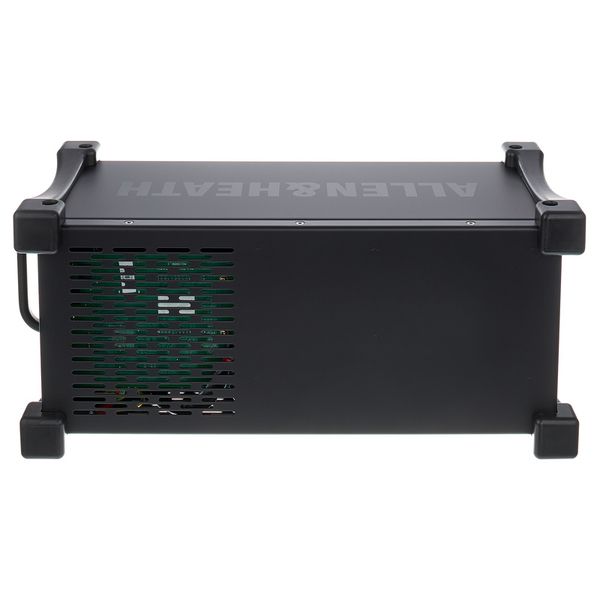

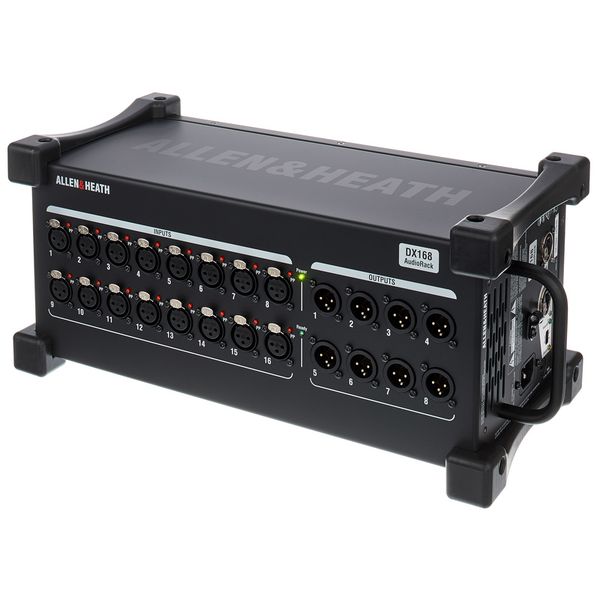

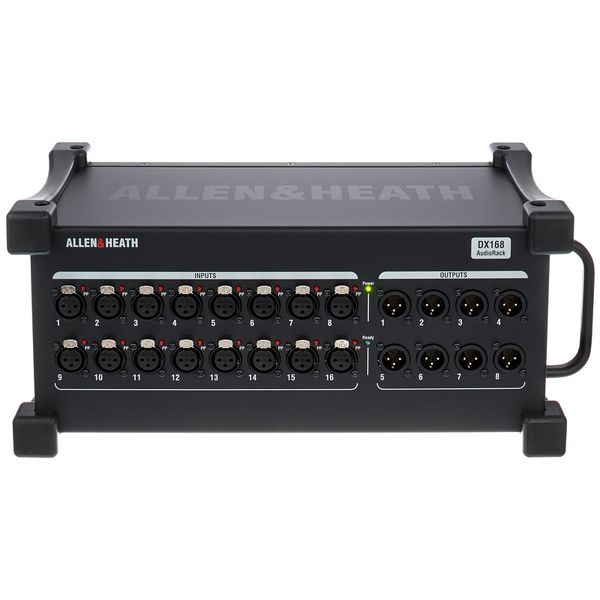

2x Allen & Heath DX168/X

Total depth with bracket: 17 cm

• For dLive S/C Class, SQ, QU 5/6/7 and AHM
• 16 mic / XLR inputs
• Eight XLR line outputs
• Phantom power
• Plug-and-play
• Compatible with CAT5e cables with a length of up to 100 m
• Width: 19"
• Suitable rack kit: Art. 426466 (not included)
• Suitable case: Art. 504879 (not included)

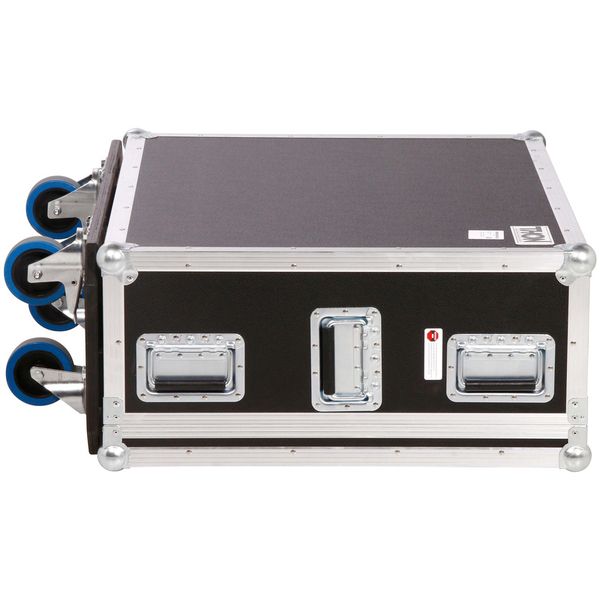

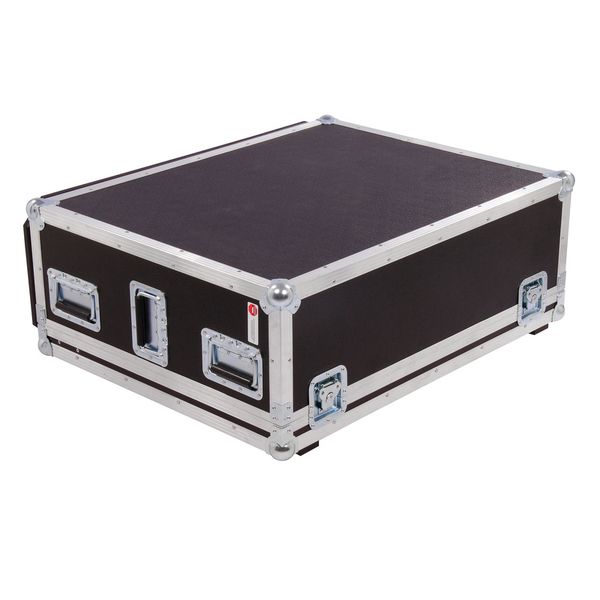

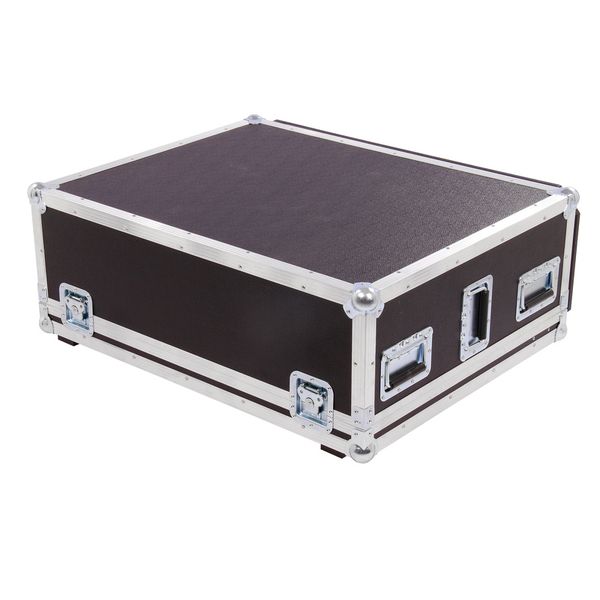

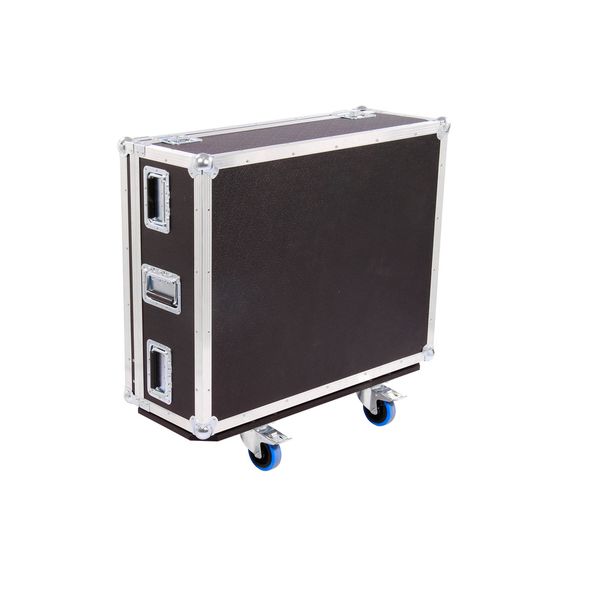

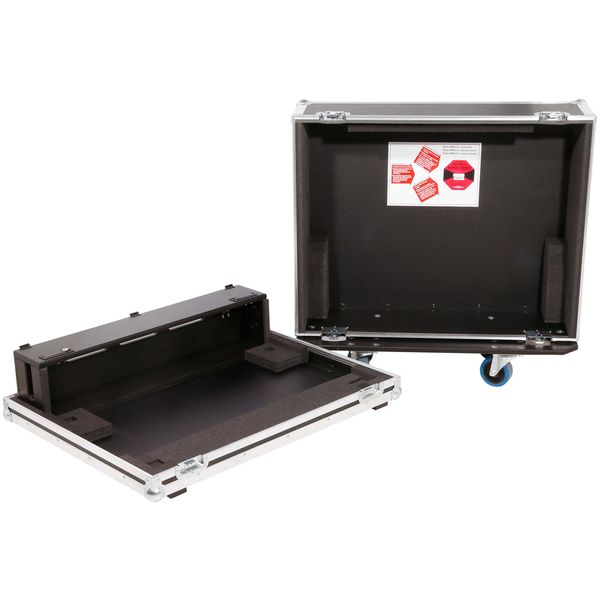

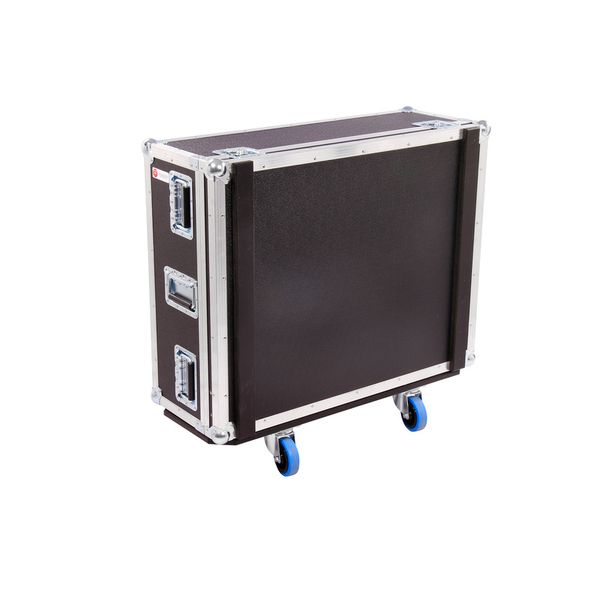

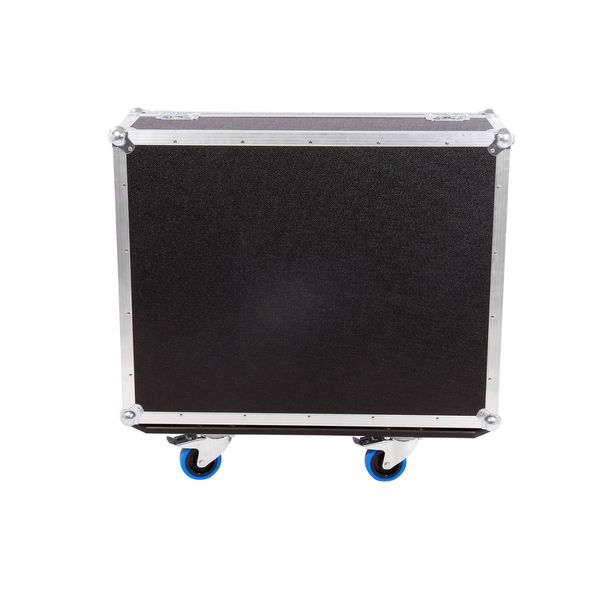

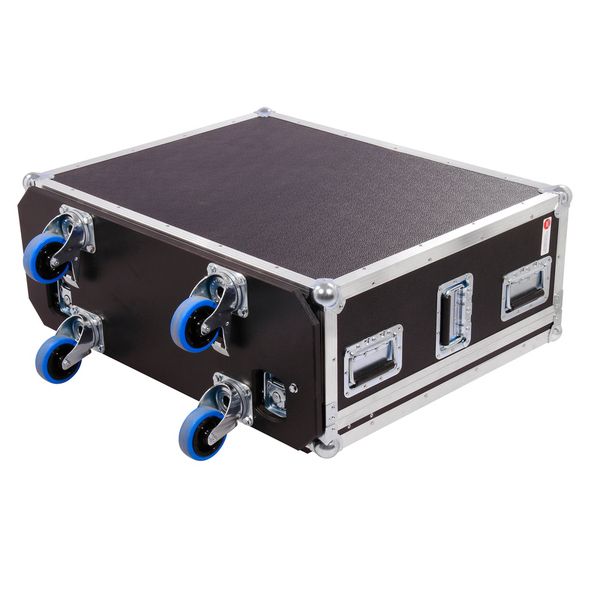

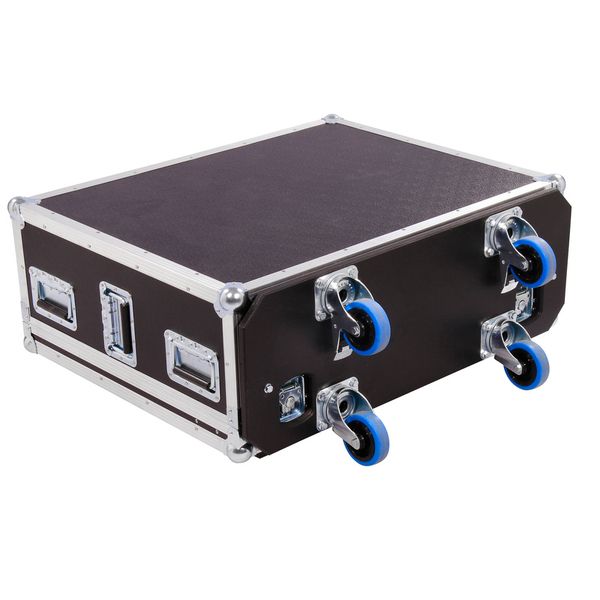

Thon Case A&H SQ7 with Dockhouse

Mixer Case

• For Allen & Heath SQ7
• Material: 7 mm coated plywood
• Dockhouse
• 30 x 30 mm Aluminium edge
• 4 Spring loaded butterfly latches
• 6 Folding handles
• 4 Steel ball corners
• 4 Steel ball corners with integrated L-corner
• 12 cm Closed rear cable duct
• 4 Swivel castors (2 braked)
• Foam padding
• Outside dimensions vertical (W x D x H): 90 x 85.7 x 34.7 cm
• Weight: 29.5 kg
• Colour: Black
• Made in Germany

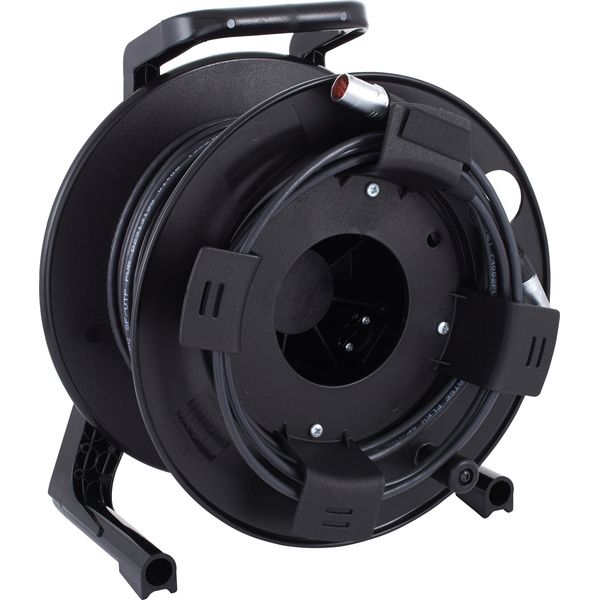

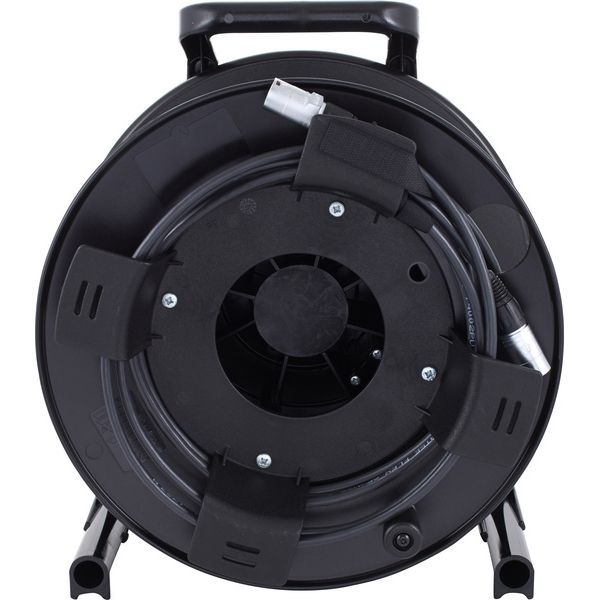

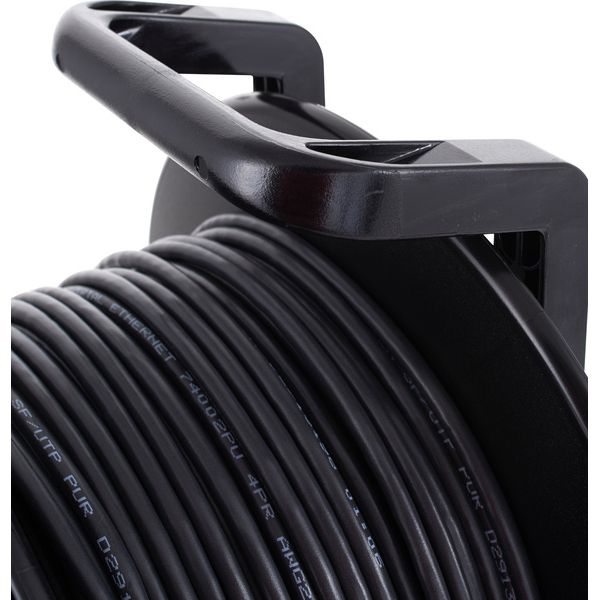

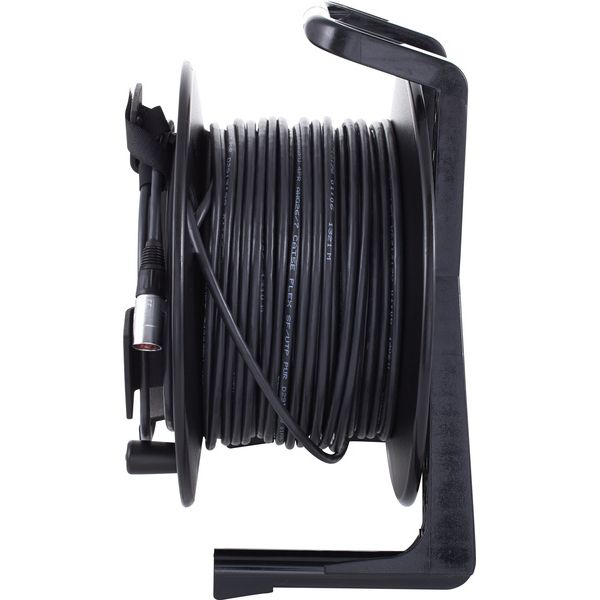

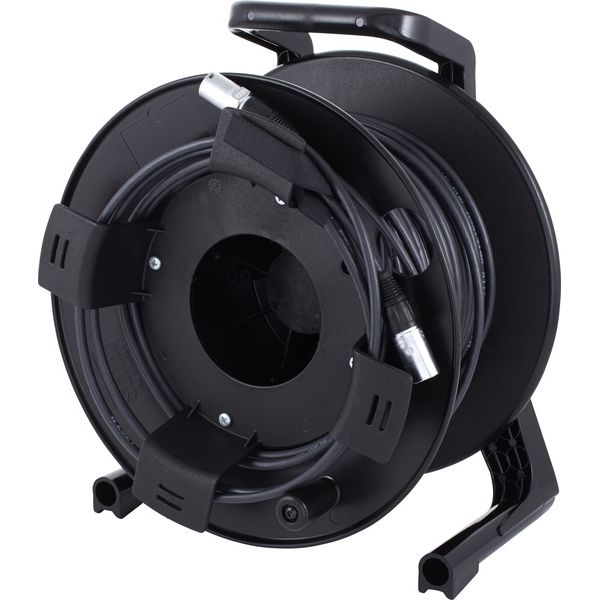

pro snake 88685-50

Cat5e Cable

• Length: 50 m
• On Schill GT-310 cable reel with winding assistance
• 2x RJ45 Hirose connector with Neutrik NE8MX1
• 4x 2x AWG26 / 7 double shielded with foil metal braided shield (manufactured by Belden)
• Assignment: EIA / TIA568B
• Cable can be unwound completely
• Housing / Bushing shielded by contact with metal plug
• Ideal for touring
• Made in Germany

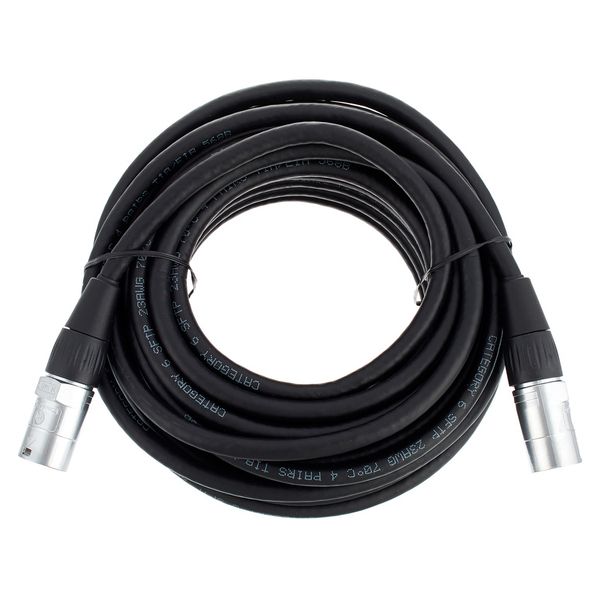

pro snake CAT6E Cable 10m

CAT6e cable

• Length: 10 m
• Robust and flexible cable for live and studio installations
• 2x RJ45 Rean plug (Brand of Neutrik)
• For D-Format sockets
• 4-pair 23 AWG CAT6 SFTP cable
• Conductor diameter: 0.565 mm
• Conductor material: pure copper
• 7 mm PVC sheathing
• Colour: Black
