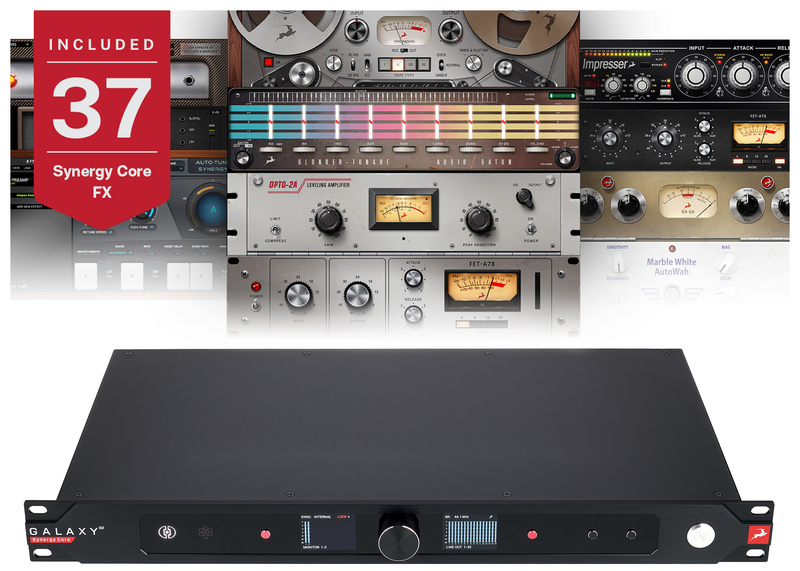

Antelope Galaxy 32 Synergy Core

32-Channel AD/DA | DANTE | HDX | Thunderbolt 3 Audio Interface

  • 32 Analog input channels via 4 DC-coupled D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
  • 32 Analog output channels via 4 DC-coupled D-Sub 25 connectors (TASCAM standard)
  • Dante connector with primary/mirrored secondary port
  • 2x HDX ports (24-bit, 192 kHz) for up to 64 channels (I/O) for Pro Tools HD/HDX at 192 kHz sampling rate
  • Thunderbolt 3 connectivity
  • Digital I/O: 64-channel MADI (optical), 8 ADAT channels, and 2 channels via S/PDIF
  • AD/DA conversion (up to 130 dB headroom): 24-bit/44.1 kHz - 192 kHz
  • 64-Bit AFC (Acoustically Focused Clocking) technology
  • 2x 1.8" IPS displays
  • 1x Wordclock input (BNC, 75 ohm)
  • 1x 10M input for atomic clock indicator (BNC, 75 ohm)
  • 2x Wordclock outputs (BNC, 75 ohm)
  • 2x Monitor outputs (6.3 mm, jack)
  • 6x DSP and 2x FPGA Synergy Core onboard platforms for real-time effects processing
  • Up to 128 effects instances can be used simultaneously
  • 37 Analog-modelled Synergy Core effects are included
  • System requirements: Windows 10, from Mac OSX 10.12
  • Dimensions (W x D x H): 483 x 280 x 44mm
  • Module installation requirements: .19", 1U
  • Weight: 3.4 kg

Note: Thunderbolt cable is not included, available under Article Nr 430801.

Further Information

Number of Mic Inputs 0
Number of Line Inputs 32
Number of Instrument Inputs 0
Number of Line Outputs 32
Headphone Outs 0
Phantom Power No
Number of S/PDIF Connectors 1
Number of ADAT Connectors 1
AES/EBU Connectors 0
Number of MADI Connectors 1
Ethernet 2
Other Connectors 2xHDX Port
MIDI Connectors No
Word Clock 2xIn, 2xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 3
Width in mm 483 mm
Height in mm 44 mm
Show variations of this product
Antelope Galaxy 32 Synergy Core
Antelope Galaxy 32 Synergy Core

32-Channel AD/DA | DANTE | HDX | Thunderbolt 3 Audio Interface 32 Analog input channels via 4 DC-coupled D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard), 32 Analog output channels...

Antelope Galaxy 64 Synergy Core
Antelope Galaxy 64 Synergy Core

64-Channel AD/DA / DANTE / HDX / Thunderbolt 3 Audio Interface 64 Analogue input channels over 8 D-Sub 25 connectors (TASCAM standard), 64 Analogue output channels over 8 DC coupled D-Sub 25...

$4,699
The shipping costs are calculated on the checkout page.
In stock within 2-3 weeks
In stock within 2-3 weeks

This item is expected back in stock soon and can then be shipped immediately.
