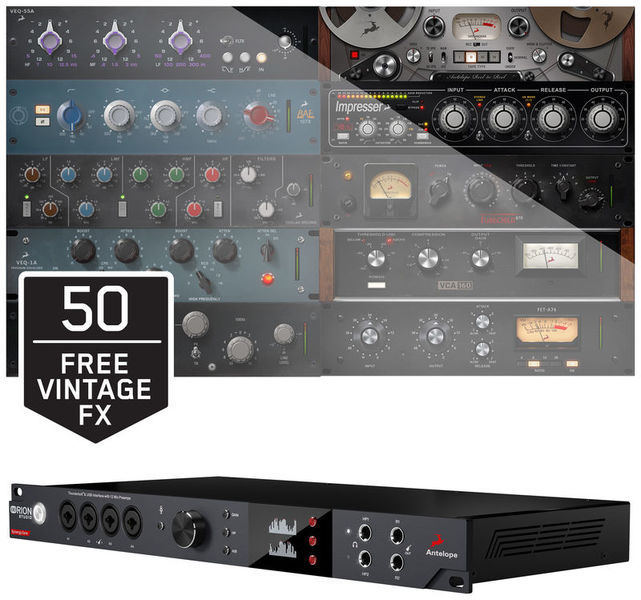

Antelope Orion Studio Synergy Core
Antelope Orion Studio Synergy Core; 32 Channel Thunderbolt 3 & USB 2.0 Audio interface; including 50 studio effects; integrated FPGA for real-time processing of effects; Antelope 64-bit acoustically focused clocking; 12 discrete microphone preamps with up to 75dB gain and +48V phantom power; 4x Hi-Z inputs; 2x stereo monitoring output with 130dB dynamic range (can be operated in parallel or in A/B mode); 2 independent stereo headphone outputs; 2 ReAmp outputs; 16x line output via DB25; analog inserts for inputs 1 & 2 (6.3mm TRS); S/PDIF input/output (2x RCA); 2x ADAT input/output; DC-coupled inputs and outputs for sending and receiving CV/Gate signals; word clock I/O; extensive software control panel with flexible audio routing; system requirements: Windows 10 (64 Bit), min. OS X 10.12 (10.14 Mojave recommended); dimensions: 483 x 220 x 44 mm (WxDxH); weight: 3.1 kg
Further Information
| Recording / Playback Channels | 64x64 |
|---|---|
| Number of Mic Inputs | 12 |
| Number of Line Inputs | 12 |
| Number of Instrument Inputs | 4 |
| Number of Line Outputs | 20 |
| Headphone Outs | 2 |
| Phantom Power | Yes |
| Number of S/PDIF Connectors | 1 |
| Number of ADAT Connectors | 2 |
| AES/EBU Connectors | 0 |
| Number of MADI Connectors | 0 |
| Ethernet | 0 |
| Other Connectors | No |
| MIDI Connectors | No |
| Word Clock | 1xIn, 1xOut |
| Max. Samplerate | 192 kHz |
| Max. Resolution in Bit | 24 bit |
| Bus-Powered | No |
| Incl. Power Supply | Yes |
| Windows Thunderbolt driver | Yes |
| Thunderbolt Version | 3 |
| Width in mm | 483 mm |
| Depth in mm | 220 mm |
| Height in mm | 44 mm |
