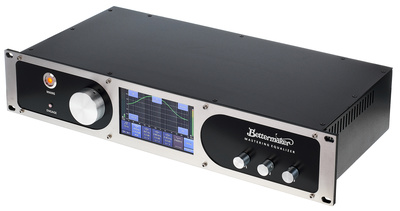

Bettermaker Mastering Equalizer

Stereo Equalizer

  • Analog 2-channel equalizer with digital control and preset memory with 399 places
  • Stereo, dual mono and mid / side operation with solo function
  • Stereo 12 or 24dB / oct. High pass filter with adjustable cutoff frequency (10 - 250 Hz) and resonance
  • 4 Parametric stereo filters, each with ± 15 dB gain and variable Q factor (0.2 - 2)
  • EQ1: 22 Hz - 470 Hz (bell / shelf)
  • EQ2: 90 Hz - 2 kHz (bell)
  • EQ3: 400 Hz - 10 kHz (bell)
  • EQ4: 1kHz - 23kHz (bell / shelf)
  • Additional passive stereo equalizer with extended hi-boost section (20 and 28 kHz) and separate frequencies for low-boost and low-cut settings
  • Gain Lock and Auto-Q functions
  • Can be controlled and automated via plug-in and USB connection
  • Supported formats: AU / VST / VST3 / AAX
  • Maximum input level: +23 dBu
  • Maximum output level: +23 dBu
  • Frequency response: 5 - 30.0000 Hz (+/- 0.1 dB)
  • Dynamic range:> 129 dB @ +18 dBu, 20 kHz BW
  • THD + N: 0.023% @ +4 dBu, 0.1% @ +18 dBu, 20-20 kHz
  • Crosstalk: min -90 dB @ 1KHz, max -55 dB @ 30Hz, +18 dBu, 20 kHz BW
  • 2 Balanced XLR inputs
  • 2 Balanced XLR outputs
  • Dimensions (H x W x D): 19 "x 2 U x 250 mm
  • Weight: 5.5 kg

Further Information

Channels 2
Frequency Bands 6
Tube(s) No
Height units 2 U
Connectors XLR
