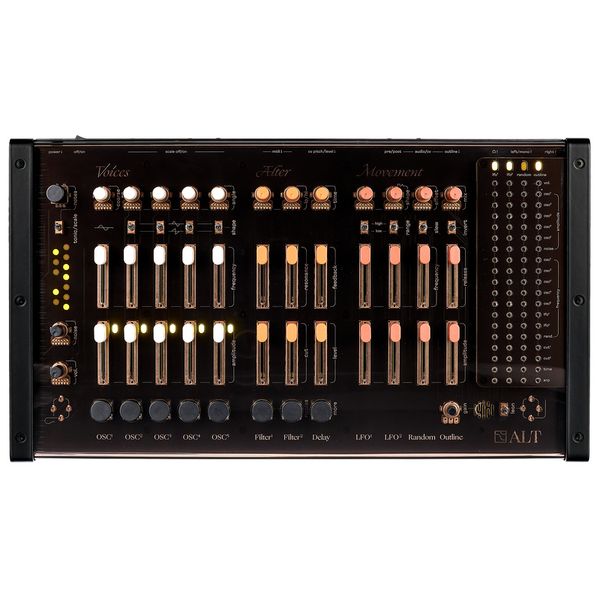

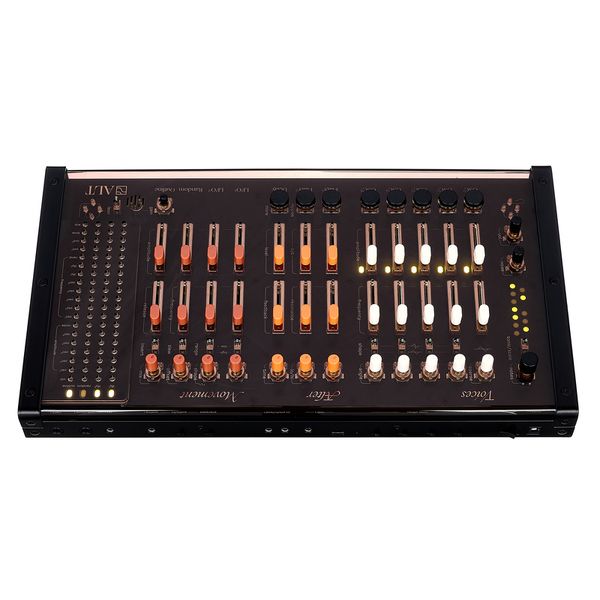

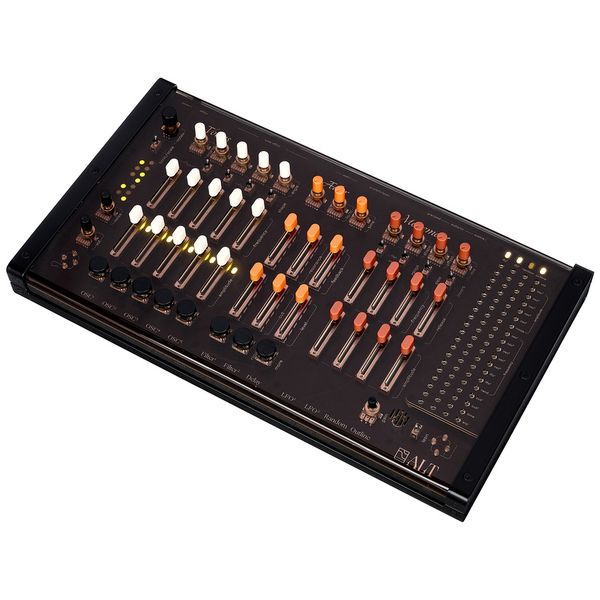

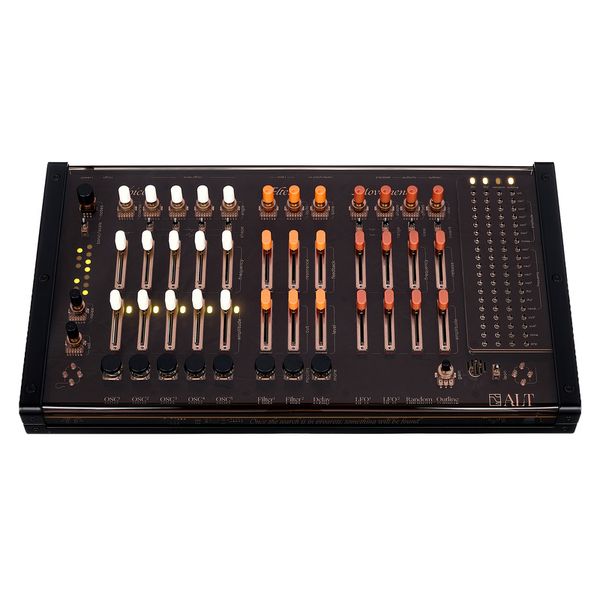

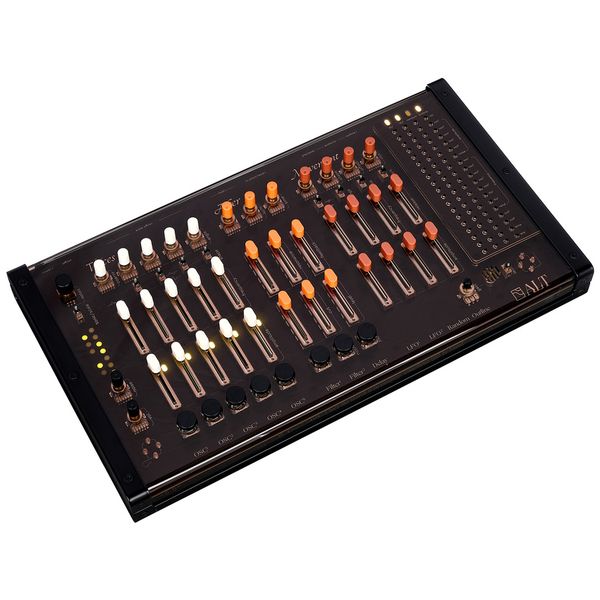

cyma forma ALT

Analogue Drone Synthesizer

• 5 oscillators, playable in monophonic or polyphonic mode
• Oscillator 1: freely tunable sine-wave VCO
• Oscillator 2–5: DCO with selectable triangle or sawtooth waveform, freely tunable or playable via a quantiser, adjustable stereo panning (Angle)

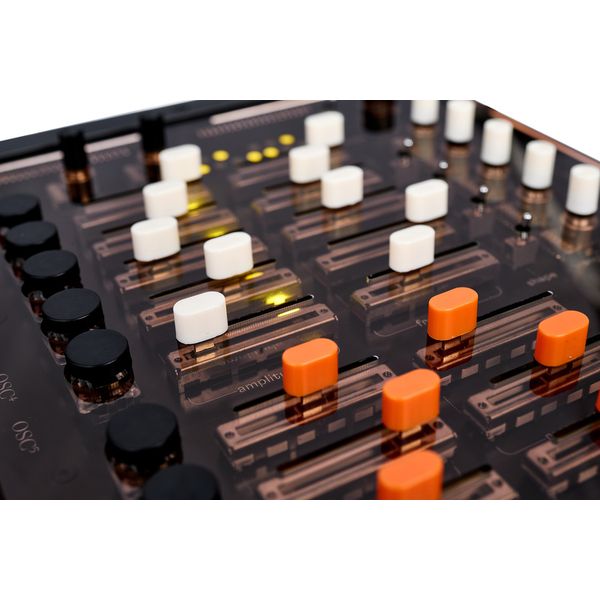

• Level controls and buttons for playing all 5 oscillators
• Quantiser with 15 selectable scales and Tonic Mode (assigning individual oscillators to specific notes)
• Noise generator with volume control
• Two stereo filters connected in series with resonance, each continuously adjustable from low-pass through band-pass to high-pass and modulatable by a noise generator (Filter 1) and external signals (Filter 2)
• Stereo delay with controls for level, time and feedback

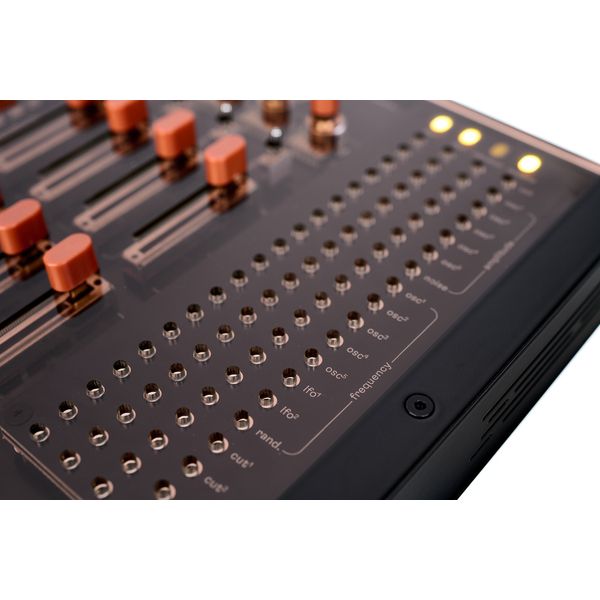

• 4 modulation sources (LFO 1, LFO 2, Random, Outline) that can be routed to 19 destinations via a pin matrix
• LFO 1 & 2: Mixable square and triangle waveforms, frequency range 0.01 Hz – 1190 Hz, level control and MIDI sync
• Random (Sample & Hold) with controls for level, frequency, slew rate and offset
• Outline (Envelope Follower) for integrating external signals
• Controls for level, release and mix, and a switch for inversion
• Built-in microphone with gain control
• Input for audio or CV signals: 3.5 mm jack
• Two light sensors for controlling volume and pitch
• Internal arpeggiator
• Controllable via Pin Matrix
• Extensive MIDI control of all voices and parameters

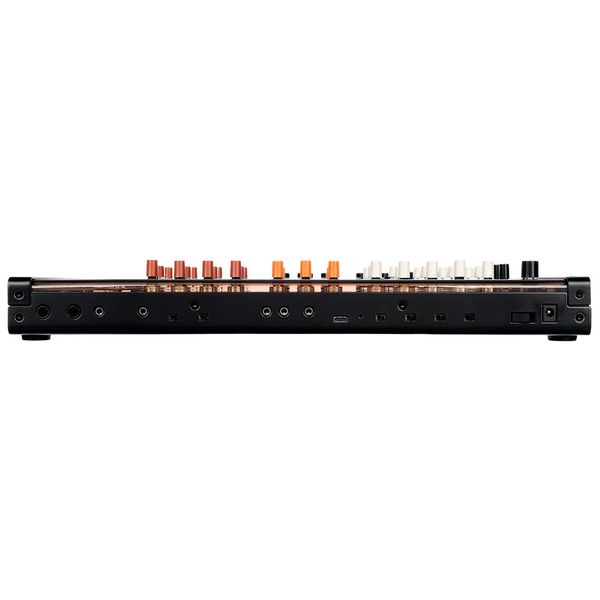

• Stereo output: 2 x 6.3 mm jack
• Stereo headphone output: 3.5 mm jack
• CV inputs for pitch and level: 2 x 3.5 mm jack
• CV inputs for pitch and level: 2 x 3.5 mm jack

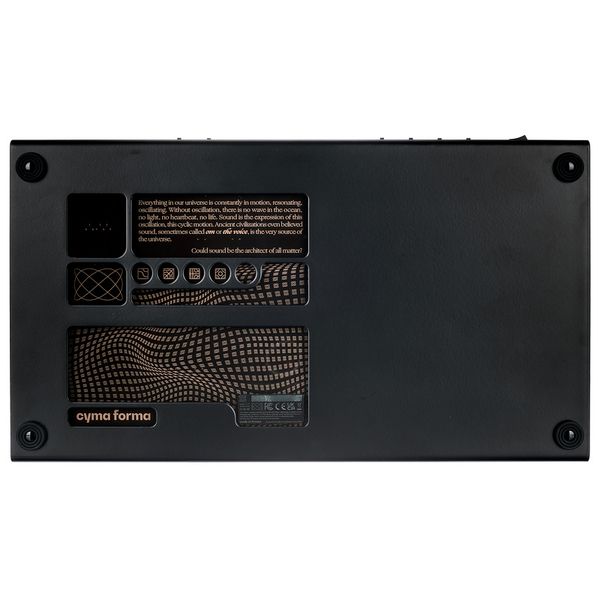

• Sturdy steel housing with a plexiglass control panel
• Dimensions (W x D x H): 404 x 227 x 57 mm
• Weight: 3.8 kg

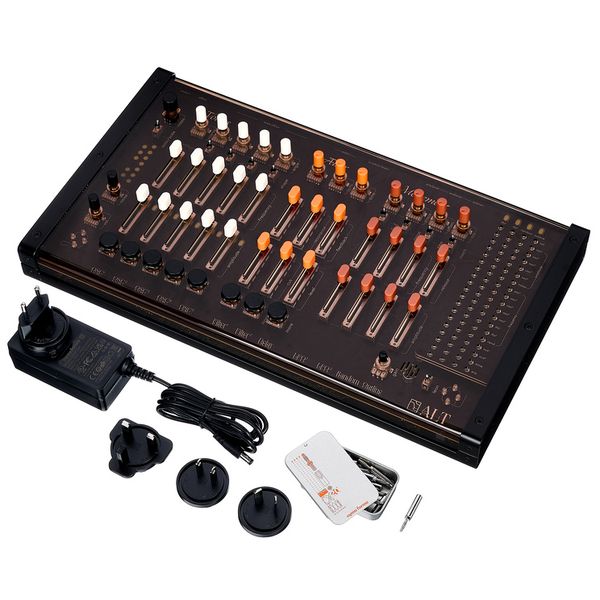

• Includes external power supply (15V DC, 2.5A), 20 Pins
