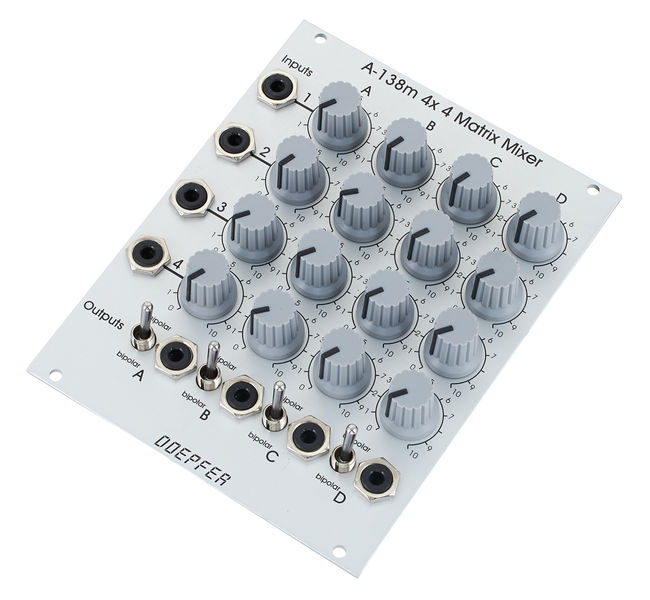

Doepfer A-138M

Matrix Mixer

  • With 4 rows and 4 columns
  • Unipolar / Bipolar mode switchable on each column
  • Suitable for both control voltage and audio
  • Width: 20 HP
  • Depth: 20 mm
  • Power requirements: +30 mA (+12 V) / -30 mA (-12 V)

Further Information

Modul Type Mono
Width 20 TE / HP

This product is currently sold out

These are other customers' choices:

Doepfer A-138s Mini Stereo Mixer
17% bought Doepfer A-138s Mini Stereo Mixer $75
Doepfer A-138n
12% bought Doepfer A-138n $50
Behringer CP3A-M Mixer
11% bought Behringer CP3A-M Mixer $49
Mutable Instruments Links
9% bought Mutable Instruments Links $69
Our most popular Mixer, Attenuator Modules
19 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 /5
  • handling
  • features
  • quality
Total
Did you know it can also work as a sequencer?
11.01.2016
What an essential and often overlooked module! Besides its obvious use for mixing audio and CV signals, Doepfer A-138M matrix mixer can also function as a sequencer: you can turn it into a 4 step chord sequencer (4 note chords!) or a 16 step traditional sequencer by adding a few additional modules. Feed gate outs 1-4 from either A-152 or A-161 into each respective input. Send each output to 1V/Oct inputs of your 4 VCOs. Play with a clock divider to find the right pace. Or do the same, but connect outputs into an A-151 and then into a VCO. Now you've got 16 steps! As always, very impressed with Doepfer.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
The heart of my sequencing rig
25.05.2016
This unit is exceptionally useful.
As a straight forward mixer, you can mix up to four signals and route them to four separate outputs, and each output can be set independently to sum the signals in a unipolar (positive voltage only) or bi-polar (positive and negative) fashion. Leaving the first input unplugged also allows you to add an offset to each output via the top row of knobs - very useful!
Where this unit comes into its own however is as a sequencer - you can create four separate sequences from the same input voltages - which can then be used to drive four oscillators to give some nice chords, or if you add an A-151 sequential switch (recommended!) you can create much longer and more complex sequences by switching between the outputs and sending them to one oscillator.

You can also mix LFOs / envelopes etc to create interesting and evolving modulation sources.
You can even (very carefully!) feed the outputs back into the mixer and use it for 'zero-input-mixer' music (disclaimer - feedback is tricky to control! Be careful!)

The usual high Doepfer standards apply here, the perfect blend of affordability and usability.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality
Awesome
spewie, 23.08.2020
Such an iconic module for CV mixing mangling in all manner of ways. In bipolar is hard to achieve 0 volts though in the unipolar mode O is more achievable, which would be my only criticsm although I have heard that achieving absolute 0 in a bipolar arrangement is intensely difficult and may not be a reasonable expectation of this module. You always get some bleed due to this problem which is not always an issue, sometimes annoying.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality
Good module
exmojoao, 19.02.2020
Is a good sounding matrix mixer
