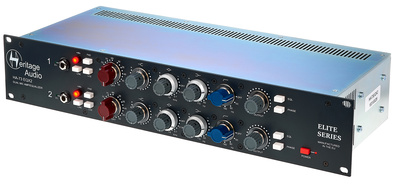

Heritage Audio HA73EQx2 Elite B-Stock
Dual Channel Microphone Preamp with Equalizer
- Based on the 1073
- Hand-wound Carnhill transformers
- Completely discrete three-stage microphone preamp
- Amplification: 80 dB microphone and 50 dB line
- -20 dB pad
- LO-Z for switching the input impedance from 1200 to 300 Ohm
- HP filter at 80 Hz
- Completely discrete three-band vintage EQ with induction coils
- Hi-shelf filter at 12 kHz
- Mid-band switchable between six operating frequencies and OFF
- Lo-shelf filter switchable between four operating frequencies and OFF
- Coil-based high-pass filter switchable between four operating frequencies and OFF
- XLR microphone input
- XLR line input
- XLR line output
- Instrument input: 6.3 mm jack
- Switchable 48 V phantom power
- Incl. external power supply
- Housing: 19" / 2 RU
-
Available since October 2018
-
Item number 466997
-
Sales Unit 1 piece(s)
