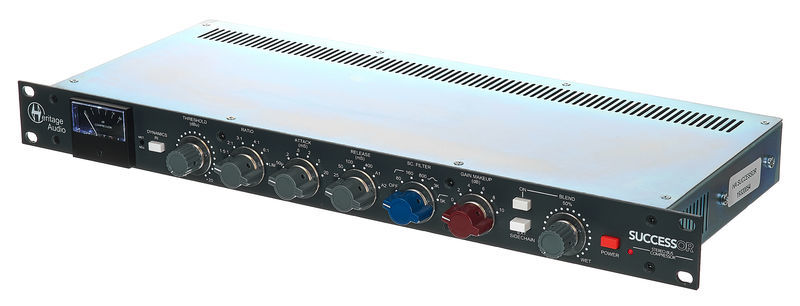

Heritage Audio Successor
Stereo Bus Compressor
- Analog bus and master compressor with transformer-coupled inputs and outputs
- Vintage sound character through 1073-inspired amplifier circuit with Carnhill transformer and diode bridge circuit
- Extremely fast attack and release control times
- Flexible sidechain path with 5-stage filter with high-pass and peak characteristics
- Rasterized blend control for parallel compression
- Rasterized controls for Threshold, Ratio, Attack, Release and Gain Makeup
- Per channel input and output (XLR) and sidechain send/return (6.3 mm jack)
- Frequency response: 20 Hz - 20 kHz
- Threshold: 20 - 20 dBu
- Ratio: 1.5:1 to 20:1
- Attack time: 50µs to 20ms
- Release time: 25ms to 400ms
- Auto circuit for program dependent compression
- Side-chain filter high-pass: 80, 160, 5000 Hz
- Side-chain filter peak: 1, 3 kHz
- Amplification: 0 to 10 dB in 2 dB steps
- Power supply: 100 - 240 VAC (external universal power supply)
- Dimensions: 19", 1 HE
