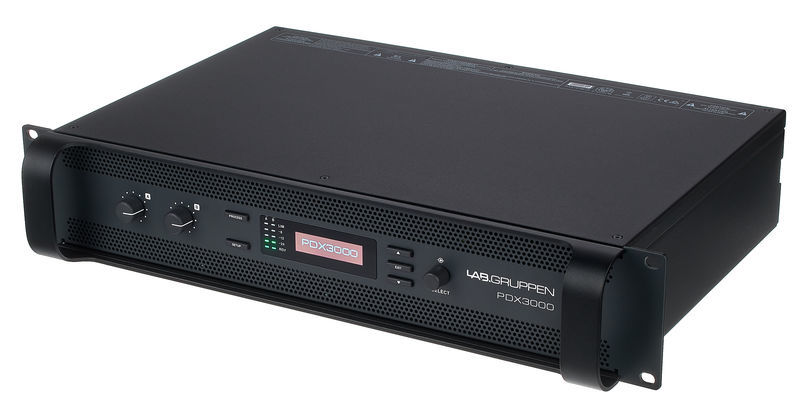

LAB Gruppen PDX3000

This item runs exclusively on an operating voltage of 230V and therefore requires a voltage transformer to run in your country of United States of America.

2-Channel Amplifier with DSP-Function

  • Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4 Ohm, 2x 800 W @ 8 Ohm, 3000 W Peak
  • Class D power amp
  • DSP configuration on the front panel or via USB connection and PDX Controller software from a PC
  • LCD display
  • Adjustable gain, delay, crossover, EQ, limiter and dynamic EQ
  • Switch mode power supply (SMPS)
  • Comprehensive circuit protection against short circuits, DC and thermal overload
  • Speaker Protect Limiter for maximum level output and reliable driver protection
  • Pre-configured crossover settings for speaker configuration
  • Front panel locking functionality
  • Temperature controlled fan
  • Signal-to-noise ratio: > 90 dB
  • THD+N: 20 - 20,000 Hz @ 1 W <0.1%
  • Frequency response: 10 - 20,000 Hz, + 0.5 / -1 dB
  • Input impedance: 10 kO unbalanced, 20 kO balanced
  • Internal sample rate: 96 kHz
  • 2x XLR inputs
  • 2x 6.3 mm Jack inputs
  • 2x PowerTwist outputs
  • Dimensions (H x W x D): 93 x 483 x 326 mm
  • Weight: 6.5 kg
  • Colour: Black
  • Designed and developed in Sweden
  • Includes a 10 year LAB Gruppen warranty

Further Information

Power (4 Ohms) per Channel 1500 W
Channels 2
Rack Units 2 U
Amp Class Class D
2 Ohm stable Yes
DSP/Crossover Yes
Convection cooling No

This product is currently sold out

These are other customers' choices:

Crown XLS 2502
11% bought Crown XLS 2502 $579
the t.amp TSA 4-700
10% bought the t.amp TSA 4-700 $422
Crown XLS 1502
9% bought Crown XLS 1502 $375
Behringer NX3000D
9% bought Behringer NX3000D $259
Our most popular Power Amps
14 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • handling
  • features
  • sound
  • quality
Total
handling
features
sound
quality
Great
Corman, 05.10.2020
Great value for money amp. Very happy.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Alles Perfekt nur die Leistung stimmt nicht
Tobias Knöll, 26.01.2020
Habe mir dieses Gerät angeschafft da Lab Gruppen 10 Jahre Garantie gibt. Mein altes Sytem hatte ich extra dafür verkauft und ursprünglich wollte ich 3 davon haben.
ABER: ich habe eine Leistungsmessung durchgeführt und folgendes ist dabei herausgekommen. 52V Ausgansspannung an 60 und 100hz getestet, ohne Limiter bei 3,75 Ohm Hochlastwiderständen. Das Ergibt 721W pro Kanal. Nicht 1500!! Mit Limiter ist die Spannung auf 49V gesunken. Daher für meine Subwoofer unbrauchbar ( 18 Sound 21NTLW5000 ). Für meine Tops würden 2 stück ausreichen aber das ist nicht Sinn und Zweck dass man sich 10 Stück davon kaufen muss damit die Gesamtleistung ausreicht. Wer also mit 2x 721 W Sinus an 4 ohm leben kann, der wird damit durchaus glücklich da der Rest voll und ganz überzeugt. Die class D Endstufe hat auch keinen eigenen Klangcharakter ( Konnte nun keinen unterschied zu meinem Pioneer A 616 feststellen. Natürlich mit FLAC gefüttert. )
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Très bon ampli avec DSP, mais ventilateurs bruyants
PJ France, 26.04.2021
J'ai aimé le son et les possibilités de cet ampli, avec un DSP et un logiciel très pratique. Malheureusement pour moi le bruit des ventilateurs est trop important, dommage car Lab Gruppen indique sur ces documents que les ventilateurs sont régulés avec la température. Chez moi les ventilateurs sont bryants en permanence, donc je retourne cet ampli pour en commander un autre plus silencieux à l'usage.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
se Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Overpriced Behringer...
Thomas8009, 11.01.2021
Noise floor and fan noise far beyond acceptable, even for this price range. Refused to appear in my PC for remote control. Unlinear audio performance with little to no low end power (still I only tested my "easy load" dual 6,5" (8 ohm) monitors. Only plus is the feature set for the price but due to overall horrible performance those could not be fully evaluated (I packed it back up just a few minutes from firing it up as I couldn't bare the noise and fan noise).
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
$585
The shipping costs are calculated on the checkout page.
In stock within 11-14 weeks
In stock within 11-14 weeks

This item is expected back in stock soon and can then be shipped immediately.
