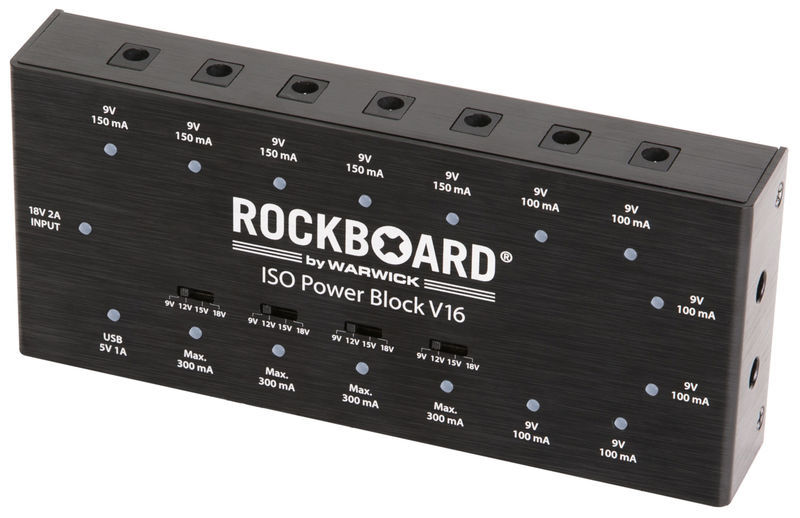

Rockboard ISO Power Block V16

Multi power supply for effects devices

  • 16 Galvanically isolated, highly filtered power connections
  • Power supply for up to 15 effects pedals without background noise, as well as for charging USB devices
  • Advanced filter technology effectively prevents high-frequency background noise
  • External transformer prevents low frequency interference
  • Maximum total output power: 27.95 W (3,550 mA)
  • 6 x 9V DC power connections, each loadable with 100 mA, 2.1 x 5.5 mm barrel connector with polarity (-) inside
  • 5 x 9V DC power connections, each loadable with 150 mA, 2.1 x 5.5 mm barrel connector with polarity (-) inside
  • 4 x Switchable power connections (9V DC 300 mA / 12V DC 200 mA / 15V DC 180 mA / 18V DC 150 mA), 2.1 x 5.5 mm barrel connector with polarity (-) inside
  • 1 x USB 5V, loadable with 1A, type A
  • Individual status LEDs and short-circuit protection for each power connection
  • Input voltage 18V DC
  • Dimensions (L x W x H): 178 x 80 x 30 mm
  • Weight: 400 g

Included:

  • 1 x 18V DC power supply (2,000 mA) with exchangeable plug adapters (EU, UK, US / CA, AU / NZ), input voltage 100-240V AC
  • 16 x RockBoard Flat Power Cable 60 cm - to power the effects pedals
  • 1 x RockBoard Power Ace Voltage Doubler Y-Cable 20 cm (blue) - for bridging two connections and doubling / merging the voltage
  • 1 x RockBoard Power Ace Current Doubler Y-Cable 20 cm (white) - for bridging two connections and doubling / merging the number of milliamps (load capacity)

Further Information

DC/AC current DC
9 V Yes
12 V Yes
18 V Yes
Secondary voltage Yes
Multi-output power supply Yes
