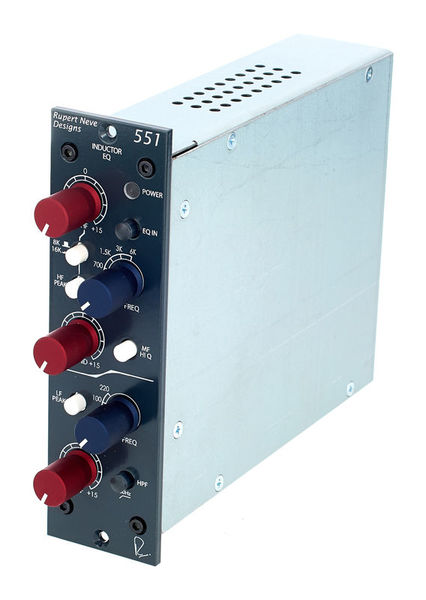

Rupert Neve Designs Portico 551
3-band inductor (coil) EQ - 500 series
- Low EQ: +/-15 dB shelf or peak
- Selectable for 35 Hz, 60 Hz, 100 Hz or 220 Hz
- Mid EQ: +/-15 dB with 6 centre frequencies: 200 Hz, 350 Hz, 700 Hz, 1.5 kHz, 3 kHz and 6 kHz
- High / Peak switch to increase the Q-factor
- Hi shelf: +/-15 dB shelf or peak, selectable for 8 kHz and 16 kHz
- Lo cut: 12 dB / octave design at 80 Hz
- Rupert Neve custom transformer
- Design: API series 500 rack format
|48 V Phantom power||No|
