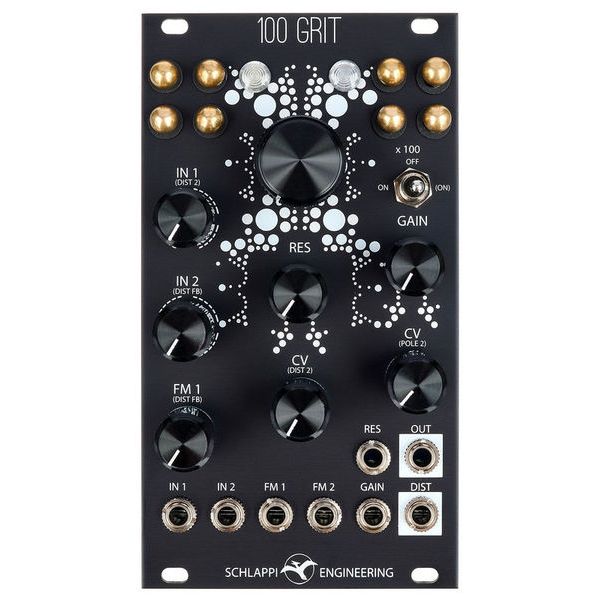

Schlappi Engineering 100 Grit Black

3

Eurorack Module

  • Filter with VCA and distortion
  • Low-pass filter (24dB/oct.) with cutoff and resonance control
  • 2 FM inputs (FM1 with attenuator)
  • 2 Adjustable audio inputs with overdrive option
  • OTA-based VCA with gain control and CV input with attenuator
  • Distortion output stage with gain switch (x100)
  • 8 Brass contacts allow to connect different parts of the circuit by touching with fingers, cables or metal parts
  • All inputs are normalised to various circuit sections and allow feedback and self-modulation
  • Separate outputs for VCA and distortion stage
  • Current consumption: 55 mA (+12 V) / 70 mA (-12 V)
  • Width: 14 TE
  • Depth: 25 mm
  • Colour: Black
available since January 2022
Item number 535291
sales unit 1 piece(s)
Width 14 TE / HP
$273
The shipping costs are calculated on the checkout page.
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1
m
amazing!!
myc_ 12.07.2022
if you want a crazy filter with even crazier distortion this module is for you. the touch points at the top help with manipulating the sound and when you add external modulation all kinds of strange things start to happen.
handling
features
sound
quality
0
0
Report

Report

N
A must have
NicoHpg 08.02.2022
If you like nasty sounds that's your filter, it can be gente as well but man it screams, best module i buy in a while...100%(grit) recommended
handling
features
sound
quality
1
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
p
Sehr spezieller Filter
pcelli 01.04.2022
Ich finde den 100 Grit von Schlappi einen sehr wertig gebauten spannend klingenden Filter. Er neigt sehr zu extrem schrillen Sounds, doch etwas gebändigt kann er sich in sehr viele Genres gut einbinden.

Die Verarbeitung ist sehr wertig gebaut und fühlt sich absolut top an.

Die Bedienbarkeit über die Kontaktknöpfe ist auch sehr speziell.

Zusammengefasst: Wer auf der Suche nach einem bisschen anders klingenden Filter als die meisten ist, mit einer Prise unvorhersehbarkeit ist, wird mit diesem Filter extrem viel Spaß haben!
