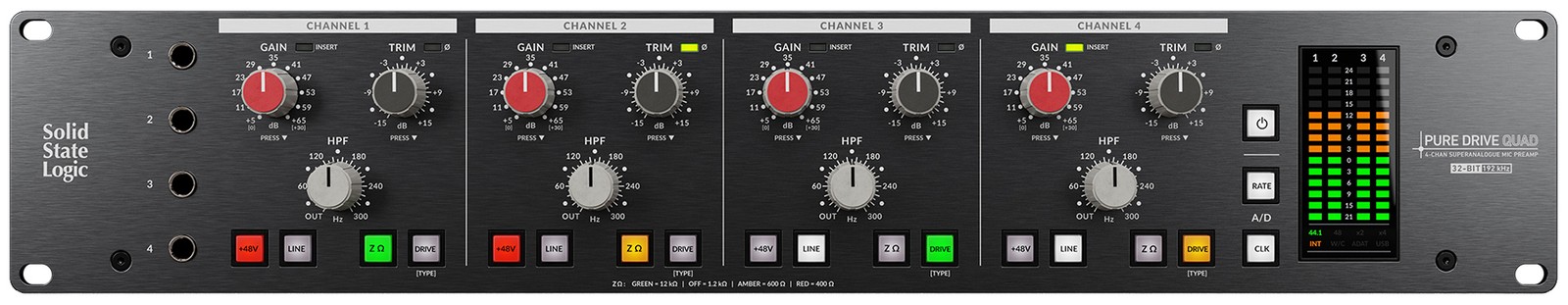

SSL Pure Drive Quad

9

4-Channel Microphone Preamplifier

  • AD converter (up to 192 kHz / 32-bit) and 12x12 USB audio interface (44.1 / 48 kHz - 4x analogue + 8 ADAT input channels, 4 AES + 8 ADAT output channels)
  • SuperAnalogue PureDrive microphone preamp technology from the ORIGIN console
  • Stepped gain control with up to +65 dB gain
  • 31-Stage trim control with precise 1 dB steps
  • 3 Modes for each preamp - Clean, Classic-Drive and Asymmetric-Drive
  • Mic/Line input switching
  • 4 Input impedance options for mic preamps
  • +48V phantom power
  • Polarity switching and tunable high-pass filter
  • Cascadable via link connection (ADAT)
  • Format: 19" / 2U

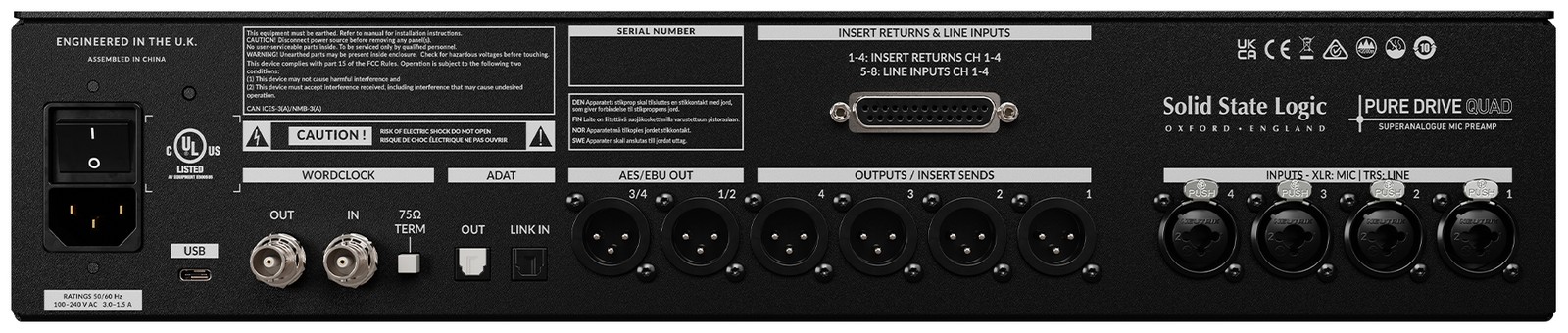

Connections:

  • 4x Combo mic / line input: XLR / 6.3 mm jack
  • 4x Insert return / line input: Sub D-25
  • 4x Hi-Z / DI instrument input unbalanced
  • 4x Line output / insert send: XLR
  • AES/EBU input and output: XLR
  • ADAT input and output
  • Word Clock input and output: BNC
  • USB
Available since January 2024
Item number 578436
Sales Unit 1 piece(s)
Channels 4
Number of microphone inputs 4
Instrument input Yes
Tubes No
Compressor/Limiter No
Equalizer No
De-Esser No
Phantom power Yes
Phase Reverse Yes
External effect loops Yes
Analogue Outputs XLR
Digitale Outputs ADAT
Headphone connection No
Level Meter Yes
Design 19" / 2U
$1,059
The shipping costs are calculated on the checkout page.
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1

9 Customer ratings

5 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

handling

features

sound

quality

8 Reviews

Tg
Good sound
Tech guru wannabe 12.03.2024
It sounds truly magnificent compared to all the preamps in the various low cost mixers that I have been used to. Clean, transparent, noiseless.
handling
features
sound
quality
8
0
Report

Report

t
Wow!
thejabbawookie1010 23.08.2024
Just a stunning sounding audio interface, the only drawback is that you need to pair it with another audio interface which defeats the purpose somewhat but the quality of the sound makes up for this
handling
features
sound
quality
0
0
Report

Report

J
incredible sound on reasonable price
JordanYK 04.03.2024
Very good quality preamp on reasonable price!
handling
features
sound
quality
7
2
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
P
Finally found...
Peter.K. 18.05.2024
Before trying this gear I thought that the golden rulett "track with Neve and mix with SSL" is fully truth. Now... I would say, that due to the two different harmonic distortion modes this practice should be changed. Track with SSL, and mix with SSL is at least as good by using this preamp. Pristine sound quality, massive built, versatility - all in one. I'm using it with ssl12 via the ADAT connection. The Quad preamp sounds way better than the ssl12, real console quality. The rest (dynamics, EQ, etc) you can add it in the DAW. The result is... brutally good. Highly recommended versatile stuff for relatively cheap. This is something what you can not get via preamp emulations regardless the the manufacturer of the plugin. It's simply hot.
handling
features
sound
quality
9
0
Report

Report
