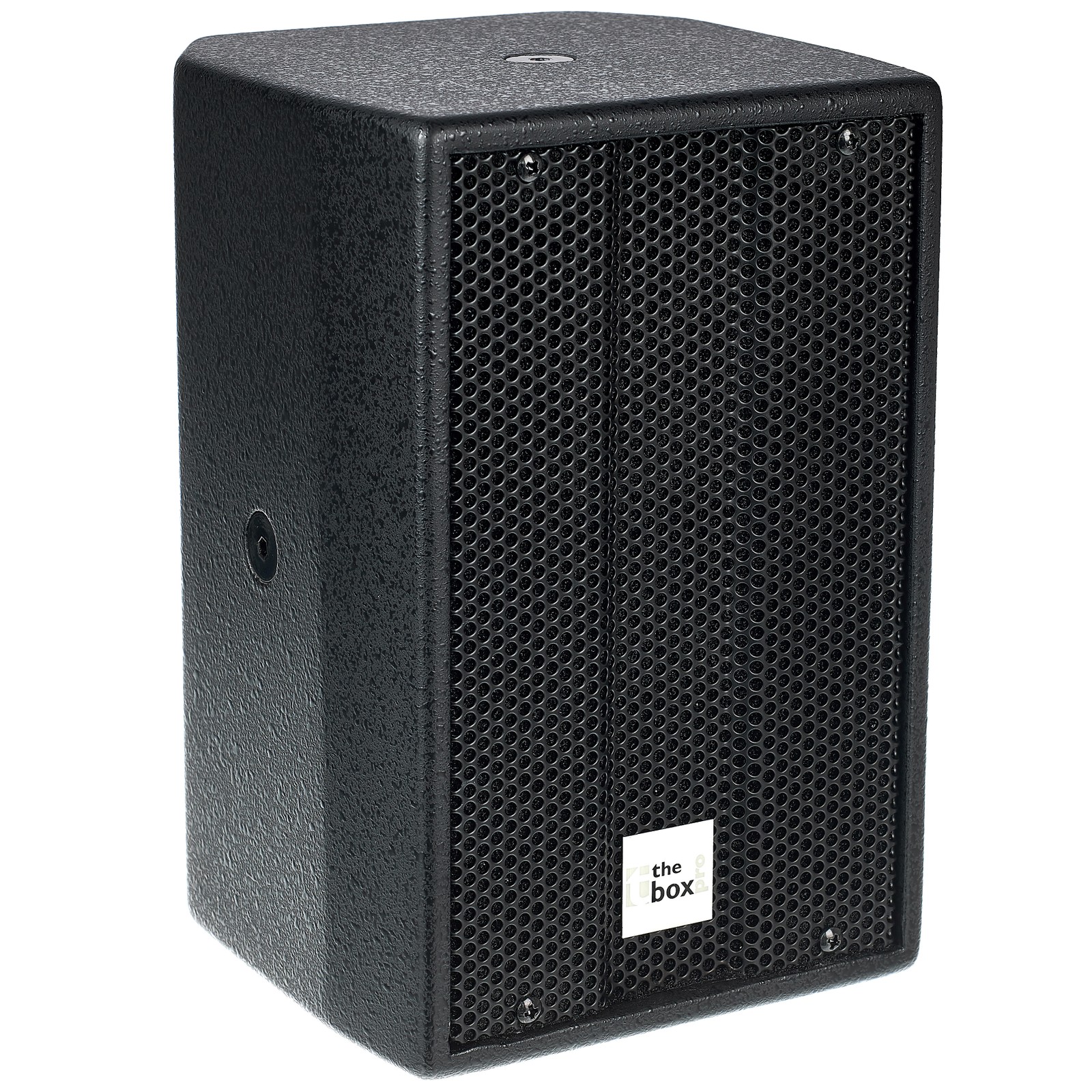

the box pro Achat 104
Small loudspeaker
- Equipped with: 4" bass and 1" fabric dome tweeter
- Rated power : 40 W RMS/160 W peak
- Impedance: 8 Ohm
- Sensitivity: 109 dB max.
- Frequency range: 100 Hz - 20 kHz
- Dispersion: 90° x 90°
- Connectors: 2x NL2 and screw terminals
- Black textured paint finish
- Dimensions: 144 x 146 x 214 mm
- Weight: 2.5 kg
- Optional joint wall bracket available under Article Nr 251424
- Incl. L-shaped wall bracket, ceiling and stand mounting
- Optional stand adapter Article Nr 298731 for microphone stand mounting
- Developed in Germany
-
Available since November 2010
-
Item number 247635
-
Sales Unit 1 piece(s)
-
Manufacturers Information Power Handling 160 W
-
Impedance 8 Ohms
-
Number of Woofers 1
-
Woofers in Inch 4"
-
Colour Black
-
Width in mm 144 mm
-
Depth in mm 146 mm
-
Height in mm 214 mm
-
Weight in kg 2,5 kg
-
Monitor Angle No
-
IP Class No
-
Width 144 mm
-
RMS Power 40 W
-
Depth 146 mm
-
Type Passive
-
Height 215 mm
-
Flyable M6
-
Weight 2,5 kg
-
Maximal SPL 109 dB
-
Number of Mid-Tone Speakers 0
-
Mid-Tone Speakers in Inch none
-
Woofer in inch 4"
-
Number of HT-Speakers 1
-
Number of Ways 2-way
-
Stand Flange No
-
HT-Speakers in Inch 1"
-
Sound Pressure in dB 109 dB
-
100V power tappings Ne
-
Connector Speaker Twist
-
Cabinet/Intallation Cabinet
-
IP Classification None
-
Housing Material Wood
-
Selling per Piece/Pair Piece
-
Construction Mid/High Cabinet
-
Wall Mount Yes
-
Frequency Range (-3dB) from 100 Hz
-
Input Speaker-Twist; Binding Post
-
Frequency Range (-3dB) to 20000 Hz
-
Output Speaker-Twist; Binding Post
-
Horizontal Beam Angle 90 °
-
Vertical Beam Angle 90 °
-
A sturdy little cube
A compact passive full-range loudspeaker, the box pro Achat 104 offers its users excellent value for money. With its robust wooden housing, the 104 weighs 2.5kg, which is comparatively heavy compared to speakers with aluminium or plastic housings. The thickness of the material also makes the speaker slightly wider than other similarly equipped devices. At the same time, though, this design also makes it very robust – so it's well-suited to touring. L-brackets for mounting it on walls, ceilings, and stands are included as standard.
)
Broad frequency spectrum
Each the box pro Achat 104 is equipped with a 4" woofer and a 1" fabric dome tweeter. Of course, no would expect enormous bass depth with such small components, but with a frequency range of 100Hz–20kHz and a maximum sound pressure of 109dB, the speaker is ideal for spoken word applications or unobtrusive background music. The speaker can be directly connected to an amp or output with sufficient power. In addition to two parallel-wired speaker twist sockets, it has terminal connections for open cable ends, as both inputs and outputs, and the power handling capacity is 40W RMS at an impedance of 8 ohms. However, the power amp's output should ideally be about one-third higher than that, so as to effectively prevent distortion caused by clipping.
)
Tiny, flexible, and practical
Thanks to the variety of mounting options, one or more the box pro Achat 104 speakers are ideal for permanent use in restaurants, shops, medical practices and the like, but they're also at home in a living room or kitchen. The 104s perform well in mobile applications, too. As a small full-range loudspeaker without a subwoofer, a single the box pro Achat 104 is eminently suitable for spoken word applications such as readings or poetry slams, as well as for background sound reinforcement where bass is less essential. If more bass is required, additional subwoofers are necessary; Thomann's the box pro Achat 108 Sub A model is particularly suitable, as up to four 104s can be connected directly to the Sub's integrated output stage. Anyone who prefers to use their own external power amplifiers can, of course, go with the passive version of the same subwoofer and get a the box pro Achat 108.
)
About the box pro
For over 20 years, products from the box pro have enriched Thomann’s comprehensive range. If you are looking for small robust speakers, drum monitor systems, active bass speakers, column systems, active full-range speakers, line arrays, or limiters at a reasonable price, you can be sure that the box pro has you covered. These products are made exclusively by renowned companies who also manufacture products for other well-known brands – so if you are looking for brand quality at a budget-friendly price, you are certainly in good hands with around 200 articles from the box pro.
Out of sight, out of mind
In addition to speech applications and background sound reinforcement, the compact design of the box pro Achat 104 loudspeaker also makes it suitable for use as a delay line, talkback monitor, or side/front fill. When used for speech reinforcement in enclosed spaces, the 104 will manage sound reinforcement for around 30 people. And four of these small speakers, used in a setup with an Achat 108 sub, are more than enough to fill cafés, restaurants, or shops with pleasant, unobstrusive background music – for large rooms up to 80m². Thanks to its compact size and wide variety of mounting options, a box pro Achat 104 is also a great choice as a speaker for individual living spaces.
