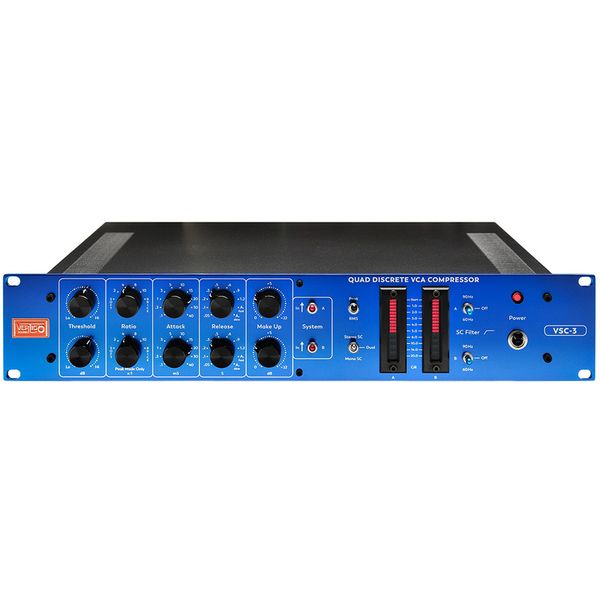

Vertigo Sound VSC-3

Quad Discrete Compressor

  • Analogue circuit with two discrete VCA's and Cinemag input transformer per channel
  • Per channel control for threshold
  • Ratio (range: 1.1:1 to 40:1)
  • Attack and release with 10 selectable time constants each (auto release mode slow/fast)
  • Make Up Gain (range: 0dB to +22dB)
  • Gain reduction display
  • Switchable sidechain high-pass filter (60 Hz / 90 Hz) and bypass switch per channel
  • RMS or PEAK detection switchable
  • Selectable operating modes: Dual mono, stereo sidechain, mono summed sidechain
  • Frequency range: 10 - 70,000 Hz
  • Dynamic range: 115dB
  • Max. output level: +27dBu
  • Per channel XLR input and output
  • Dimensions: 19" / 2U
available since July 2022
Item number 546030
sales unit 1 piece(s)
Compressor Yes
Gate No
Peak Limiter Yes
2-Channel Unit Yes
Attack/Release Adjustable Yes
