Zoom AMS-22

1

USB 2.0 Audio Interface

  • 24-bit / 96 kHz
  • Microphone and instrument input XLR/TRS combo jack with max. +54dB gain

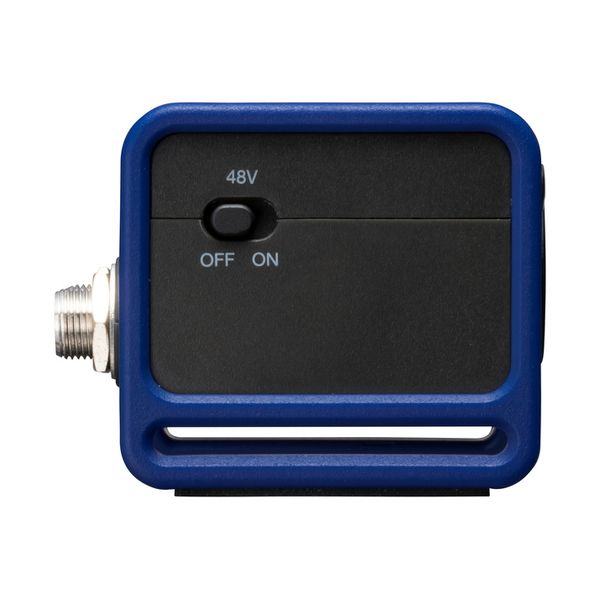

  • Phantom power switchable: +48V
  • Stereo line input: 3.5 mm jack
  • Direct monitoring function
  • Switchable loopback option
  • Stereo headphone output: 3.5 mm jack
  • Stereo line output: 2x 6.3mm jack, balanced
  • Compatible with Mac, PC, iOS and Android
  • USB-C port for audio stream and power supply
  • Separate USB-C port for power supply for mobile recording
  • Dimensions (WxDxH): 68 x 57.7 x 46 mm
  • Weight: 85 g
  • Incl. quick start guide and USB-C cable
available since July 2022
Item number 546104
sales unit 1 piece(s)
Recording / Playback Channels 2x2
Number of Mic Inputs 1
Number of Line Inputs 2
Number of Instrument Inputs 1
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
MIDI interface No
Word Clock No
Max. sample rate (kHz) 96 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Height in mm 46 mm
Zero latency monitoring 1
