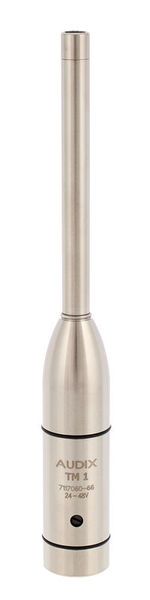

Audix TM-1 Plus

Test, Measurement and Recording Microphone

  • Pre-polarised 6mm condenser capsule
  • Omnidirectional
  • Transmission 20 Hz - 25 kHz (+/- 2 dB)
  • Max SPL 140 dB
  • For 18-52 V phantom power
  • Output impedance 200 Ohm
  • Dynamic range 112 dB
  • Suitable for real time analyser, measurements, tests, room analysis software programs, ambient/room recording
  • Housing made of precision machined nickel-plated brass housing
  • Gold-plated XLR plug connector
  • Length approx. 150 mm
  • Elastic suspension (SMT-19)
  • 1/2" Adapter for calibrator (TM1-CA) and individual sensitivity/calibration data file on CD
  • Optional screw-on windshield (WS-TM1)
11 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • features
  • quality
Total
features
quality
Good MM unit!
Edo94, 27.11.2020
Does the job!

Definitely gets the traces I need for my measurement. Of cos you can't compare this to other measurement mic brands. Unless you need class certification for your readings. This is really just what you need and it is enough to get the job done.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
quality
Messmikrofon
Mojo49, 05.02.2019
Ich nutze das Audix als Messmikrofon - Raumakustik und beim Einmessen der PA mit Analyzer.
Sehr gute Verarbeitung, sehr gutes Mikrofon insgesamt.
Einziges (mini) Manko - wenn die Verpackung nicht Pappe sondern ein Kunststoffköfferchen wäre - hätte das Mikro direkt eine gute Transportverpackung.
(wie gesagt - mini Manko)
Sehr zufrieden!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
quality
Micro calibré d'usine !
Nemavio, 05.08.2020
Micro reçu avec les paramètres de correction de sa réponse en fréquence, c'est top !
Je l'utilise avec REW EQ Wizard, rien à dire il fait du bon travail. Quand la flemme me prend, je l'utilise directement sur mon DBX Venu360. Résultat immédiat, malgré le fait que je peux pas rentrer les infos de calibration dans mon DBX.
Fourni avec bonnette (même si j'ai du mal à voir dans quel cas nous pouvons faire une cal avec bonnette) ainsi que sa pince pour pied.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
quality
Preis/Leistung ist super
GertS, 02.03.2012
Ich habe 3 von diesen Mikros gekauft. Die Klemme und der Windschutz machen den Preisunterschied schon OK. Aber mit Korrekturdaten und Kalibratorring ein wirklich gutes Paket.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
$413
The shipping costs are calculated on the checkout page.
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
