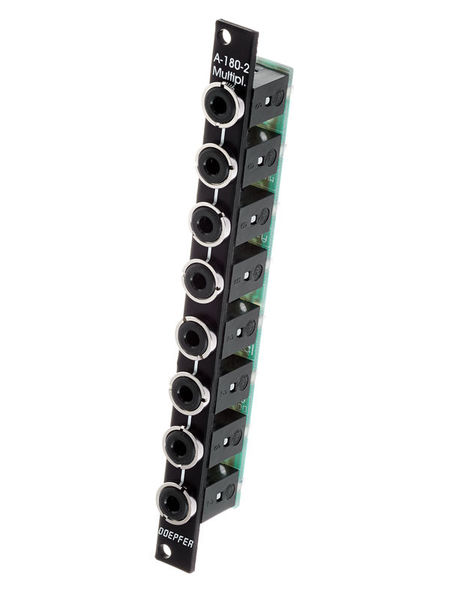

Doepfer A-180-2 Vintage Edition

Passive Multi-Connector

  • Eight interconnected jacks can be split into 2 groups (solder bridge on the assembly side)
  • Width: 2 HP
  • Vintage edition with black front plate

Further Information

Width 2 TE / HP

These are other customers' choices:

Customers who looked at this item have bought these:

Doepfer A-180-2 Vintage Edition
39% bought this exact product
Doepfer A-180-2 Vintage Edition
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$39 Add to Basket
Doepfer A-180-2 Multiples
19% bought Doepfer A-180-2 Multiples $35
Doepfer A-180-3 Dual Buffered Multiple
11% bought Doepfer A-180-3 Dual Buffered Multiple $49
Behringer 994 Multiples
6% bought Behringer 994 Multiples $39
Intellijel Designs Mult
5% bought Intellijel Designs Mult $32
Our most popular Multiple, Divider Modules
27 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • handling
  • features
  • quality
Total
This mult unit is very cheap but you might need more
20.01.2016
· Assumed from Doepfer A-180-2 Multiples
One thing to note firstly is that despite a lot of what you might read in product information on this and other sites the design of this module has changed slightly. When it is shipped from the factory the middle solder bridge between the two groups of four sockets is not joined, so it is now shipped as standard functioning as two groups of four interconnected jack sockets. If you require an eight-way mult you simply have to join the two groups together at the back of the panel. Just a line of solder will do the job. There's not much to say about this unit, other than the build quality is great - as you would expect from Doepfer - and the unit is competitively priced. I don't see any reason to pay more for equivalent modules from other manufacturers, in which case you would simply be paying for the name. One thing I will point out: if you plan to use this module to multiply CV input to drive oscillators then spend a bit more and get the buffered mult unit A-180-3. This will ensure that voltage is consistent on all outputs, meaning that your oscillators will be easier to get in tune with each other and will track correctly.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
A multiple from Doepfer in just 2HP
Jonathan64, 11.09.2013
· Assumed from Doepfer A-180-2 Multiples
No modular system is complete without several multiples and I have waited quite a while for Doepfer to bring out a narrow version of theirs. Here it is at last, and it does the job beautifully in just 2HP. Just does the job it is meant to in the least possible space. Well done Doepfer!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality
TOSHIO, 17.06.2019
simple and small. functional and useful
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
A simple but very useful module
08.04.2015
· Assumed from Doepfer A-180-2 Multiples
Bought 2 of these recently and they are an essential tool in any modular system. If I had a criticism it would be that they don't leave a lot of clearance for larger jack plugs. Works fine with the Doepfer branded plugs though and the narrow width means more space for other modules.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
