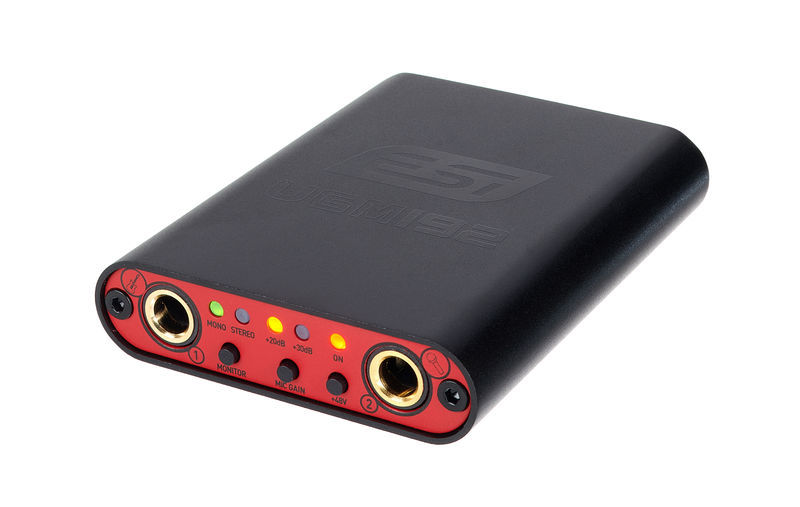

ESI UGM192

2-Channel USB 3.1 audio interface (USB 2.0 compatible)

  • 24-Bit / 192 kHz DA and AD converter with 114dB dynamic range
  • Microphone pre-amplifier with balanced 6.3 mm jack connection and switchable 48V phantom power
  • Hi-Z instrument input with 6.3mm jack connection
  • Line - / Headphone output with stereo 6.3mm jack connection
  • Compatible with Windows 7 / 8.1 / 10 and OS X / macOS
  • Support for ASIO 2.0, WDM, MME via EWDM driver and Core Audio
  • 100% Class Compliant
  • Dimensions: 87 x 67 x 20 mm
  • Metal housing

Further Information

Recording / Playback Channels 2x2
Number of Mic Inputs 1
Number of Line Inputs 0
Number of Instrument Inputs 1
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
MIDI interface No
Word Clock No
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
Width in mm 670 mm
Depth in mm 870 mm
Height in mm 200 mm
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Genau so einfach wie erwartet
Simpelmind, 12.11.2020
Auf der Suche nach einem schlichten, preisgünstigen USB 3.1 Interface bin ich auf das ESI UGM192 aufmerksam geworden.

Vor Jahren hatte ich mit Interfaces von Line 6 und Native Instruments z.T etwas zwiespältige Erfahrungen gemacht (mitunter anhaltendes Pfeifen und Zwitschern während der Gitarrenaufnahme), was vielleicht auf mangelndes technisches Verständnis meinerseits zurückzuführen war.

Nachdem ich mich als typischen Plug & Play User bezeichnen würde, der Ideen mit einem Minimum an Aufwand in die DAW bringen will, empfinde ich das ESI als Offenbarung: Schlichte Software mit den notwendigen Pegelanzeigen, Unkomplizierte Erkennung in der DAW (Samplitude), toller Klang und Dynamikumfang ...
Die kleinen Drucktasten für?s Monitoring an der Front sind etwas fummelig, aber kein Problem.

Ich vermisse höchstens einen Regler für die Monitorlautstärke an der Gehäusefront (dafür ist das Gerät aber einfach zu klein) und evtl. einen Adapter von XLR auf Stereoklinke für den Microeingang. Dafür würde ich einen Aufpreis akzeptieren.

Tolles, einfaches, praktisches Gerät - sehr empfehlenswert!
