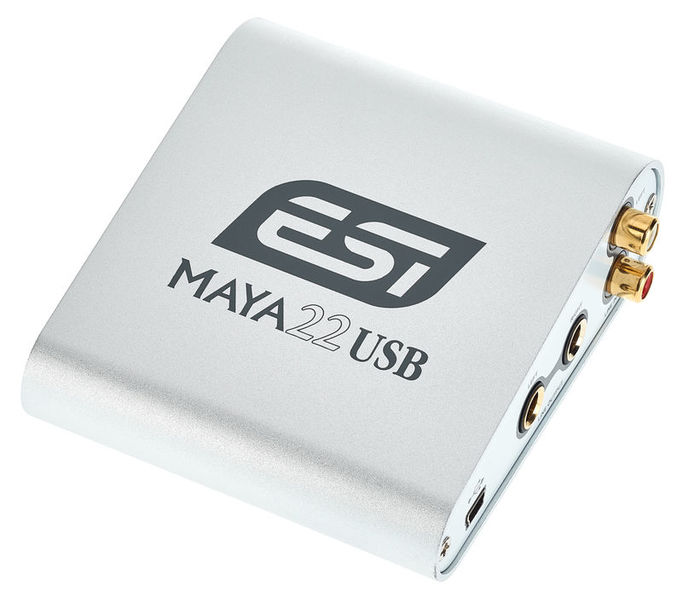

ESI Maya 22 USB

2 Channel USB 2.0 Audio Interface

  • 24-Bit / 96 kHz
  • XLR Mic input
  • Switchable 48V phantom power
  • Hi-Z / Instrument input
  • RCA stereo line input
  • 6.3 mm Stereo line jack output
  • Stereo headphone output
  • USB Bus powered
  • Aluminium casing
  • For PC/MAC, CoreAudio, WDM, MME and ASIO 2 driver

Further Information

Recording / Playback Channels 2x2
Number of Mic Inputs 1
Number of Line Inputs 1
Number of Instrument Inputs 1
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 96 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 100 mm
Depth in mm 100 mm
Height in mm 37 mm
51 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.2 /5
  • handling
  • features
  • sound
  • quality
Total
quality
features
handling
sound
Excellent little box
Paul Tingen, 17.09.2015
I bought this box to be able take it with me while travelling, both for good quality listening to audio via my laptop and making basic recordings just with one mic. The Maya works well on both counts. The unit is small and light enough to fit in my laptop case, and seems compact and strong enough to withstand some abuse--the only weak point being the Phantom power button, so best to buy a small camera pouch for it or something. The recording quality is excellent, almost indistinguishable from that of the Echo AudioFire professional soundcard I have in my studio, as is playback via the jack line-outputs. Strangely, the sound quality of the headphone output is noticeably less rich, but still acceptable.

Installation of the software was easy, and at this price and size one needs to take the lack of a hardware volume button in one's stride. I use a PC with W7 and the only drawback is that the software programming does not appear to be well thought-out in that the control panel is impossible to close, even when the Maya is unplugged. The only way to get rid of the control panel is to untick it in msconfig > startup and restart the computer. But when reconnecting the Maya the control panel is not automatically reactivated. A quick search found the .exe file in the Systems 32 folder, from where I made a shortcut to my desktop, to manually reactivate it when necessary.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
driverless?
06.04.2015
Beware, this product only works with drivers. I bought this because I read in the product description that it is driverless. I had no success getting it to work on either Windows 7 or OSX Lion without the driver and control panel. I had totally intermittent results getting it to work on OSX Lion, and what's worse is that I bought it as a gift for my GF who does not have the 15 years of experience that I have messing around with computer gear. In theory, a great product... Driver nightmare for me, which is exactly the opposite of what was advertised as a "driverless" product. (the driver takes 10 minutes to install, if it even installs, good luck.) Very disappointed. Bought as a gift for an inexperienced person. Oops.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Does not work with Linux
rmmusic, 08.01.2020
It's not expensive and I guess for Windows/Mac it will probably work, but it is not class compliant and I could not get it to work with Linux.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Very impressive.
George7962, 07.02.2014
I needed something small to use on the go. I was looking for build quality, weight, ease of use and sound and the Maya 22 really came out on top. Please don't expect the world - remember this is a 90 euro device - but that said, for what you get, the Maya 22 really is a quality addition to any laptop producer. A*
