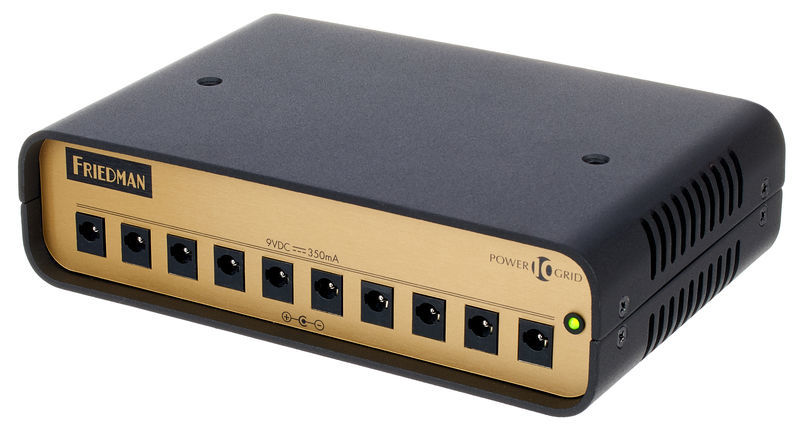

Friedman Power Grid 10

Multitrack for Effect Pedals

  • Universal mains connection of 100-240 V AC
  • Can be used as a riser for mounting pedals on the housing without hum
  • Connections: Output 1-10: 9 V DC @ 350 mA (individually insulated)
  • Dimensions (W x D x H): 171 x 114 x 44 mm
  • Weight: 680 g
  • Made in USA

Included cables:

  • 10 pieces of 2.1 mm coaxial plug to 2.1 mm coaxial plug, length: 50.8 cm
  • 2 pieces of 2.1 mm coaxial connector to 2.5 mm coaxial connector, length: 50.8 cm, reverse polarity
  • 1 piece of 2 x 2,1 mm coaxial connector on 2,1 mm coaxial connector, length: 50,8 cm, voltage doubler 18V
  • 1 piece of 2.1 mm coaxial plug to 3.5 mm mini-jack, length: 50.8 cm

Further Information

DC/AC current DC
Output current in mA 3500 mA
9 V Yes
12 V No
18 V No
Secondary voltage No
Multi-output power supply Yes
13 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • quality
Text ratings for this product are available in another language only so far
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Effectivement vraiment isolante
FenderGallagher, 31.10.2018
Après avoir testé des alims soit disant isolées/isolantes qui faisaient quand même du buzz ou du hiss dans l'ampli, me voilà enfin avec une alim silencieuse. Je l'ai même ouverte pour voir et effectivement, la qualité des transfos toroidaux n'a rien à voir avec celles que j'avais avant...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
High-end Netzteil
sch8, 28.03.2020
Ich habe mir das Power Grid für ein recht großes Pedalboard Projekt geholt, mit Pedalen, die 300+ mA Strom brauchen. Funktioniert super, keine Nebengeräuche/Rauschen. Das Netzteil ist leicht und kann ohne Probleme auf oder unter das Board montiert werden. Ich habe es bei einem Rockboard Cinque unter dem Board mit Pedalboard Tape geklebt und es sitzt stabil. Die mitgelieferten Kabel reichen von der Länge aus. Definitive Kaufempfehlung.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Viel Leistung - Kein Brummen
Chris-HH, 13.11.2017
Das Friedman Power Grid 10 versorgt bei mir 8 Effekte mit 9 und 18V.

Die Kabel sind für meine Zwecke ausreichend lang und der Stecker ist auch schmal genug um in mein Wah zu passen (da hatte ich bei anderen Kabeln das Problem das ich sie etwas zurecht schnitzen musste).

Es stehen an alle Ausgängen 350 mA zur Verfügung was für meine Effekte mehr als ausreichen ist.

Was leider fehlt ist ein Netzkabel was auch in deutsche Steckdosen passt ( ist aber korrekt abgebildet von Thomann und war keine Überraschung für mich) - nur 9V/18 - 12V gibt es nicht.

Alles in allem bin ich sehr zufrieden.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
The Sound Of Silence !
Xameto, 03.04.2018
Je ne parle pas de Simon & Garfunkel là, je parle de cette magnifique, fantastique, sublime alimentation !
Elle fait exactement ce qu'on lui demande, elle alimente tout ce qu'on veux (enfin jusqu'à 10 pédales quoi) et elle se fait oublier !! Pas un son, pas un buzz rien de rien de rien !!

Je recommande absolument !!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
