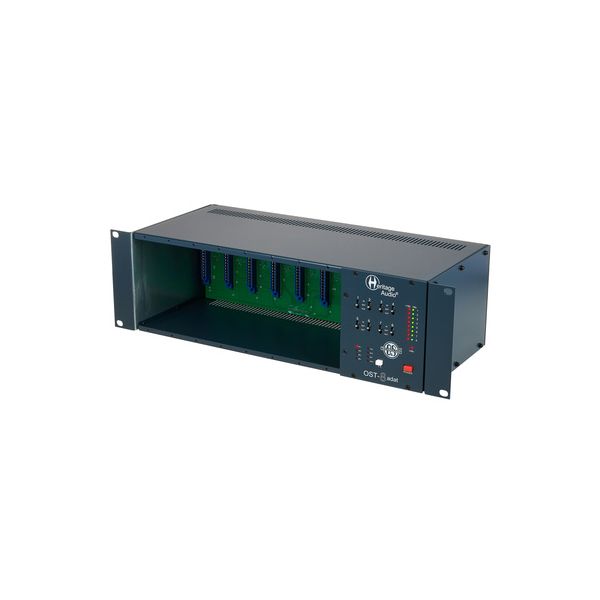

Heritage Audio OST-8 ADAT B-Stock

B-Stock with Full Warranty
Return that may have slight traces of use.

Empty housing

For up to eight 500 modules
8-Channel AD-converter 24-bit / 192 kHz
On Slot technology (power regulation for each individual slot)
Link function (each channel can be linked to the next channel at the push of a button)
400 mA power supply per module
Phantom power (140 mA max. total requirement)
Independent status LEDs per slot
8 XLR inputs
2 Sub-D25 inputs
8 XLR outputs
1 Sub-D25 output
2 ADAT outputs (SMUX)
Word clock input and output: BNC
Sheet steel housing with aluminium front panel
Construction: 19" / 3U
Dimensions (W x H x D): 482 x 134 x 200 mm
Weight: 4.7 kg
Includes external power supply unit
