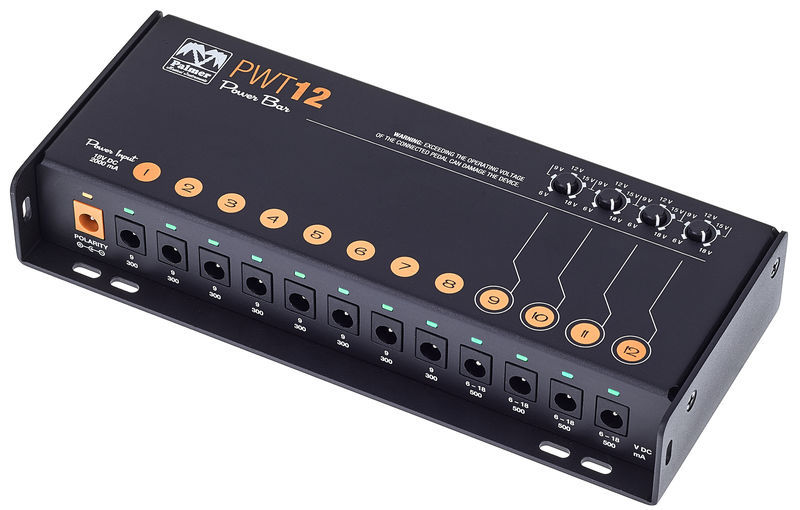

Palmer PWT 12 MK 2

Multi Power Supply for Effect Pedals

  • 4 Outputs - adjustable from 9 to 18V
  • 2 of which can be connected together with a Y-cable (not included in delivery) and deliver up to 36 V output voltage
  • The maximum capacity of the 9 V outputs is 300 mA, the variable outputs 500 mA
  • Connections: Output 1-8: 9V DC @ 300mA (individually isolated) - Output 9-12: 9-18V DC @ 500mA (individually isolated)
  • Dimensions: (W x D x H) 193 x 70 x 30 mm
  • Weight: 400 g
  • Included cables: 12 pieces of 5.5 x 2.1 mm coaxial plugs to 5.5 x 2.1 mm coaxial plugs

Note: total power consumption of all connected pedals must not exceed the total capacity of 2,000 mA!

Further Information

DC/AC current DC
Output current in mA 2000 mA
9 V Yes
12 V Yes
18 V Yes
Secondary voltage Yes
Multi-output power supply Yes

These are other customers' choices:

Customers who looked at this item have bought these:

Palmer PWT 12 MK 2
45% bought this exact product
Palmer PWT 12 MK 2
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$130 Add to Basket
Harley Benton PowerPlant ISO-2 Pro
8% bought Harley Benton PowerPlant ISO-2 Pro $64.95
Thomann NT 0910 AC/PSA
7% bought Thomann NT 0910 AC/PSA $9.40
Palmer PWT 08
6% bought Palmer PWT 08 $90
Harley Benton PowerPlant ISO-12 Pro
5% bought Harley Benton PowerPlant ISO-12 Pro $94
Our most popular Guitar Effect Power Supplies
170 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • quality
Total
quality
Really nice power supply
nickstomp, 20.11.2019
I really like this power supply. All the 9V have a linear regulator on the output (super low noise!!!)
The only complaints are:
- only straight cables: I have also the palmer PWT05 and with that there were a lot of adapter cables, a daisy chain a cable to combine two output, etc. In here you only find straight cables.
- this fit badly in the palmer pedalboards space: palmer please test your product together!!
- also the cables: why having straight and angled plug, put a double angled plug instead!!! less space
- also the screw holes for fitting: why only on one side??
- last thing: is very difficult to set a voltage with the variable output please put something with clicks -> dip switches!!!

Overall I'm really pleased about the quality of this power supply (especially the electronics is really good) and for the price but please palmer put a little more thought in the mechanical design of your products!!!

NB: it powers the hx stomp with two of the variable outputs no problem!!!! (or 4 of the fixed 9v) you will need to buy a current doubler cable and a 2,5mm pin adapter
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Excellent Product
kTim, 30.12.2019
I use it to power up my pedal board. My pedals board has the following pedals and they are all work just fine with the plamer.
Tube Screamer
Digi-tech polara reverb
Delay Llama Jam
Freeze harmonics
Boss ch-1 chorus
Overall the pedal does what is says and I definitely recommend it.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
GlowingMan, 05.02.2020
The first unit I received was not functioning at all, thanks to the never disappointing customer service of Thomann I quickly got it replaced with a new one, which had no problems and works well. No noise or other problems while powering pedals. With the 500mA output I can power with no problems Strymon or similar. Very good options for the price you pay. Maybe constructing quality is not top notch, as some faulting unit may pop up, but worth the try in my opinion.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Once of the best PSU I ever used!
Rain214, 02.08.2019
It is a genuine power house for my Pedals, it has enough juice for my 8 Analog pedals together with the HX stomp, by using the current doubler and plugging it to socket 9 and 10 that gives 9v 1A for my HX stomp, no sound and it's really quiet even if the Pitchfork is also connected which I'm really happy about. The size is just right, not too thick and it's also not that heavy. The build quality is also very durable. I think it will last a long time on my pedal board.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
