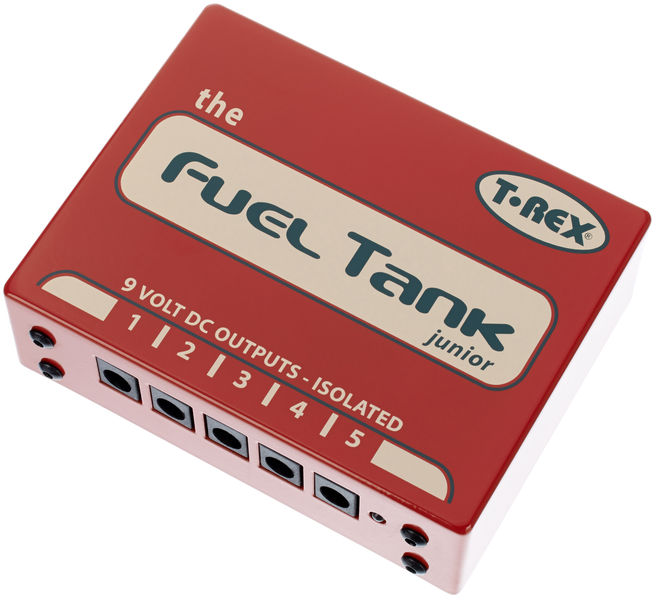

T-Rex Fuel Tank Junior

Power Supply

  • 5x 9V DC (120 mA each; 600 mA total)
  • Electrically isolated outputs
  • Voltage selector from 115 to 230 V
  • Red LED lights up when in operation
  • Incl. 5x 50 cm DC cables with 2.1 mm DC to DC and 1x mains power cable
  • Dimensions without packaging (W x H x D): 100 x 38 x 78 mm
  • Weight: 0.47 kg

Further Information

DC/AC current DC
Output current in mA 600 mA
9 V Yes
12 V No
18 V No
Secondary voltage No
Multi-output power supply Yes

These are other customers' choices:

Customers who looked at this item have bought these:

T-Rex Fuel Tank Junior
26% bought this exact product
T-Rex Fuel Tank Junior
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$88 Add to Basket
Harley Benton PowerPlant ISO-2 Pro
13% bought Harley Benton PowerPlant ISO-2 Pro $69
Thomann NT 0910 AC/PSA
10% bought Thomann NT 0910 AC/PSA $9.90
Harley Benton PowerPlant ISO-5 Pro
9% bought Harley Benton PowerPlant ISO-5 Pro $49
Harley Benton PowerPlant Junior
6% bought Harley Benton PowerPlant Junior $30
Our most popular Guitar Effect Power Supplies
346 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • quality
Total
quality
Reliable
RattlesnakeBass, 28.04.2021
Been using this power supply for about 4 years and by saying reliable I mean that I almost forgot that I have it :) Had no issues at all both in rehearsals and on stage. Also for me it solved some grounding issues and killed all static buzzing sounds on my guitar.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Frustrating
JB-UK, 24.10.2018
Bought this to fix daisy chain problems.

It's well built, well packaged and generally pretty solid. However, it doesn't appear to power a couple of the boutique pedals on my board properly which is concerning. They have no life at all, just the odd flickering LED, and one still has a pretty aggressive hum when engaged. I've swapped both of these pedals out for duplicates of the same pedal and the problem persists. Both pedals expect to receive the usual 9v supply. It functions well with other less demanding pedals (it's fine with an all BOSS board for example), but if you're running boutique pedals then try it out before you jump in. It's a lot of money for something that doesn't immediately do a better job than something you can pick up for 10% of the price...

I've tried troubleshooting this and can't find any reason for the problems other than the Fuel Tank. I will of course update this review if and when I find a solution/reason for the problems.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
All you need
Keman, 15.09.2020
If your board is not like boeing control panel this power supply will do the job.
There is noise but pretty much low. Not noticeable.
Pretty bad it got sold out.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
happy-customer, 19.10.2018
I use T-Rex Fuel Tank Junior as my only power supply with T-Rex 56cm pedal board. Let's be honest - how many effects do you need to play with at once? 5 isolated outputs that can work with more than 5 effects, and 18-volt gear can also be connected - that is all what I have ever wanted. Noiseless, easy to use, durable metal case and really good-looking peace of gear that is small enough not to take much space, and fits under the t-rex pedal-board perfectly. The voltage switch (115v/230v) makes it ready for playing abroad and it is safely hidden behind a plastic cover so it is impossible to change settings by accident. There is really nothing i don't like about this item. Highly recommended!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
