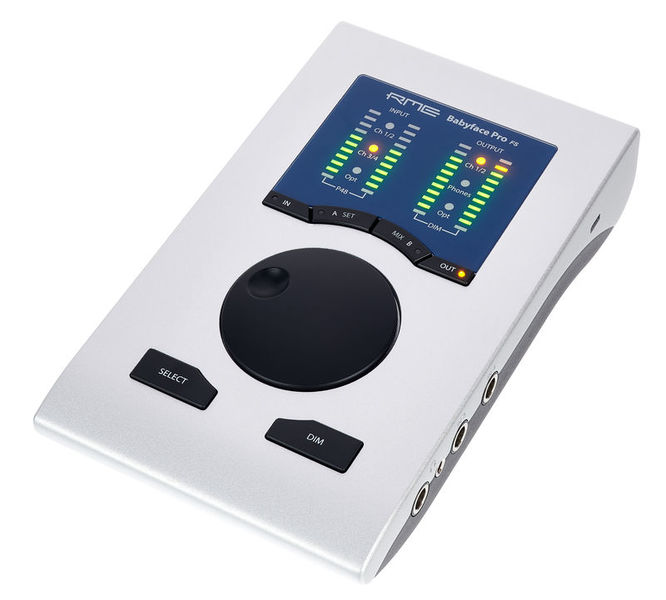

24 Channel USB Audio Interface
- 24 bit / 192 kHz
- 12 Inputs and outputs in total
- All inputs digitally controlled
- 4 Analogue inputs for microphone (XLR, SNR 113.7 dB), line level and instrument (6.3 mm jack, line SNR 116.3 dB)
- Microphone inputs with up to 65 dB gain, pad, overload protection, and 48 V phantom power
- 4 Analogue outputs: 2x XLR and 2x outputs for high- and low-impedance headphones (90 mW output power)
- Optical input and output -- either ADAT (SMUX is supported) or SPDIF
- MIDI input and output via breakout cable
- USB 2.0 (3.0 compatible)
- RME TotalMix FX software includes EQ, reverb, and delay
- Class compliant
- SteadyClock FS for lowest amount of jitter and highest jitter immunity
- Optimised driver for PC and Mac
- Stand-alone operation possible
- USB powered
- Dimensions (W x H x D): 108 x 35 x 181 mm
- Weight: 680 g
- Includes USB-C cable
available since
December 2019
Item number
476426
sales unit
1 piece(s)
Recording / Playback Channels
12x12
Number of Mic Inputs
2
Number of Line Inputs
4
Number of Instrument Inputs
2
Number of Line Outs
4
Headphone Outs
2
Phantom power
Yes
Number of S/PDIF Connectors
1
Number of ADAT Connectors
1
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
No
MIDI interface
Yes
Word Clock
No
Max. sample rate (kHz)
192 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
Yes
Incl. power supply
No
USB Version
2.0
Width in mm
108 mm
Depth in mm
181 mm
Height in mm
35 mm
Connection Format
USB port Type B
Included in delivery
USB cable, breakoutcable, software
Zero latency monitoring
1
