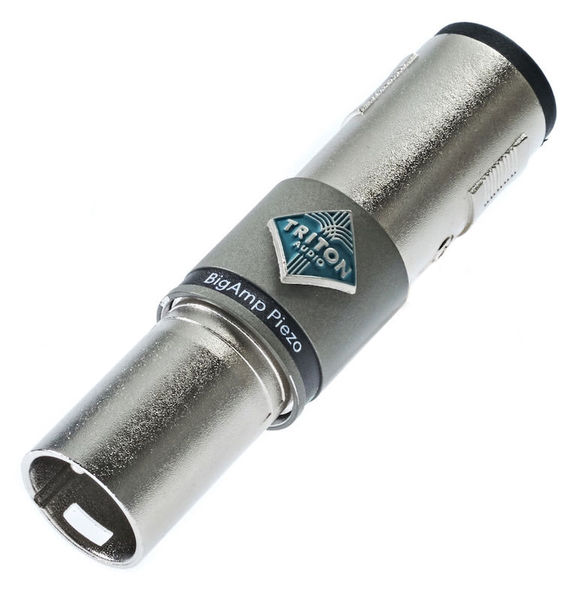

TritonAudio BigAmp Piezo

11

Instrument Preamplifier for Piezo Transducers

  • 6.3 mm jack female to XLR 3-pin male (balanced)
  • Low noise Class A JFet amplifier
  • 3 dB amplification
  • Max. input level 15 dBv

Note: Requires 24/48 V phantom power.

Available since May 2018
Item number 439199
Sales Unit 1 piece(s)
Channels 1
Number of microphone inputs 0
Instrument input Yes
Tubes No
Compressor/Limiter No
Equalizer No
De-Esser No
Phantom power No
Phase Reverse No
External effect loops No
Analogue Outputs XLR
Digitale Outputs 0
Headphone connection No
Level Meter No
Design Adaptor
$63
The shipping costs are calculated on the checkout page.
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
1

11 Customer ratings

4.8 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

handling

features

sound

quality

10 Reviews

L
Very good impedance adaptor + preamp for piezo microphones
LutherD 15.07.2023
I'm a field recordist and thus use a variety of DIY contact microphones and piezo based contact microphones and hydrophones. The mics on the cheaper side don't come with their own impedance adaptor or preamp.

A piezo mic usually has an impedance that is a lot higher than a standard microphone. Without an impedance adaptor, one usually gets thin and weak signal (the impedance mismatch works as a high pass filter).

The Bigamp Piezo solves this by handling 7.5 Mega Ohm at the input side, which is enough for practically all piezo elements out there, and more than many similar impedance adaptors. This way you get a lot more out of your piezo based microphone, and even makes a DIY contact microphone sound full and proper.

Unfortunately, it is not the quietest of impedance adaptors I have tried, but you won't hear it on all but the quietest of sounds. Because it also works as a tiny preamp (which seems to provide more than the stated 3db of amplification), you don't need to deliver as much gain to your microphone, which seriously helps in offsetting additional noise.

As a bonus, the fact that it makes a signal balanced makes that you can handle long cable runs.There also very sturdy. My bigamp piezo's have travelled everywhere with me, from the tundra to the rainforest and they look it (a bit), but they still work great.

The small form factor also makes them very easy to use, even when on the move.

Recommended for all your contact mic (and diy hydrophone) experiments.
handling
features
sound
quality
4
0
Report

Report

w
Recommended
wimverbr 07.01.2021
I mostly use this as a pre-amp for DIY contact mics, in a field recording context. I would highly recommend it for this purpose, as it will improve the low end of the frequency spectrum a lot!
handling
features
sound
quality
2
0
Report

Report

g
stable, handy, and effective
gilman 25.04.2023
i have built my own piezo preamps. by design and other factors this is a good buy. This will save you many hours. IMPORTANT NOTE: this is +48v phantom powered. The only downside of such a feature is that you will probably have a lot of trouble if you want to experiment, such as running your piezo through a bunch of effect pedals or whatnot (it's not impossible if you have a mixer that can do sends or with multiple outputs).
handling
features
sound
quality
1
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
W
Äußerst vielseitig einsetzbar, super Klang.
Wernie 02.08.2021
Die Elektronik des BigAmp ist minimalistisch. Im Prinzip handelt es sich lediglich um einen symmetrischen Impedanzwandler mit 2 FETs und „open drain" Ausgang (hochohmig). Das heißt, die Verstärkung wird durch die Vorwiderstände der Phantomspeisung (in der Regel 6,8 kOhm) und den Eingangswiderstand des Mikrofonverstärkers beeinflusst. Daher ist die Verstärkung nicht bei allen Mischpulten exakt gleich. Das Teil liefert einen sehr rauscharmen, detailreichen Klang mit ebenmäßigem Frequenzgang bei akustischen Instrumenten und einen glasklaren, obertonreichen Sound bei magnetischen Pickups (super für Strat). Der Klang wird umso wärmer, je höher der BigAmp ausgesteuert wird, ähnlich wie bei einer Röhrenvorstufe. Hörbare Verzerrungen treten aber erst bei Pegeln auf, die auch den Mikrofonverstärker an seine Grenzen bringen. Wegen der super vielfältigen Einsatzmöglichkeiten und dem günstigen Preis volle Punktzahl. Wer etwas mehr ausgeben will, kann zum Radial SB-4 greifen, der den Klang noch weniger verändert und einen niederohmigen Ausgang mit konstanter Verstärkung bietet.
