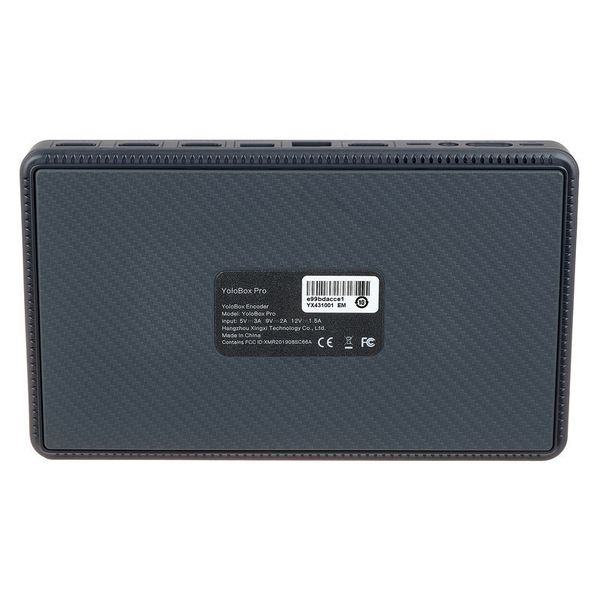

Start 360°
Portable live stream studio
- Full HD Live Stream
- Serves as video switcher, encoder/streamer, monitor, recorder or audio mixer
- Direct integration with YouTube / Facebook / RTMP(s)
- Integrated simultaneous streaming
- Streaming via Ethernet, Wifi or LTE 4G
- Live switching between up to 8 video sources (up to four local cameras)
- Image and video import from SD card
- Add logos, watermarks, comment overlays or rolling captions possible
- Add and edit customisable scoreboards
- Integrated lower thirds
- 8" LCD touch screen
- Record to SD card (up to 128GB)
- Video encoding: H.264
- Audio encoding: AAC (44.1k)
- Video recording format: MP4
- Audio input format: 16-bit / 16kHz - 48kHz
- Video input format: 1080i / 720p / 1080p
- Live broadcast resolution: 540p / 720p / 1080p
- Power supply via USB Type-C
- Battery life up to 4.5h
- Dimensions (W x H x D): 218 x 27 x 129 mm
- Weight: 750 g
- Compatible power supply unit 515839 (not included)
Connections:
- 3 HDMI inputs
- 1 HDMI output
- 1 Audio in/out: 3.5 mm jack
- 1 Stereo line input: 3.5 mm jack
- 1 Microphone input: 3.5 mm mono jack)
- 1 USB input (type A)
- 1 Ethernet port
- 2 USB-C ports
- 1 Flash unit for camera connection
- 1 SD card slot
- 1 SIM card slot
available since
December 2021
Item number
532540
sales unit
1 piece(s)
Design
Field Recorder
Recorder
Yes
Screen size [Inches]
8"
Recording resolution
1080p
Record tracks
1
HDMI input
Yes
SDI input
No
HDMI Output
Yes
SDI Output
No
Streaming Function
Yes
Battery
Included
Storage type
SD Card
Audio IN
Yes
Audio Monitor
Yes
Loudspeaker
No
Scopes
No
Tally
No
Recording mount
1/4 "internal thread
Type
Video Mixer
