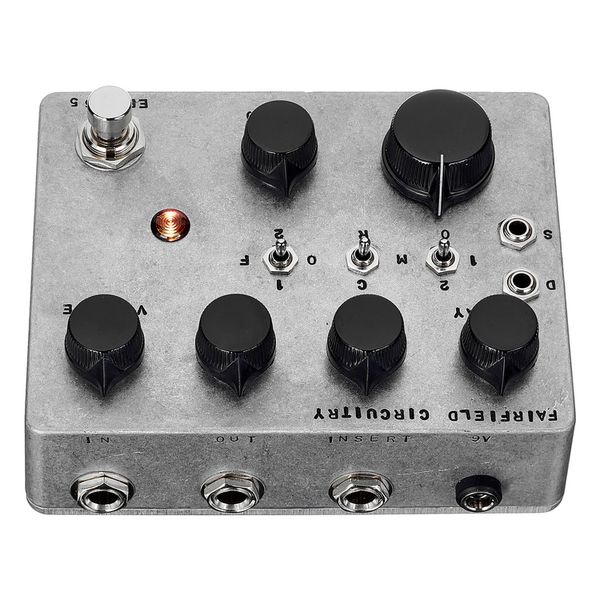

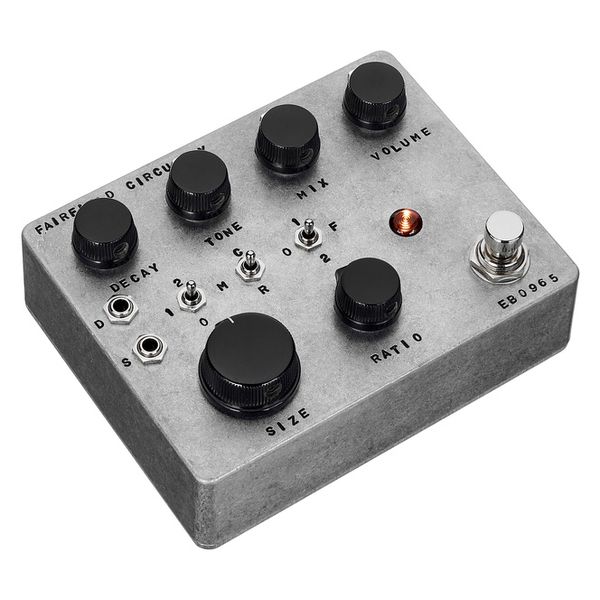

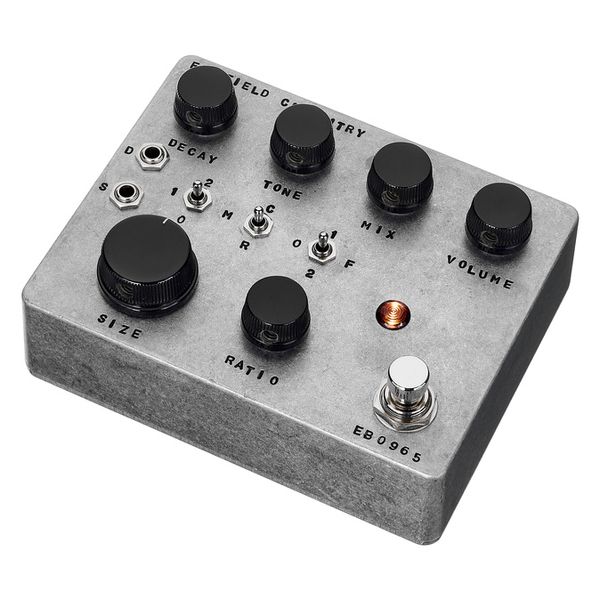

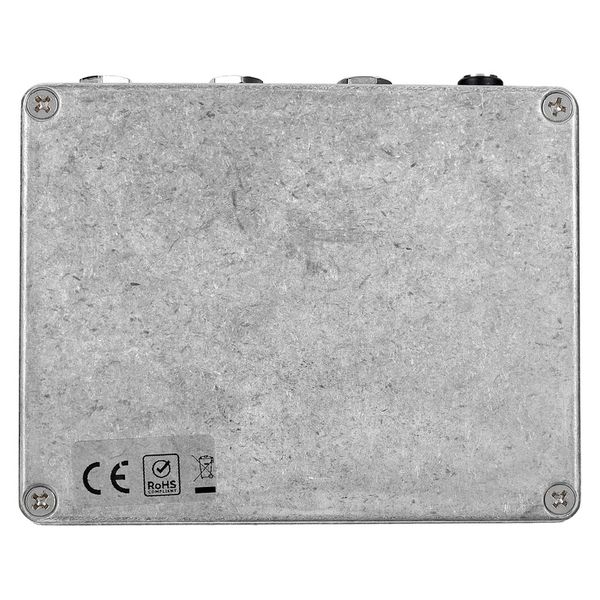

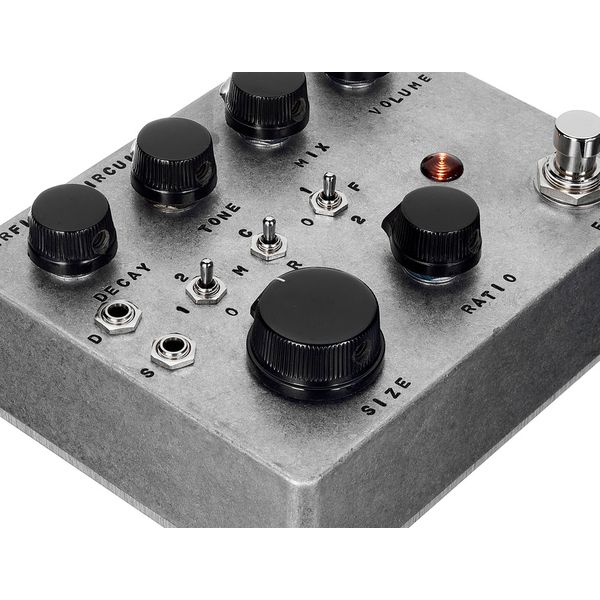

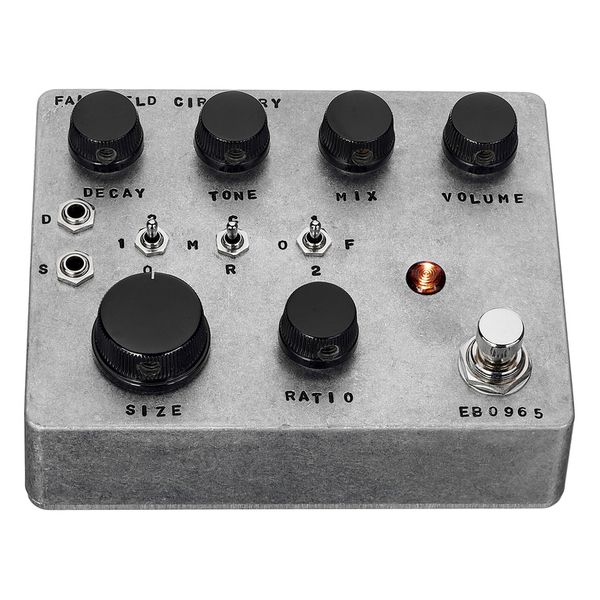

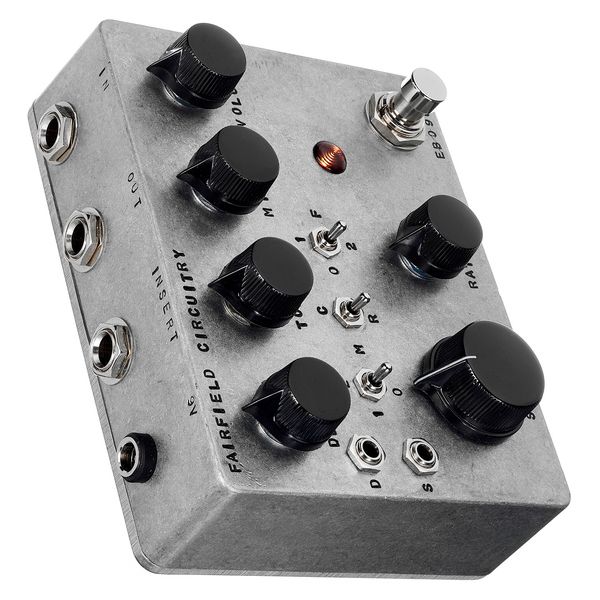

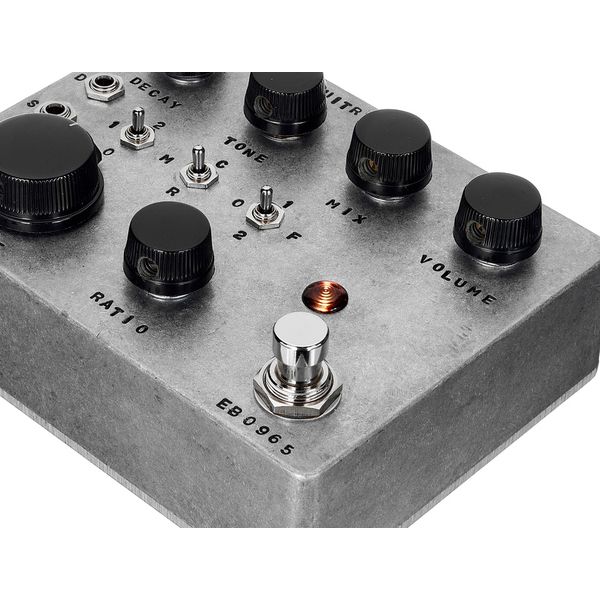

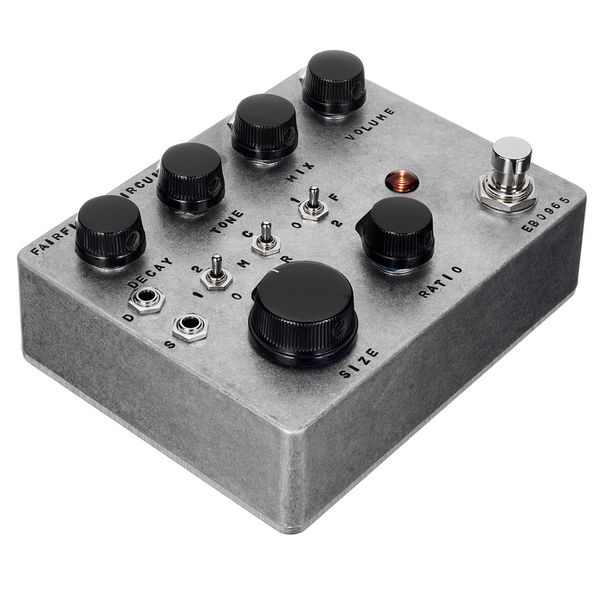

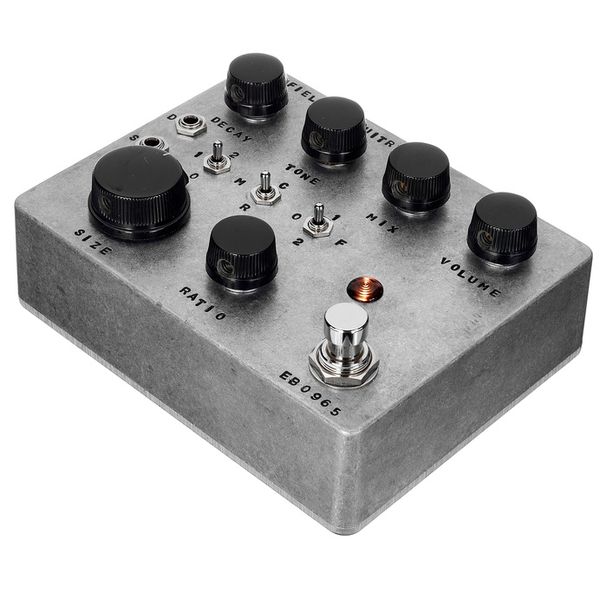

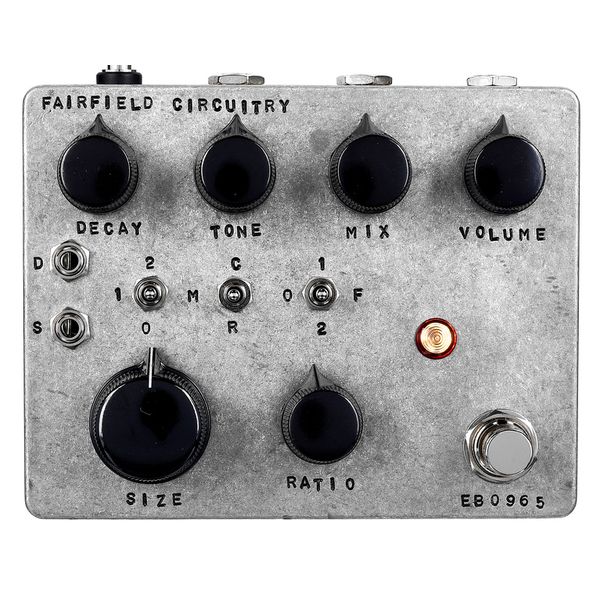

Fairfield Circuitry Placeholder Analog Reverb

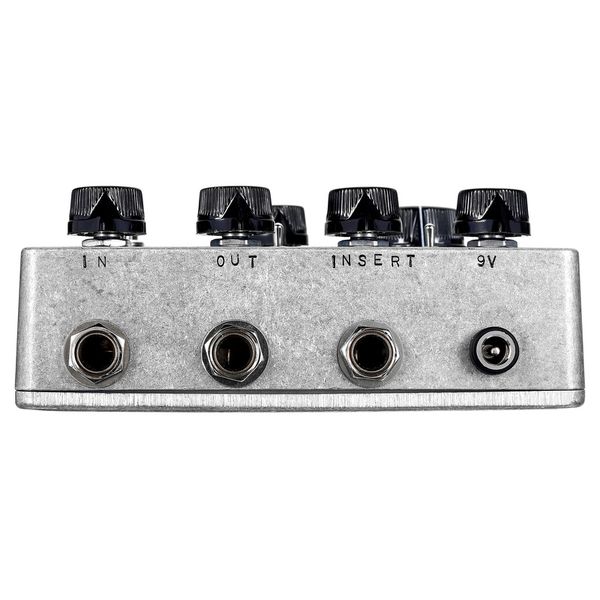

Fairfield Circuitry Placeholder Analog Reverb; Effects Pedal for Electric Guitar; an analogue implementation of a Digital Reverb Algorithm using BBDs, Mixers, VCAs Filters allowing quick Echo density even with only three Delay-Lines; Controls: Decay, Tone, Mix, Volume, Size, Ratio; Switches: Modulation Depzth: None/Slight/More, Modulation Type: Random/Both/Cyclical, Low Pass Filter Cutoff: 2kHz/8kHz/4kHz; LED: Effect On; Footswitches: Effect Bypass; Connections: Input (1/4" Jack), Output (1/4" Jack), Insert (1/4" TRS-Jack), CV Inputs Decay & Size (2 x 1/8" Jack); Power Supply connector: Barrel Connector 5.5 x 2.1 mm, center negative; Current Draw: 80 mA; powered by a 9 V DC Power Supply (not included); suitable optional Power Supply: Item no. #409939; Dimensions: (W x D x H): 119 x 97 x 48 mm (4,7" x 3,8" x 1,9"); Weight: 362 g (0,8 lbs); Made in Canada; Note: Battery operation is not supported
-
Item number 642216
-
Sales Unit 1 piece(s)
