Sennheiser XSW 1-835 E-Band Vocal Set


Diversity UHF Wireless System

  • With antenna diversity
  • Frequency range E-Band: 821 - 832/ 863 - 865 MHz
  • Dynamic E835 capsule
  • 24 MHz bandwidth
  • 8 Frequency banks with up to 10 presets for each
  • Integrated antennae
  • Scan function to find free frequencies
  • Audio-Frequency range: 50 - 16,000 Hz
  • XLR- and jack output
  • Adjustable squelch
  • Mic/Line switchable

Set comprises

  • SKM-XSW35 Hand transmitter with dynamic capsule and cardioid polar pattern

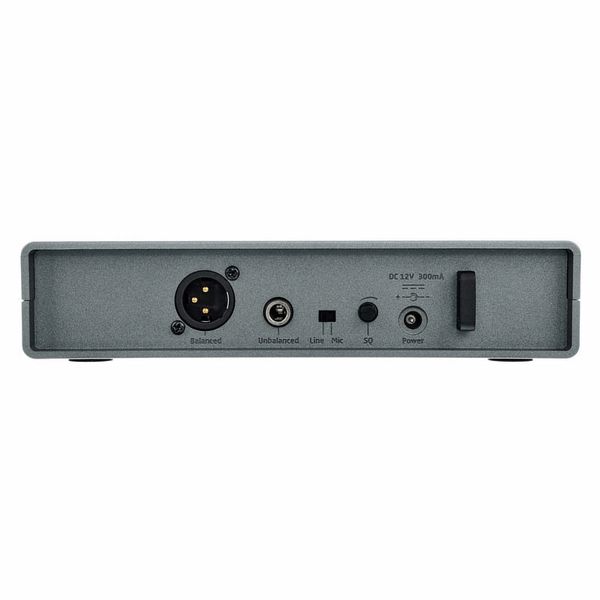

  • EM-XSW1 Diversity desktop receiver
  • NT 12-5 CW power supply
  • MZQ1 microphone mount
  • 2 Aa-Batteries
Available since March 2017
Item number 408728
Sales Unit 1 piece(s)
Transmission technology analog
Channels Handheld Transmitter 1
Capsule Type Dynamic
Pattern Cardioid
Receiver Type Stationary
Frequency 823 MHz – 832 MHz
Output XLR
Charging System No
Integrated Battery No
Diversity 1
Receiver Width in mm 200 mm
Receiver Height in mm 42 mm
Receiver Depth in mm 127 mm
Receiver Weight in kg 0,4 kg
Transmitting Power in mW 10 mW
Selectable Frequencies 80
Switching Bandwidth in MHz 24 MHz
Frequency Scan 1
Removable Antenna No
Battery Status Monitor 1
Rackkit No
Show more
The shipping costs are calculated on the checkout page.
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee

65 Customer ratings

4.7 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.




36 Reviews

As expected from Sennheiser
Trba 28.12.2019
I bought this mic for our local church, primarily as a speaking mic.
It was a a toss up between this and Shure, but because I'm using E935's for singing and absolutely love it, decided to go for Sennheiser.
Straight out of the box, setup was super easy. Mic and receiver synced up on channel 11 and honestly, there is nothing else to do. Reception is crystal clear, mic is what you've come to expect from Sennheiser - clear, loud and easy to EQ. Microphone feels well made and sturdy as well. It has an easy to operate ON/OFF switch at the lower end of the mic that is well hidden so you don't accidentally switch it off! There is also another switch to mute the mic on the more obvious, accessible part of the mic. All I can say is that I haven't come across anything that I don't like yet. If I was going to be picky, it doesn't come with a case - a nice case like more expensive models would be nice!


good mic
varrnas 24.09.2020
good quality for good price.


Good product
BelieveA 20.11.2023
The sound quality is exactly what I expected. It’s really light compared to other products - Shure, T.bone.

A very good value for money


google translate fr
Unfortunately there was an error. Please try again later.
Très bon micro
Raaphaeel 26.04.2020
Micro acheté pour du live, mais aussi pour des répétitions. Il fait parfaitement le job. Après plusieurs mois d'utilisation, je vous propose mes impressions:

Points forts:
- Le bouton de mise en marche est très bien placé et évite de l'éteindre sans faire exprès, c'est même impossible
- Son très correct, sans retouche d'égalisation ni rien il produit un son très agréable et retranscrit très bien la voix
- Le boîtier sans antennes permet une manipulation très simple et un transport très facile également
- Peu de feedback remarqué (sans utiliser d'autres machines que le micro, une simple carte son et une enceinte), de plus le bouton MUTE permet de facilement couper le son du micro en cas de problème (je précise que le chanteur était très près de l'ampli en question)
- Le support micro pour mettre sur un pied donné avec est très bien et a l'air robuste

Points faibles:
- Le micro capte beaucoup les sons quand on le manipule, donc la main qui se déplace sur le micro (boum boum) y compris lorsqu'on le met sur le pied micro ou qu'on l'y enlève
- Le micro est en plastique et très léger, une simple chute pourrait le casser
- On ne peut pas ajouter un boîtier transmetteur entre le micro et le boîtier récepteur donc pas de retour in-ear possible à priori

A voir désormais dans la durée, mais pour le moment, c'est un achat complètement validé chez Sennheiser, et que je referai pour du futur matériel sans problèmes !
