16-Channel Mixer

  • For studio, stream and live applications
  • 9" Multi touchscreen
  • 9 Motorised faders
  • "Touch and Turn" control
  • 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
  • 16 Mono Inputs + 1 Stereo + 2 FX Return
  • 8 Outputs
  • Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
  • DAW Remote Feature (HUI)
  • OSC support for installations
  • Editor app available for tablet (tablet not included)
  • 16 x 16 DANTE interface with 16 inputs and outputs
  • 6 Freely assignable buttons
  • 2 x 2 Channel recording/playback via USB port
  • 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
  • 8 Groups with DCA roll-out
  • Dimensions (W x H x D): 320 x 140 x 455 mm
  • Weight: 6.5 kg
  • Includes Steinberg Cubase AI and VST Rack Elements

Connections

  • 16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
  • 8 Line outputs: XLR
  • 2 x Dante input (RJ45)
  • Stereo headphone output: 6.3 mm jack
  • USB to Host
  • USB to Device
  • Ethernet RJ45
  • Available since September 2023
  • Item number 564038
  • Sales Unit 1 piece(s)
  • User Interface Physical/remote
  • Number of faders 9
  • DSP Input channels 16
  • Mic Preamp 16
  • Physical outputs 8
  • Digital stagebox connection No
  • Hotspot No
  • Multitrack Record Yes
  • integratated Player/Rec via USB/SD stereo
  • 19" Rackmount Optional
  • Max.number of input channels 16
  • Microphone Inputs 16
  • Analog Line Inputs 16
  • Analog Line Outputs 8
  • DSP Output Channels 8
  • Busses 6
  • Mono-Line Input 16
  • Stereo-Line Input 0
  • Motorfader Yes
  • Computer interface USB
  • Ethernet Yes
  • Special Features DANTE, 18x18 USB Audio Interface
  • Soundcard interface USB-B
  • Recorder Format WAV/MP3
  • RTA No
  • FX Processor 2
  • 31 Band EQ 0
  • Delay Input Yes
  • Delay Output Yes
  • Matrix 2
  • DCA/VCA Groups 0
  • Midi Connector No
  • Sample rate 96 kHz
  • Separate Personal Monitor system No
  • Expansion Card slots 0
  • Digital ADAT No
  • Digital SPDIF No
  • Digital AES3/ASESEB No
  • Digital MADI No
  • Digital Dante Yes
  • Case No
  • Height 140 mm
  • Width 320 mm
  • Depth 455 mm
  • Weight 6,5 kg
$1,850
The shipping costs are calculated on the checkout page.
In stock
1

Touch & Play

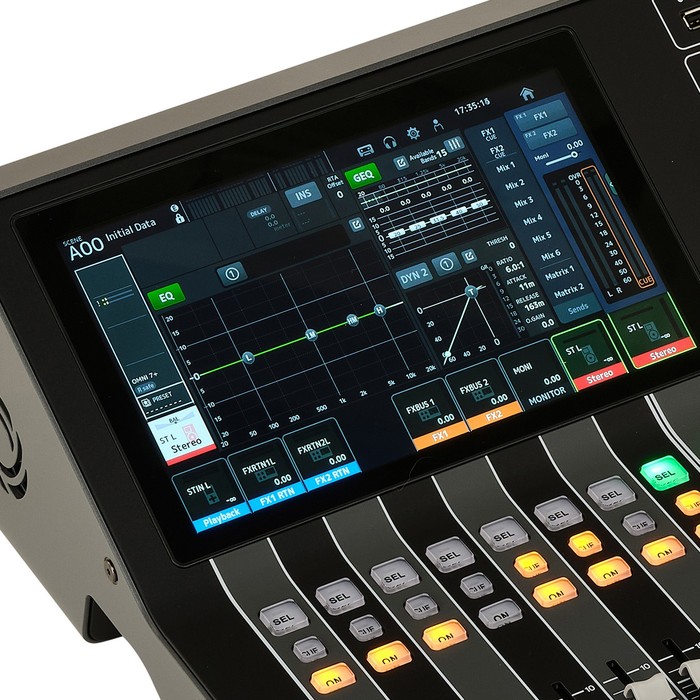

The Yamaha DM3 is a versatile mixing console for multitrack recordings, live streaming, compact post-production setups, and live mixing applications, with an impressively, almost surprisingly compact and lightweight design. A large touchscreen combined with an array of multi-functional controls ensures intuitive operation, while the high 96kHz sample rate enables even smaller studios to achieve professional recording quality. QuickPro presets support efficient sound design, offering ready-made settings for a wide range of microphones and output devices from well-known manufacturers. Extensive connectivity further enhances flexibility, with Dante networking distinguishing the DM3 from the DM3S, and multi-track recording via USB-to-Host making it easy to set up fast and reliable live streams. Freely assignable analogue Omni Outs, a network connection, and a software package that includes Steinberg Cubase AI with VST Rack Elements complete a well-rounded, production-ready package.

Yamaha DM3 16-channel digital mixer

Small and versatile

Weighing just 6.5kg and measuring only 320mm in width, the Yamaha DM3 really is an impressively compact and lightweight mixing console, ideal for flexible, modern production environments. The angled surface features a responsive 9" touchscreen giving users intuitive control over a whole host of features; for instance, simply use two fingers to draw EQ curves, for fast and precise sound shaping. Below it, a space-saving multi-functional touch-and-turn button and fader strip provides flexible operation, supporting custom fader banks with multilingual labelling and optional remote control via tablet. Dante compatibility with 16 inputs and 16 outputs, along with support for OSC over Ethernet and MIDI over USB, ensures seamless integration into professional setups. With 200 customisable presets, 18 effects across two multi-effect processors, built-in GEQs, and simple stereo recording onto a USB stick, the DM3 is a powerful performer.

Inputs on the Yamaha DM3 16-channel digital mixer

Entry-level mixing with powerful sound

For anyone looking to edit recordings at home or in a small professional studio, the Yamaha DM3 offers a powerful package in an exceptionally compact format. With Cubase AI included, both semi-professionals and experienced sound engineers can save time and costs when post-processing individual tracks, while ambitious beginners can achieve fast results using the extensive QuickPro presets. More advanced users can take these presets as a starting point and tailor them to their own needs. Livestreamers will appreciate the console's lightweight design, and club or studio operators with an international roster will benefit from the ability to label the interface in multiple languages.

Yamaha logo on the DM3 16-channel digital mixer

About Yamaha

For decades, Yamaha has been one of the world's best-known manufacturers of musical instruments and audio technology. The Japanese company's long history began at the end of the 19th century with the harmonium. The product range has constantly expanded since then, which has made Yamaha one of the few manufacturers today to offer almost the entire range of existing musical instruments: From upright and grand pianos to guitars, wind instruments, and bowed string instruments and from drums and percussion to electronic keyboards and synthesizers. Yamaha is also a major force in the field of audio engineering as a manufacturer of mixing consoles, amplifiers, PA systems, and more. Yamaha's guiding principle is to combine traditional craftsmanship with state-of-the-art technology.

Fader on the Yamaha DM3 16-channel digital mixer

From home studio to live mix

In the recording studio, the Yamaha DM3 can serves as the central hub for music production, making producers' workflow smoother and more efficient. Having prepared scenes is invaluable not only for live streaming via a computer connected through USB, but also for podcasts and interviews, ensuring consistency and efficiency. In live streaming setups, the DM3 can function as a dedicated streaming mixer while another console handles the live mix, providing flexibility in complex productions. In the studio, the VST Rack Elements plugin included here allows users to build a custom effects rack tailored to their needs; similarly, when multiple acts perform in succession, scenes can be saved during sound checks, so everything is instantly ready for the next band. With the DM3 StageMix app, each performer can create their personalised monitor mix, while remote FOH control of the console is simple and intuitive.

In the spotlight

6 Customer ratings

4.7 / 5

handling

features

sound

quality

5 Reviews

google translate de
Unfortunately there was an error. Please try again later.
-
DM3 (Dante; Firmware 3) Pro-[!Auto-]Mixer auf Grundfläche einer Klappbox
--fx-- 03.03.2025
(Vorab: Gerät wurde erst -laaaange Wartezeit- vor wenigen Tagen geliefert.. Viel Zeit war noch nicht um Eindrücke zu sammeln. Diese Ergänze ich ggf. später hier... Daher die "Sterne" auch vorab)

Mein-Primär-Ziel: kompakter (!!) Master-Mixer für kleinere (vor Allem) DJ Events MIT Dante-Funktionalität (Signalverteilung/"Einsammlung") und "richtigen" Fadern (vor allem für MIC Channels, keine "Rack-Only" Variante).

Dieses Ziel ist schon jetzt erreicht! Das Ding ist wirklich (!) kompakt (Grundfläche: fast genau eine Standard Klappbox), und bietet dafür viele Dinge die sonst nur größere "compact" Versionen der Konsolen mit 19-Zoll und um die 15kg bieten - was objektiv freilich immernoch wenig ist. Vor Allem Dante und ausreichend Kanäle (16 Minimum) sucht man eben in (wirklich) mobilen Geräte oft vergebens...

Pro:
Die wenigen Dinge die ich jedoch schon getestet habe (v.a. Signalverteilung via Dante) liefen auf Anhieb und waren keine Hexerei im Setup - die Bedienung wirkt durchdacht, die Verarbeitung des Gerätes ist sehr ordentlich. Wer schon etwas mit Digitalen Konsolen (01Vxx,..., X32) unterwegs war findet sich zurecht.

Auch hat Yamaha in V3 noch einen 8Ch-Automixer nachgerüstet! (hierzu gab es wohl viele Nachfragen, inkl. der von mir ;-) Firmen die noch (wenigstens etwas) auf Ihre Kunden hören... Chapeau!
...

Con:
- externes Netzteil (sicher der Baugröße geschuldet)
- Die Haptik der Tasten ist anfangs etwas gewöhnungsbedürftig / fühlen sich etwas "teigig" an...
...
...an der Stelle "Luxusprobleme"

Update 04/2025:
Ich habe die DM3 nun bereits auf einigen kleineren VAs eingesetzt und bin durchweg zufrieden. Besonders die Dante Integration ist für mich ein echter Mehrwert (Signalverteilung für Submixe, Fills, Nebenräume), aber natürlich auch die Möglichkeit der Fernsteuerung über APP/DM3 Remote.

Ein klares Manko, ich würde sogar sagen ein Problem, ist für mich das Display... es könnte (viel) heller sein; Gerade beim Einsatz im Freien an sonnigen Tagen (trotz Pavillon drüber) ist das wirklich anstrengend... Da eben alles übes Display läuft. Hier wäre "mehr Bums" ein echter Gewinn... Das eint aber vermutlich alle Mischer (Geräte) mit Displays (mit meinen Laptops habe ich hier auch Probleme). Vielleicht findet sich mal jemand, der ein "SunCover" fürs Display 3D-Druckt, ähnlich wie bei den alten Radargeräten ;) ....das würde ich kaufen.

An die Tasten (siehe oben) gewöhnt man sich. Die Bedienung ist insgesamt intuitiv und viele Features die man sich "wünscht" findet man oft genug nach kurzem Schauen genau dort wo man aus dem Bauch heraus danach sucht.

Der große Pluspunkt (schon oben erwähnt) ist eben immer wieder die Kompaktheit sowie das Gewicht. Gerade wenn man alles selbst transportieren muss/auf/abbaut und darüber hinaus oft genug (zu) wenig Platz für Technik vor Ort vorfindet eine nicht zu unterschätzende "Kleine" ;-)

Ich würde das Ding wieder kaufen!

Update2 05-2025; zum Display Thema... Es gibt in der elektrischen Bucht einen ganz brauchbaren (faltbaren) Sonnenschutz, wenn man danach sucht... "Yamaha DM3 Sun Cover", leider nur aus USA... kann man zusammenlegen, hält mit Magneten am Pult... super Upgrade. Wäre super, wenn es sowas mal bei T gäbe ;-)

Update 10/2025
Ich habe das (feine) Gerät nun schon gut "rumgezerrt" und bleibe bei meiner Aussage: Würde ich wieder kaufen. Es gibt im Prinzip (bis auf die Sache mit dem vlt. etwas zu dunklen Display) an der Konsole nichts "hartes" auszusetzen - das Ding läuft.

Es wäre schön, wenn es mal noch irgendwann einen DeckSaver geben würde, der ist leider nicht verfügbar (wofür T nichts kann).
handling
features
sound
quality
18
2
Report

Report

google translate fr
Unfortunately there was an error. Please try again later.
za
DM3 - un son fantastique et une ergonomie extra
zaltar and the tribe 03.06.2025
Souhaitant remplacer ma vieille 01V, j'ai choisi la DM3. Au déballage elle est petite compacte et légère. C'est très bien. Ensuite, l'écran est très bien conçu. Ergonomie raffinée et efficace !! Tout est pensé pour simplifier la vie. un vrai plaisir à l'utiliser. Bon , évidemment les 400 pages de la documentation font un peu peur au début. Mais Yamaha a fait des tuto très pédagogiques en anglais avec un gars qui parle très lentement pour que l'on comprenne bien . Bravo ! Il faut un temps pour comprendre comment router les aux etc... bref au bout de quelques heures, on y arrive. Un plus : l'enregistrement sur clé USB très facile à faire. Idem pour la réécoute. Une fois branché nos earphone sur les Aux, le mix de chaque musicien est juste facile et parfait. Quel plaisir ! Ensuite on a attaqué les réglages des instruments; des préamplis très performants ! idem pour les 2 dynamiques. Coté EQ c'est génial... de la qualité pro. Il y a des préréglages professionnels pour tout un tas d'instruments, de micros et cela fait gagner beaucoup de temps. Merci Yamaha. Enfin la sortie du mix rend un son extraordinaire. Les effets sont excellents et il nous reste à découvrir nos réglages idéaux peu à peu. Bref, au bout de 8 heures , on a déja un super son pour notre trio. Rien à voir avec la qualité du son de la 01V. Tout est bien meilleur. Et je suis très content de mon achat. Très bonne table numérique. et quel écran !!! un vrai plaisir
handling
features
sound
quality
9
1
Report

Report

google translate cz
Unfortunately there was an error. Please try again later.
Dv
DM3 mazlík
DJ vena 28.09.2025
Je to Malá a mocný Hudební nástroj 😀 Zvučim menší kapely ,obřady, svatby jako DJ. Má velice všestranné využití ! . Dvouleté zkušenosti s tímto DM3 Yamaha mixem to potvrzují .
handling
features
sound
quality
3
0
Report

Report

google translate nl
Unfortunately there was an error. Please try again later.
L
Mooi compact tafeltje
LJRENS 20.10.2025
met deze dm3 kan je kleine bandjes/producties perfect aan

dante erbij is zeker een grote + om makkelijk een stageblok erbij te hangen
handling
features
sound
quality
1
0
Report

Report
