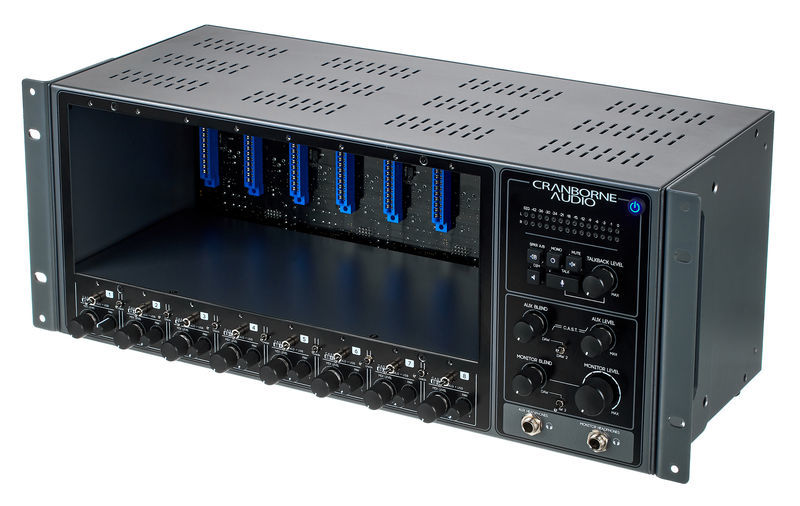

Cranborne Audio 500R8
8-Slot Rack for 500 Series Modules with Integrated USB Audio Interface
- 8 I/O channels with XLR
- USB audio interface with 28 in / 30 out
- Monitor controller
- 8 Channel discrete analogue summing mixer
- Reference AD/DA converter
- Latency-free monitor mixer with volume and pan controls per channel
- 2 Monitor outputs: Speaker A outs & Speaker B outs
- Mono sum, mute, dim and talkback function
- 28-segment LED metering
- additional insert per channel
- individual signal routing
- Bypass switch per channel
- C.A.S.T. system for the transmission of 4 balanced, analogue audio channels via one Cat5 line
- Driver dynamic range: 121 dB (A) to AES17, 20 Hz 20 kHz
- Frequency response: -1dB, 2.2 Hz to > 80 kHz
- THD+N: <0.00032% (-110 dB) @ 4 dB FS, 20 Hz 40 kHz, 1 kHz (A-weighted)
- Dimensions (W x H x D): 481 x 185 x 219 mm
- Weight: 7 kg
|48 V Phantom power||No|
